One of the most frequently asked questions that I get from our readers, is what to do with dust inside a lens and whether it is something to worry about. I decided to write an article on this subject, because lens dust and flecks are a very common issue not only for camera sensors, but also for lenses. When I first discovered dust inside my brand new lens that I only used for a couple of days, I was very disappointed and I remember how I started searching for a solution online in panic mode. If you are frustrated with a similar issue and do not know what to do, keep on reading.
Table of Contents
1) How to Inspect Lens for Dust
So, how can you find out if you have dust inside your lens? Actually, let me rephrase this question – how can you find out how much dust you have inside your lens? Because even brand new lenses normally do have some foreign particles in between lens elements. A quick visual inspection of the lens front will often reveal large dust particles behind the first lens element, if there are any. Just make sure that the front is thoroughly cleaned beforehand and any protective filters are removed. Look straight and then inspect the lens at an angle and you might see some dust behind the front glass element. Now if you really want to see dust, and I promise you will, here is the best way to do it. First, find a very bright LED flashlight. You can find those pretty much anywhere nowadays, even in a grocery store. Next, you will need to open up the lens aperture (the lens obviously needs to be dismounted from the camera, rear lens cap should be removed). If you have an older lens with an aperture ring, you just need to set the aperture ring to the smallest value (which is the largest aperture) like f/1.4 or f/2.8 and you are ready to go. If you have a modern lens like Nikon “G” type AF-S lenses, then you will need to push up a small metal lever to open the lens aperture as seen below. To keep the lens aperture open, you will need to keep pushing it with one finger:

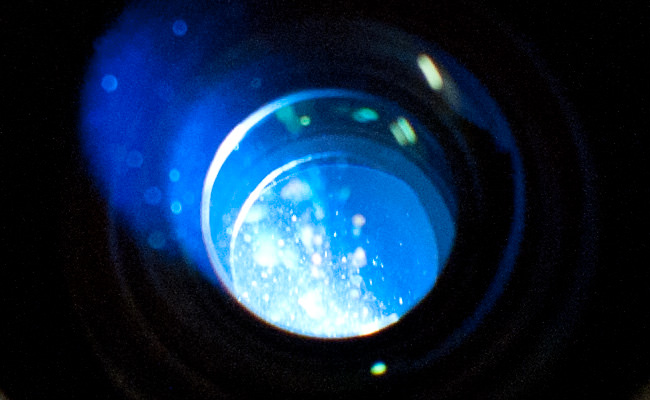

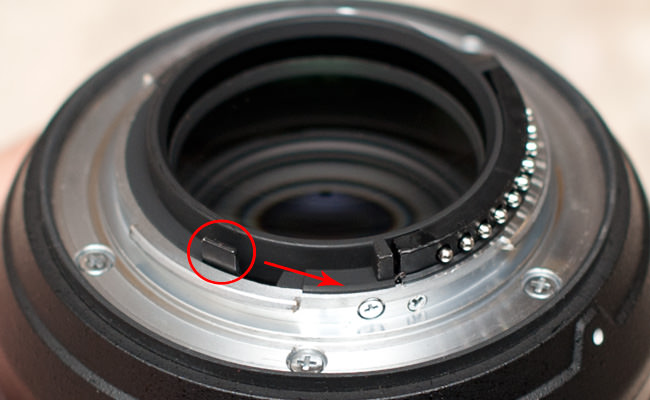

Once the lens aperture is fully open, turn on the flashlight and point it towards the rear of the lens with the front lens cap off. Do this in a dim indoor environment with lights turned off. Look at the front element of the lens at an angle and see how much dust you have inside the lens. If you have never seen any dust, you will certainly see it now. Better yet, now you can see dust in between pretty much every lens element, because it will be visible when a bright source of light goes through the lens. Now here is a word of warning – as I have pointed before, don’t be surprised to see dust even if you have just bought your lens. Some of those particles might be dust, others might be small bubbles and other glass imperfections. Why? You guessed it right, no lens is perfect! But don’t panic, every lens I own has dust in it, even the brand new Nikon 35mm f/1.4G prime that I have recently received from B&H. Take a look at how much dust my Nikon 24-70mm f/2.8G accumulated over the years of abuse:

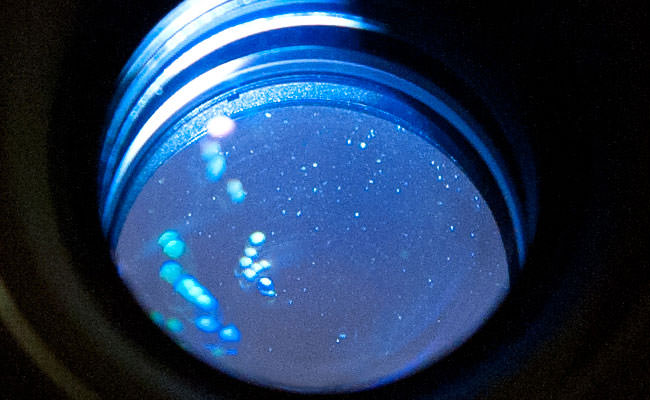

And here is how the Nikon 50mm f/1.4G looks:
Looks scary, doesn’t it? But I don’t really care, because both lenses produce excellent results and I am sure will continue to do so for many more years.
2) How and Why Lenses Get Dust
You might be wondering how and why lenses get dust inside. Let me explain a couple of things about lenses. Every time a lens focuses or it is zoomed in and out, it “breathes”. And no, I am not talking about the effect of lens “breathing”, when an image appears smaller or bigger when focus is adjusted – I am talking about the process of inhaling and exhaling. Lenses have to breathe, due to lens elements constantly moving inside them when focus is adjusted and/or when zooming takes place. Remember what happens with pressure inside a closed plastic container? If you try to reduce the container size, the pressure inside the container will only let you reduce it to a certain level before it pushes back. A simple concept of air pressure in physics. Now take the same concept and apply it to lenses. What would happen if lenses were completely sealed from all sides? You would only be able to zoom in a little before the lens would force you back to its original state due to pressure, especially on lenses that extend in size. A similar thing would happen with lens focus. Hence, there was no other way for camera manufacturers to design lenses – lenses with moving lens elements must inhale and exhale air. Some lenses are better than others in managing the air flow. While some expensive lenses are sealed against dust (which does not fully stop dust from entering the lens) and will only suck the air in and out of the camera chamber, cheaper consumer zoom lenses are the worst in this regard – they might suck the outside air and blow it out right into the camera chamber. Let’s take a look at which lenses are worse than others in handling dust.
3) Lenses Prone to Dust
As I have explained above, some lenses are more prone to dust than others. Here is the list of lens types that are more prone to dust than others, in the order of “worst to best”:
- Consumer zoom lenses with extending barrels – examples: Nikon 18-55mm f/3.5-5.6G VR DX, Canon 18-55mm f/3.5-5.6 IS. Most cheap plastic consumer lenses have no weather sealing of any kind, including rubber gaskets that wrap around the camera mount. In very dusty environments, they will suck the outside air into the lens and then into the camera chamber.
- Professional zoom lenses with extending barrels – examples: Nikon 24-120mm f/4 VR, Canon 24-105mm f/4L IS. Cheaper pro-level lenses with Red (Canon) and Gold (Nikon) rings often have similar weather protection as expensive pro-level zooms, but are generally more prone to dust due to significant changes in lens barrel length. Most come with rubber gaskets on the lens mount to prevent dust from entering the camera chamber through the lens mount.
- Expensive/top-of-the-line professional zoom lenses with extending barrels – examples: Nikon 24-70mm f/2.8G, Canon 24-70mm f/2.8L. Top-of-the-line professional zoom lenses typically have better weather sealing all around the lens. Rubber gaskets are always included and other rubber seals are present in other parts of the lens such as zoom ring, focus ring, switches, etc.
- Professional zoom lenses with fixed barrels – examples: Nikon 70-200mm f/2.8G VR II, Canon 70-200mm f/2.8L IS. Lenses that do not change in barrel size are generally better against dust and moisture. Since nothing moves, there are fewer places where dust can accumulate and then make into the lens. Rubber gaskets and other rubber seals are also present in all areas where dust can potentially enter the lens.
- Prime lenses with extending front element – examples: Nikon 50mm f/1.4D, Canon 50mm f/1.4 USM. Prime lenses are generally less prone to dust than zoom lenses, because fewer parts move inside them. Prime lenses with moving front element that changes in length as you focus are generally better than zoom lenses, but dust can still make it into the lens through the front. Rubber gasket on the mount is sometimes absent (especially on older models), which can also contribute to dust making it into the camera chamber and the lens.
- Prime lenses with fixed barrels – examples: Nikon 35mm f/1.8G, Nikon 24mm f/1.4G, Canon 24mm f/1.4L II. Prime lenses with non-extending barrels are typically protected best against dust. Some of the prime lenses with rear focus feature (such as Nikon 24mm f/1.4G and Nikon 35mm f/1.4G) might have a moving rear lens element as you focus, while others have a fixed glass element that never moves. The latter is typically better than the former. Many of the modern prime models are designed with rubber gaskets around the lens mount and high-end models have additional weather sealing in other parts of the lens.
As you can see, prime lenses are generally better protected against dust than zoom lenses. However, there are exceptions, where some primes are worse than some of the zooms in terms of handling dust and moisture.
4) What to do with lens dust
Once you spot lens dust, what should you do with it? The answer is – nothing. Don’t worry about it and just keep on shooting, concentrating on creating great images. As I have explained above, lens dust is a normal fact of life, just like dust on your camera sensor. Even if you take a good care of your gear on a daily basis, you will eventually end up with dust in your lenses and cameras, guaranteed. You can certainly minimize the amount of dust getting into your gear by storing it properly and performing regular cleaning and maintenance (which I will cover in an upcoming video tutorial), but you cannot fully prevent it from happening. Dust is inevitable and it does get into camera gear one way or another, so you should not be sweating over it if you have it. Try an experiment – come close to a dirty window in your house and look outside. When your eyes focus on the outside, can you see the dust or dirt on your window with your eyes? No, unless the dirt particles are huge. The same thing happens inside the lens, if there are small dust particles, it is not a big deal. So take a deep breath, chillax and stop worrying about dust.
The only case where you might need to call your lens manufacturer, is if you spot an abnormally large spec of dust more than several millimeters in size that moves when you rotate the lens. There are cases, when particles break off inside lenses, typically after lenses are dropped/damaged.
If you are a very brave soul, you can try removing dust from your lenses by doing something like this. However, there is a high risk of potential damage, so do it at your own risk!
5) How to remove lens dust
Never, under any circumstances try to remove dust from inside lenses yourself. Disassembling your lens will not only void the warranty, but I can almost guarantee that you will not be able to assemble it back the way it was yourself. If large amounts of dust are heavily affecting your images and you have a very low level of contrast, call the lens manufacturer and find out if they can clean the lens interior and how much it will cost. Your normal lens warranty will NOT include disassembling the lens and cleaning its interior, so you will have to pay a hefty sum for that kind of service. In many cases, you are better off buying a new lens than trying to get an old one fixed. So, once again, never attempt to do this yourself and certainly never let a non-professional attempt to do it for you.
6) Minimizing dust and fungus
Shooting in relatively clean environments, properly storing your gear in a cool, dry place and taking care of it by performing regular cleanup and maintenance is a good way to eliminate fungus and minimize the amount of dust that ends up on and in your gear.
In the old days of the Olympus OM-1 35mm film cameras, I was a Cave Expeditions Photographer. My cameras and lenses were regularly exposed to water, fine silt and mud, inside deep caverns. Quite literally, after every expedition, I’d have to flush everything through with clean tap water. Then with distilled water, followed by placing my kit on a hot radiator (orientation so water ran to the sides of the lenses) and leave to dry overnight. Surprisingly, I very seldom had any problems or need to re-wash anything. As your article says, you should worry little about a small amount of contamination in your lenses.
Of course, I’m talking about old style manual lenses without any electrical components. With modern digital camera lenses, you might not be so fortunate, but even so, in extremis, I wouldn’t be surprised if they could be flushed through and carefully dried; although I’m not recommending it.
Love it, i have purchased a Sigma 50-500mm for my Pentax K3, eBay purchase, after opening the package and walking into the sunlight (bright sun day) i noticed dust frustrated i contacted the seller who claimed it was dust free, he agreed to reimburse me 10% of the purchase…NICE! Still being concerned about the dust I just so happened upon this info. Much apreciated and now I’m smater for reading it. BTW, lens takes amazing photos!
Hi All, I have a big issue where my lens is practically unusable.
I think it may be because of a large collection of dust in the centre of the front element (inside), it makes the centre of my images ghosty/blurry.
I think it’s because of the dust scattering/affecting the sunlight, but I could be wrong…
I’ve uploaded some photos here: flic.kr/s/aHsmWccNRi
What do you guys think?
If the lens is proper fooked, there are 3 things you can try – with care:
Remove the lens cover and any filters to give as much access as possible, open the aperture fully for maximum surface area…
Try the following steps with the lens: attached, fully retracted – half extended – fully extended – and also sweep the focus as you do it (to tweak the air pressure between the lenses). Then repeat with the entire process with the lens detached from the camera body if not cleared. Repeat the process from the front and the back end of the lens.
1- a compressed-air keyboard cleaner. Fire the air through the nozzle into the openings.
2- a keyboard vacuum cleaner and offer it up to all the crevasses in the lens housing and camera body. You can use your fingers to direct the suction and also to gently plug any leaks.
3- introduce static electricity to the lens glass surrounding the dirt – sounds ridiculous but in practice it may be enough to shift the dust enough to make the lens usable again. You can use either a balloon (rub it on some carpet/jumper etc until it can lift your hair).
4- replace both of the dust covers, sit the lens in a bowl full of rice in a dry room – the hygroscopic action of the rice husks will draw out any moisture trapped inside the lens and make the dust less attracted to the lens surface – repeat previous steps.
5- buy a disposable sonic toothbrush – loosely run the handle-end of the toothbrush over the entire lens-casing. The vibrations are not enough to damage the lens but may be enough to unseat the dust from the surface. Adjust your hold of the toothbrush so you are able to hear the plastic/rubberised toothbrush handle tapping against the lens housing – not just the muffled vibration of the toothbrush motor. EG: Loose finger-pressure on the sides of toothbrush head – and gravity pushing the toothbrush handle onto the lens casing is perfect for this.
While doing this, periodically take a photo and see if there is any difference – if so, keep going – with patience it will clear. If it becomes apparent that nothing is changing at all, I doubt you’ll be able to clear it without the lens being dismantled to some degree and cleaned internally.
*Obviously take care not to damage the body, casing, housing or scratch the lens – otherwise you will be worse off than when you started.
ok so my problem is that an animal entered the lens inside, it seems to be kinda like a very very very small spider, but the problem is that it does affect the picture, it gets something black and blurred in the pic, it’s honestly so annoying
easy, swallow a bird to catch the spider
I have an older cannon 75-300 mm lens that needs to be cleaned inside! The youtube videos show screws on top while mine has captive screws on the side that loosen, but wont come out! Please tell me how to get the lens out so I can clean it.
thank you a lot for this tip!
I was just thinking to return an OB for maintenance but I’ll wait to see if I really have a decrease in image quality
one more lesson learned
about opening lens, I tried this on a cheap IP-cam lens that is a lot easier (and safer) to manage, and I found that a vacuum works pretty well, but you are lucky indeed if some new powder doesn’t enter after you have removed the old one…
Thank you so much for this! You saved me untold hours of research and freaking out.
Thank you for this useful article
unfortunately before reading this post, I opened the optical glass in front of the nikkor 50mm f1.4 G lens and after removing the dust behind it, I repositioned the optical glass and closed the lens. But, unfortunately, my photos are blurry and I think this problem has been created due to the opening of the lens. Please guide what to do.
Sir, I want to disassemble my Tamron 150-600mm lens’ outermost element having fungus. Can you please guide me ?
