This is an in-depth review of the Sigma 120-300mm f/2.8 DG OS HSM Sport, a high-end super telephoto lens with a versatile zoom range and a wide constant aperture of f/2.8, designed for wildlife, sports and portrait photographers. This is the third iteration of the lens. Its predecessor, the Sigma 120-300mm f/2.8 EX DG OS APO HSM was released back in 2005 with identical optical design. What has changed, is the exterior make and appearance of the lens (along with the tripod collar and tripod foot), the new rigorous quality control that Sigma has implemented on its new lines of high quality lenses, and the ability to attach a USB dock for fine tuning the autofocus operation of the lens. In this review, I will go over the technical specifications of the lens, talk about its optical features and performance with and without teleconverters, and compare it to other super telephoto lenses like Nikon 200-400mm f/4G VR and Nikon 300mm f/2.8G VR II.
The Sigma 120-300mm f/2.8 is a very interesting lens, not only because of its versatile zoom range that is not found on any other lens on the market, but also because of its large constant aperture of f/2.8. To date, no other manufacturer has produced a comparable lens. Nikon has a 200-400mm f/4 constant aperture superzoom in its arsenal that costs $6,800 USD, while Canon offers a 200-400mm f/4 lens with a 1.4x built-in teleconverter, at a much heftier price of $11,800. Both offer more reach, but sacrifice 1 full stop of light. And once you compare them to the Sigma 120-300mm f/2.8, which becomes a 168-420mm f/4 lens with a 1.4x teleconverter, you will see why it becomes such an attractive choice for many, especially with its current market price of $3,600.
1) Lens Specifications
- Large aperture with great zoom range
- Includes technology such as a HSM & OS
- Accessories include: Lens Hood (LH1220-01) & Carrying Case.
- Mounts: Sigma, Nikon, Canon
- Focal Length: 120-300mm
- Maximum Aperture: f/2.8
- Minimum Aperture f/22
- Maximum Angle of View: 20.4° – 8.2°
- Maximum Reproduction Ratio: 1:8.1
- Lens Elements: 23
- Lens Groups: 18
- Image Stabilization: Yes
- Diaphragm Blades: 9
- Distance Information: Yes
- FLD Glass Elements: 2
- SLD Glass Elements: 1
- Autofocus: Yes
- HSM (Hyper Sonic Motor): Yes
- Internal Focusing: Yes
- Minimum Focus Distance: 1.50m
- Focus Mode: Auto, Manual
- Filter Size: 105mm
- Accepts Filter Type: Screw-on
- Dimensions (Approx.): 124 x 291mm
- Weight (Approx.): 3.39 kg
- Supplied Accessories: Lens Hood (LH1220-01) & Carrying Case
Detailed specifications for the lens, along with an MTF chart and other useful data can be found in our lens database.
2) Lens Handling
My number one complaint and without a doubt, the biggest issue with this lens, is its handling. After spending some time with the lens and noting handling inconveniences, I had our wildlife guru Tom Redd shoot with the lens for a couple of weeks and he provided plenty of negative feedback to me, noting the same issues that I encountered with the lens. Next, our friend John Lawson, another superb wildlife photographer right here in Denver also had a chance to play with the lens while I was busy testing his Nikon 600mm f/4G VR lens. He also hated the handling of the lens and told me a number of things that he felt were wrong with it. Below is a compilation of feedback from three different photographers.
First, if you are a Nikon shooter, you need to note that the focus and zoom rings are backwards – they are configured to rotate in the opposite direction to Nikon super telephoto lenses. Some may regard this as a non-issue, but for a person that is used to the Nikon way, it is a problem. This will be seen as a mild annoyance for some and a critical issue for others. When shooting wildlife or sports where things are happening quickly, I can imagine a situation, where I will miss a shot because I focused in the wrong direction and by the time I corrected, the moment had passed. Despite the conveniences of autofocus systems today, AF is not always 100% reliable, so I do rely on manual focus operation quite a bit at times. Thanks to the focus override feature of modern lenses, tweaking the focus ring while shooting has been a great convenience. And having been used to the Nikon super telephoto lenses that all rotate the same way, it was hard to get used to rotating the focus ring in the opposite direction. And remember that this applies to the zoom ring as well. Imagine trying to capture a bird in flight or a football player running down the field. You need to pan with the subject as well as zoom to maintain correct framing. In the heat of the moment, if you zoom in the wrong direction you again have the potential to miss the shot. Another aspect of this is the message that Sigma is sending to Nikon shooters (I doubt Canon shooters will care). Seems as though they made a decision that it is not particularly important to cater to the Nikon standard. If they wish to be taken seriously by pros and serious amateur photographers, then I wonder why they would take a shortcut like this. Obviously, it is easier and less costly to have just a single configuration, but I think it is a bad move on their part.
The focus and zoom rings are backwards – again. This time it’s the fore-aft arrangement – zoom toward the front and focus toward the back of the lens. To me this is “wrong”, although I know there is no actual right or wrong way. It’s just that my other Nikkor pro zooms have the focus ring toward the front of the lens. The particular issue I encountered with this when shooting the 120-300 was that when hand-holding the lens, my left hand would cradle the lens and the palm of my hand would naturally rest against the focus ring. With the full-time manual focus override, I found I was inadvertently shifting focus with my palm and fighting against my attempts to autofocus. This happened mostly when operating the zoom ring, because my hand would rotate in relation to the lens barrel which resulted in rotation of the focus ring. This is a case of the weight of the lens working against you indirectly. Because there is a lot of mass to support (more on this below), it feels like you really need to use your whole hand for support rather than just half your hand or perhaps just your fingers. On a positive note, the focus ring is very smooth to rotate and the zoom ring felt a little stiff at first, but got better overtime. Just like on Nikkor lenses, once you reach close or far limits, the focus ring will continue to rotate. The zoom ring, on the other hand, has a hard stop at both 120mm and 300mm, which is consistent with what you see on the Nikon 200-400mm f/4G VR.
Another issue, is that the mass of the lens shifts when zooming. Every time I mount a lens on my Gimbal head I balance it by adjusting the fore/aft position of the lens foot in the clamp. This means that when my hands are off the lens and camera, it is self-centering (if the tilt adjustment knob is loose). What I noticed with the Sigma 120-300 f/2.8, is that if I centered the lens when zoomed to 300 and then zoomed out to 120, the balance shifted to the front of the lens causing it to pitch downward. And of course the opposite happens if you balance at 120 and then zoom to 300. It makes sense that it would do that, since the optical elements inside the lens shift, but it is definitely very annoying. I noticed this when I was out in the field shooting and was scratching my head wondering how it was that I had never noticed this problem with my Nikon 200-400 f/4G VR. I tested it when I got home and the reason I hadn’t noticed it with the 200-400, is because the problem does not exist with that lens. It remains balanced through the full zoom range. Did Nikon just get lucky with their design or did they take deliberate steps to avoid this issue? Who knows? But I’d be willing to bet the new Canon 200-400 also does not have this problem.
The lens collar is a nightmare to use – rotation is anything but smooth. Shifting from horizontal to vertical was quite painful, especially when compared to Nikkor super teles. Additionally, while it is a nice feature that the collar/foot assembly can be removed (Nikon 200-400 cannot be removed), it cannot be done with a body attached, which significantly diminishes the convenience of that feature. And because the rotation of the collar is related to the removal of the collar, I was constantly worried about it coming off while shooting and shifting between horizontal and vertical orientation, although that was possibly just down to paranoia and unfamiliarity on my part. If owned this lens, I would be looking to RRS or Kirk to manufacture a replacement collar to remedy these issues. Speaking of the tripod foot, why couldn’t Sigma keep the tripod foot from the old 120-300mm lens? That one had the same foot as the Sigma 50-500mm, which has a slight angle/tilt on the bottom of the foot, allowing to be mounted on an Arca-Swiss head. It is not a very secure mount, but if you do it tight enough, it can work out OK. The new tripod foot is very thick and big in comparison, so the only way to attach it to Arca-Swiss is to either use a long adapter, or replace the foot completely. Personally, I would do the latter.
And although the hood is made of a special Thermally Stable Composite material, judging by its weight, it feels like it is no different than metal. Sure it looks and feels nice, but the lens itself is already weighty, so why add to that with such a heavy hood? Nikon makes all hoods for its high-end lenses out of carbon fiber, which is very sturdy and feels like nothing in comparison. I also think that the attachment/removal of the hood is unnecessarily complicated – you have to align the hood to a particular part of the lens in order to be able to attach it. In comparison, Nikon telephoto hoods go on in any orientation – simple and functional.
Another complaint is the lens cap and the filter thread the cap attaches to. While it is nice to have a lens cap right on the front of the lens barrel, attaching the cap with the hood on is a pain. It was such an annoyance for me, that I simply removed the cap after a couple of failed attempts. And why on earth design a lens with a 105mm filter thread? Even the cheapest polarizing filter (which happens to be from Sigma) will cost $150 and if you want a really good one, you will have to invest several hundred more. Nikon and Canon came up with a much better way, which is to use “slip-in” / “drop-in” filters that mount easily, don’t add to the weight and cost very little.
Let’s talk about the weight issue now. At 3.39 kilos, this is not a light lens. And it is expected, given its fast aperture of f/2.8. The Nikon 400mm f/2.8G VR is also a monster of a lens for that very reason. However, this is no 400mm and the lens barrel is nowhere as long in comparison. So the central issue with the weight, is the fact that the lens is too heavy for its compact size. I have shot with the 500mm f/4G VR quite a bit (which in my opinion is the best hand-holdable Nikkor super telephoto) and while it is a slightly heavier lens (by about 500 grams), it is much easier to hand-hold.
Not all is bad though. The all-metal lens barrel is surely impressive, making it feel like you are shooting a pro lens. There are a number of useful switches on the side of the lens for additional tweaking. Aside from the typical autofocus / manual focus switch, there is a very useful focus limiter switch that allows going from full rotation to 10m-∞, and from close focus to 10m for macro shots, which is great (the 120-300mm f/2.8 EX DG HSM did not have one). There is a separate switch for setting two different optical stabilization modes like OS 1 and OS 2 (more on image stabilization below).

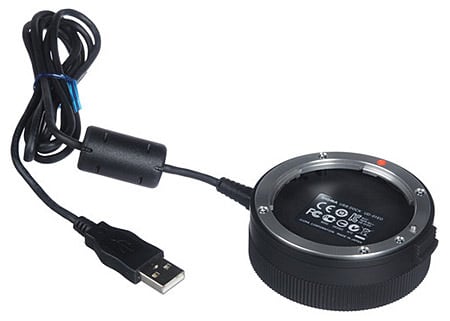

The last switch is for Custom modes that can be tweaked by a USB dock. The USB dock is a new feature that Sigma is only offering with its new lines of Art, Sport and Contemporary lenses (the 120-300mm is in the Sport category). This dock allows for a number of things, including performing firmware upgrades, calibrating autofocus behavior and setting custom settings. In the case of the Sigma 120-300mm, there are two separate programmable custom modes. Basically, you can create a custom profile with different autofocus speed settings (speed vs accuracy priority), optical stabilization and focus limiter. For example, you could set the first Custom switch for fast autofocus, no optical stabilization and focus limiter set to 10m to infinity for photographing fast action at very fast shutter speeds, while the second switch can be programmed for more accurate autofocus, OS and a full range of focusing for other situations. This is great and something very unique to Sigma – neither Nikon, nor Canon allow this much customization on their lines of lenses.
As for weather sealing, it is also nice that Sigma is finally including a rubber gasket at the lens mount to prevent dust from entering the camera body and the lens. The gasket is pretty short though, so I hope Sigma will make it a tad longer in the future, similar to what Nikon does to make it more useful. The lens barrel itself is nicely made and will take on some beating and weather abuse. I am not sure if it will withstand a lot of rain, but I have used it in light rain without any problems. I believe this is one of the first Sigma lenses to get weather sealing (along with the new 12-24mm and 150mm f/2.8 macro lenses).
3) Focus Breathing
Unfortunately, due to the optical design of this lens, it suffers from focus breathing. When focused at a target about 20 feet away at 300mm, the lens is about 5 feet shorter than the Nikon 300mm f/2.8G VR II. That’s a pretty big difference in reach, I would say roughly equivalent to 80-100mm of focal length loss at close distances. Not an issue for shooting distant subjects, but definitely worth considering for photographing at shorter ranges.
4) Autofocus Speed and Accuracy
In its normal autofocus mode, the Sigma 120-300mm f/2.8 is rather slow in terms of autofocus when compared to the Nikkor super telephoto lenses. That’s because Sigma by default uses accuracy priority, which negatively affects the AF speed, but greatly increases the accuracy. You can change this behavior with a USB dock and set one of the custom modes on the lens to speed priority, in which case the speed of the lens will greatly increase, but the accuracy will drop. For this review, I did not bother with customizing the focus behavior, since I did not want to compromise the accuracy. While autofocus speed was indeed not impressive, the AF accuracy seemed to be quite good, even with Sigma’s 1.4x and 2.0x teleconverters attached. Interestingly, the lens did not hunt a lot with the 2.0x teleconverter attached, even in low light situations.
The Hypersonic Motor (HSM) on the lens is very quiet – you almost cannot hear the lens acquiring focus. I am so used to Nikon’s not-so-silent Silent Wave Motor, that at first I thought that autofocus was not working. Sigma definitely did a good job there. The first versions of the Sigma 120-300mm were much worse in terms of autofocus speed and accuracy, so there is definitely plenty of improvement in that area. The speed seems to be the bottleneck, especially for very fast action and quick AF changes. If you have used professional Nikkor lenses in the past, you will surely notice the difference in AF acquisition speed. Once the subject is locked though, the tracking ability of the lens is excellent. If you are planning to use the lens for birding, I would seriously consider programming one of the custom switches for speed priority and experiment with it.
5) Lens Sharpness and Contrast
As I have pointed out before, the Sigma 120-300mm f/2.8 DG OS HSM is identical to its predecessor optically. I had both versions of the lens for testing and after a couple of tests at different focal lengths, I was able to confirm that both produced about the same Imatest figures. There was a very slight variance in performance (less than 3% delta), which shows that Sigma has been doing a much better job in terms of quality assurance. The older EX version had a slight back focus issue, but it was not a big deal, as I was able to correct it with AF Fine Tune (see my article on lens calibration). The nice thing about the new 120-300mm, is that you can fine tune it with the USB dock without having to do it in your camera.
So how did the Sigma 120-300mm f/2.8 DG OS HSM perform optically? Let’s take a look at some Imatest charts from different focal lengths:
At 120mm, the lens is at its weakest spot in terms of sharpness. The wide open performance at f/2.8 is below average and the corners are quite weak. Stopping down to f/4 improves the sharpness greatly and stopping down to f/5.6 yields maximum performance for the center and the mid-frame. The corners are the best at f/8 and diffraction kicks in at f/11 on the D800E, resulting in decreased performance at smaller apertures.
The performance of the lens improves as you zoom in. At 150mm, the lens is better optically than at 120mm throughout the frame. Performance at f/2.8 is still rather weak, but gets very strong at f/5.6, reaching very high resolution figures.
And it gets even better at 200mm, with excellent resolution figures at f/5.6 and increased mid-frame performance. The corners are a little weaker though.
At the longest end of the zoom range, the performance of the lens drops a little at large apertures, but picks up again at f/5.6. The corners suffer even more at the longest end, reaching acceptable levels only at f/8.
Overall, the Sigma 120-300mm f/2.8 seems to be a good performer when stopped down. Unfortunately, its performance is not very impressive wide open, especially in the corners. The sweet spot of the lens seems to be at f/5.6 at all focal lengths.
Contrast-wise, the Sigma 120-300mm f/2.8 is excellent. Just make sure to keep that long lens hood on at all times, since contract might decrease greatly when sun rays reach the front lens element. The lens renders colors beautifully, so no complaints there either.
6) Sigma 120-300mm f/2.8 Performance with Sigma 1.4x Teleconverter
One of my personal annoyances with third party lenses, is the fact that they cannot work well with Nikon teleconverters. In the case of the Sigma 120-300mm f/2.8 DG OS HSM, none of the Nikon TCs would even mount on the lens. In order to test the lens thoroughly, I had to get both the 1.4x and the 2.0x Sigma teleconverters. Since teleconverters are used to extend the focal length of lenses, I only tested the Sigma 120-300mm at the longest end of the range (the lens becomes a 168-420mm f/4 lens with the 1.4x TC). Let’s take a look at how the lens performs with the 1.4x Sigma teleconverter:
As you can see, there is definitely a visible drop in sharpness across the frame. Once again, the wide open performance of the lens at f/4 is rather weak, with f/5.6 producing the best sharpness in the center and mid-frame. Corners peak at f/8 and diffraction kicks in at f/11.
If you would like to find out more about the performance of this teleconverter, check out my Sigma 1.4x teleconverter review.
7) Sigma 120-300mm f/2.8 Performance with Sigma 2.0x Teleconverter
The Sigma 2.0x teleconverter extends the range of the lens to 600mm, making it a versatile 240-600mm f/5.6 lens. Let’s take a look at how the lens performed optically with the longest available teleconverter from Sigma at 600mm:
As expected, there is a rather significant drop in sharpness with the 2x teleconverter. The wide open performance at f/5.6 is very weak and the lens should be stopped down to f/8 to get good center performance. As I have noted earlier though, the lens can actually acquire focus with the 2x teleconverter even in low light situations (tested on the Nikon D3s camera body), which can be useful for situations when you need the maximum reach and working AF. Keep in mind that autofocus accuracy surely suffers and there is a visible drop in contrast though, which is again expected from a 2x teleconverter.
If you would like to find out more about the performance of this teleconverter, check out my Sigma 2.0x teleconverter review.
One of the strengths of long telephoto lenses is the beautiful, creamy bokeh they are able to produce. On top of that, due to the shallow depth of field, subjects can be isolated very effectively, resulting in very smooth backgrounds. Thanks to the wide maximum aperture of f/2.8, the Sigma 120-300mm f/2.8 is capable of producing very good to excellent bokeh. Sure, critical sharpness might not be there, but if you want a great looking bokeh and you are ready to compromise on sharpness a little, then set the lens to f/2.8 and shoot away. And when you need more depth of field for close subjects, stop the lens down to f/4 and you will still get beautiful background highlights.
9) Vignetting / Light Falloff
The Sigma 120-300mm f/2.8 DG OS HSM shows some vignetting at f/2.8 at all focal lengths. Stopping down to f/4 improves vignetting quite a bit and f/5.6 brings it down to very low levels. Looks like vignetting is at its worst at the longest end of the zoom range. Take a look at the following chart that summarizes my findings:
And here is the visualization of the worst case scenario at 300mm:
10) Ghosting and Flare
The large and long hood on the Sigma 120-300mm f/2.8 is there for a reason. Most long-range telephoto lenses, including this one, do not perform well when shot against a bright light source. So, if you shoot against the sun, you might get some large, nasty flares and plenty of ghosting, which is quite normal. In addition, a bright source of light will surely decrease the contrast of the lens as well, so keep that in mind.
Distortion is practically non-existent at the shortest end of the range, but picks up as you zoom in, in the form of pincushion distortion. It is at its strongest level at 300mm, at around 1.13%. Distortion is generally not a problem, because it can be easily fixed in Photoshop or Lightroom using the Lens Corrections module.
12) Image / Optical Stabilization
When it comes to optical stabilization, the Sigma 120-300mm f/2.8 once again shares exactly the same stabilization system as the one found on its predecessor. According to Sigma, there should be 4 stops of shutter speed compensation, similar to what Nikon claims for its Vibration Reduction II (VR II) system. The Sigma 120-300mm performed quite well with OS turned on and while I cannot say that I was able to get sharp images at 4 stops less than the focal length of the lens, it was still pretty good at around 3 stops. In terms of keepers, I would say the lens yields comparable results to Nikkor lenses with stabilization, so it is a pretty solid system in my opinion.
Sigma comes with two modes for optical stabilization – Mode 1 for normal shooting and Mode 2 for panning. I did not play much with the panning mode, although some might find it useful for shots involving motion. Another cool feature of the 120-300mm, is the fact that you can actually customize viewfinder view modes for optical stabilization using the USB dock. There are three modes to choose from: Dynamic View Mode, Standard and Moderate View Mode. These modes allow you to fine-tune the way stabilization impacts what you see in the viewfinder.
Let’s now move on to the good stuff – Comparisons to other super telephoto lenses.
13) Compared to Nikon 300mm f/2.8G VR II
Let’s see how the lens compares optically to the superb Nikon 300mm f/2.8G VR II at 300mm:
The Nikon 300mm f/2.8G VR II is an insanely sharp lens. There is simply no comparison between the two, especially at the maximum aperture of f/2.8. Even the corners of the Nikon 300mm f/2.8 look better than the center of the Sigma 120-300mm. Stopped down to f/5.6, the Sigma 120-300mm gets very close in the center, but still significantly worse everywhere else.
Now let’s take a look at how both lenses perform at 420mm (with 1.4x teleconverters):
Once again, the Nikon 300mm f/2.8G VR II is clearly superior. Its mid-frame and corner performance is impressive, even with a teleconverter attached. The Sigma 120-300mm f/2.8 gets very close in the center at f/5.6, but it suffers greatly everywhere else.
The last comparison is to take a look at both lenses with a 2x teleconverter. Here is the comparison:
Both lenses suffer quite a bit with 2x teleconverters. However, the Nikon 300mm f/2.8G VR II does quite well in comparison wide open. At f/8, both lenses resolve about the same amount of detail in the center, but the Sigma 120-300mm does much worse in the mid-frame and the corners.
14) Compared to Nikon 200-400mm f/4G VR
I have been shooting with the Nikon 200-400mm f/4G VR for a number of years now. It is a very versatile lens and it works very well with a Nikon 1.4x teleconverter. Let’s take a look at how the two lenses compare optically at 300mm:
My 6+ years old beat up 200-400mm is optically inferior to the Sigma 120-300mm f/2.8 at f/4 and smaller. Its corner performance is pretty good, but the Sigma 120-300mm clearly looks better in the center.
Let’s see what happens when we compare both at 400mm. Obviously, the Sigma 120-300mm cannot reach 400mm, but we can compare its performance at 420mm, with the 1.4x Sigma extender:
The sharpness difference here is pretty clear – the Nikon 200-400mm f/4G VR is much sharper wide open than the Sigma 120-300mm f/2.8. Stopped down, the Sigma 120-300mm gets better, but still cannot get close to what the Nikon is able to resolve across the frame. This basically shows that the Nikon 200-400mm f/4G VR is still a better option for reach than the Sigma. However, at almost twice in price, one has to wonder if it is even worth it. Personally, I would opt for the Nikon 300mm f/2.8G VR II with teleconverters if I wanted to get the best performance at the 400mm range. Obviously, it is not as versatile of a tool for photographing bears in close proximity in Alaska, but it is still a great choice for everything else.
After using the Sigma 120-300mm f/2.8 DG OS HSM for about two months, I knew that I wanted to say quite a bit about it, particularly on its few strengths and many weaknesses. To me, it feels like Sigma has taken a shortcut with the 120-300mm f/2.8, simply redesigning the lens barrel and relabeling it as a new “Sport” lens, as if it is a completely different lens. It turns out that all we got was exactly the same lens in terms of optics as its predecessor, the Sigma 120-300mm f/2.8 EX DG OS HSM, even with identical optical stabilization system, plus a pound of extra weight. Sure, the ability of using a USB dock for fine tuning the lens is great, all those new custom switches and options look great, and Sigma’s new quality assurance program is probably much better now, but are they all worth the $1100 price difference? For me, the answer is a clear “No”.
Despite its impressive optical performance, the lens suffers from a number of serious handling issues. I won’t repeat them all again here, since I covered that in great detail earlier in the review. However, it is worth pointing out that the Sigma 120-300mm f/2.8 handles terribly for a Nikon shooter and its weight distribution and balance are just bad when compared to other super telephoto lenses. To me, the Nikon 500mm f/4G VR handles much better in comparison, despite being a slightly heavier lens.
Overall, for anyone looking at potentially purchasing the Sigma 120-300mm f/2.8 DG OS HSM, I would recommend to take a serious look at its predecessor instead. It shares exactly the same optics and optical stabilization technology, weighs a pound lighter and at its current price of $2,499, it is a great bargain.
16) Where to buy and availability
You can order your copy of the Sigma 120-300mm f/2.8 DG OS HSM lens at B&H for $3,599 (as of 09/08/2013).
17) More Image Samples
All Images Copyright © Nasim Mansurov, All Rights Reserved. Copying or reproduction is not permitted without written permission from the author.
Sigma 120-300mm f/2.8 DG OS HSM
- Optical Performance
- Bokeh Quality
- Build Quality
- Focus Speed and Accuracy
- Image Stabilization
- Size and Weight
Photography Life Overall Rating
