Arca Swiss’s “Quick Link Set” is a duo of lightweight plates that go between your tripod and your tripod head, letting you attach and detach the head quickly. I’ve been using the Quick Link Set recently and wanted to cover my impressions in today’s review.
Table of Contents
What Is the Quick Link Set?
The Arca Swiss Quick Link Set consists of two plates: a disk that attaches to the bottom of your tripod head, and a receiver base that attaches to the top of your tripod. They look like this:

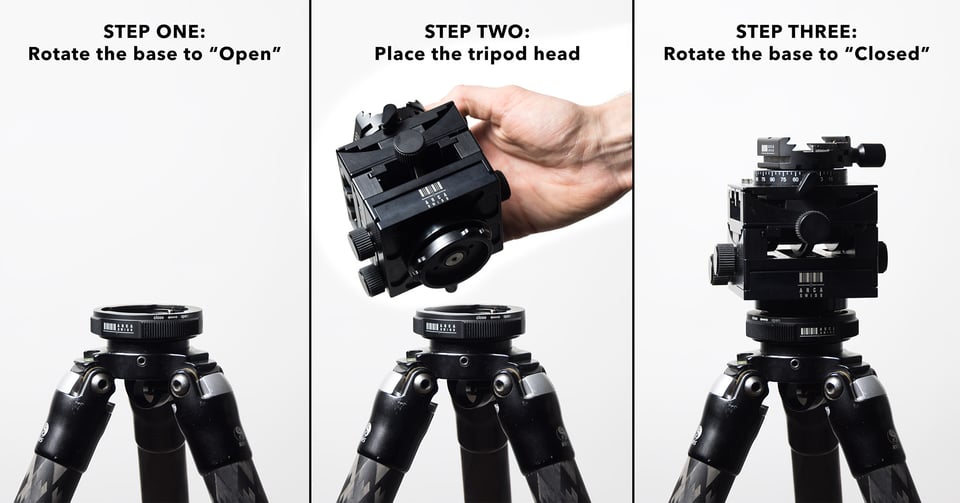

Once you’ve attached these two plates to your tripod and head, using them is a matter of rotating the base to the “open” position, placing the tripod head on top, and rotating the base to the “closed” position.
The receiver base weighs 103 g (3.6 oz), and the disk weighs 36 g (1.3 oz). They are compatible with any tripod and head brand, not just those from Arca Swiss, although I personally bought it to use with my Arca Swiss C1 Cube. Each receiver base costs $116, and each disk costs $83, although both together sell for a slightly discounted $183.
Who Is the Quick Link Set for?
Plenty of photographers always use just one tripod with one head, and they rarely need to separate the two. If that’s your situation, there’s no reason to get the Quick Link Set, especially considering the price. But there are a few situations where the Quick Link Set (or something similar from other manufactures) is worthwhile.
The first is simply if you find yourself swapping tripod heads frequently. Maybe you’re a dual stills/video shooter with one tripod but two heads: a standard ballhead for photos, and a pan-tilt head for videos. Unscrewing them each time can be a slow process and may cause you to miss a shot. With a Quick Link disk on each tripod head and a receiver base on the tripod, you can swap between the heads in a matter of seconds.
Another reason to use the Quick Link is if you want to pack your tripod head away easily for travel or hiking. Personally, when I go hiking, I find that a heavy tripod can drag my backpack in an uncomfortable way. Maybe the tripod hangs off the side of the backpack, twisting my spine in that direction, or maybe it hangs off the back, making the tripod feel twice as heavy. Either way, the heavier the tripod head, the bigger the problem – and I’m currently shooting with a heavy geared tripod head that can be uncomfortable to carry. With the Quick Link Set, I’ve been detaching the head and storing it inside my backpack in a better spot to carry. Other photographers shooting with big geared heads, pan-tilt heads, or larger ballheads like the RRS BH-55 may be in a similar boat.
Finally, you may want to use the Quick Link Set if your tripod head doesn’t do well in the elements, such as dusty and sandy conditions. This is especially true of a lot of geared heads, which often have their gear mechanism exposed to the outside world. It’s a pain to unscrew the tripod head each time you’re done shooting, but I know of some geared head shooters who do exactly that in order to avoid damaging their expensive equipment.
Construction
The Quick Link Set has excellent build quality. The open/close mechanism is smooth and intuitive after using it just a few times. Also, the secondary hex-key screw (pictured below) means that the plates won’t go anywhere once they’re attached – a nice benefit over some tripod heads that can loosen or unscrew themselves if they’re not locked tight.
Another important factor to consider is weight. While the Quick Link Set is reasonably light, it’s still a bit heavier than you may want. The basic set (which includes one disk for your tripod head and one receiver base for your tripod) totals 139 g / 4.9 ounces. In other words, it’s a bit lighter than two Nikon EN-EL15 batteries. Whether that’s an issue or not depends on your own situation. If you’re going on a difficult backpacking trip and rationing ounces, I’d recommend against taking the Quick Link Set along. Otherwise, it’s probably not an issue.
Stability
A concern with tripod attachments like this, at least in theory, is stability. Rather than one pivot point between the tripod and the head, there are now three: between the tripod/base, base/disk, and disk/tripod head.
To test the Quick Link Set’s stability, I set up the largest and most unwieldy camera I have access to, an 11×14 camera that measures roughly one meter (three feet) long when extended and weighs about 9 kg (20 pounds) all told. As you can imagine, a camera like that is prone to wobble even on a stable tripod and head, and it’s very sensitive to instability. I put a laser pointer on top of the camera, pressed down hard on the back standard, and let go. I then timed how long the laser pointer’s wobble lasted on a wall, repeating the test for a total of 10 measurements without the Quick Link and then 10 tests with it.
Going without the plates, the wobble lasted for an average of 4.87 seconds. Going with the plates, the wobble actually averaged a hair shorter at 4.81 seconds. However, these values are so similar that they’re within my setup’s margin of error. Overall, to the extent that I’m able to test it, I found no meaningful loss of stability when using the Quick Link Set compared to going without it. Considering that my camera setup for this test was sensitive to very small differences in stability, photographers with a standard DSLR or mirrorless camera should find it even less of a concern.
The caveat is that you need to tighten down the Quick Link Set all the way, including using the secondary hex-key screws. If you attach either plate loosely – or you don’t slide the receiver base to “closed” with sufficient force – you’re at risk of adding some wobble.
Alternatives
I have not tested any alternatives to the Arca Swiss version of the Quick Link Set, but I’ll briefly cover the ones that exist on the market today. First, Leofoto sells a similar-looking knockoff version called the QS-70 that is about half the price of the Arca Swiss set, plus smaller variations called the QS-60, QS-50, and QS-45. At the time of publishing this review, they’re only sold as a special order at B&H but are in stock at Amazon. Since I haven’t tested them, I make no claim about their quality relative to Arca Swiss. I have used a couple Leofoto products in the past without issue, but there’s also no denying that they “take strong inspiration” from Arca Swiss (to put it nicely) on some products, including this one.

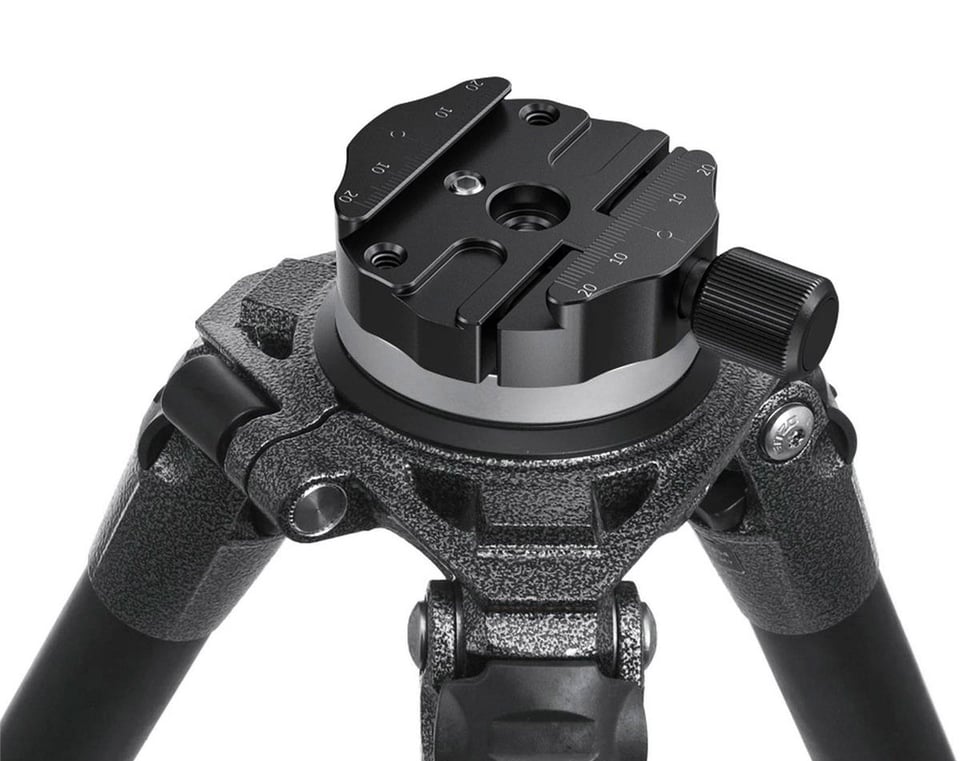

The other option is a bit different. Rather than a circular plate and clamp, you could just attach a standard tripod plate to the bottom of your tripod head, then a standard (or panning) clamp to the top of your tripod. It looks like this:
Again, I haven’t tested this for stability and am just letting you know what else exists. My initial reaction is that the setup above doesn’t look as stable as the circular Arca Swiss or Leofoto products whose clamps hug the entire disk. But if you already have the necessary supplies to put together the setup above (i.e. an extra tripod plate and clamp), or you’re on a budget and want SmallRig’s inexpensive version, it may be the way to go.
Conclusion and Recommendations
Is the Quick Link Set a worthwhile accessory, or is it just an expensive product in search of a need? It all depends on how you tend to use your tripod. If you’d find it useful to swap out your tripod head quickly, it’s worth getting (or at least worth looking at the knockoff Leofoto if the Arca Swiss is over your budget). But if you’re shaking your head at that, don’t buy it.
I ended up purchasing a set and have found it helpful for my landscape photography. When I’m hiking, I can remove and stow my heavy geared head in a comfortable spot inside my backpack rather than hanging it off the side of the bag. It also lets me avoid exposing the geared head to the elements – not the head’s strong suit, especially in sandy conditions. But my situation is pretty specific and matches the Quick Link Set’s strengths very well.
Other than that, it’s no surprise that this type of tripod accessory isn’t a common sight. The Quick Link Set is fairly expensive and adds weight without solving any commonly occurring problems in photography. Sure, it’s very stable and well-built, but is it necessary? As I see it, the Quick Link Set is one of those “if you need it, you know” sorts of products. If it fits your situation, there’s little to complain about aside from price. But for many photographers, it just doesn’t offer features that are especially relevant.
- You can purchase the Quick Link Set for $212 from B&H, €175 from Arca Swiss, or $183 from Arca Swiss’s USA representative Rod Klukas
- You can get extra disks (for multiple tripod heads) for $115 from B&H, €81 from Arca Swiss, and $83 from Rod Klukas
- You can get extra receiver bases (for multiple tripods) for $116 from B&H, €113 from Arca Swiss, and $116 from Rod Klukas
Arca Swiss Quick Link Set
- Features
- Build Quality
- Size and Weight
- Stability
- Value
Photography Life Overall Rating
Interesting. I was not aware of any of these, just came across your article was I was looking into alternatives for the Kirk system that I currently use, as I need to expand my set. The Kirk “Tripod Head Quick Disconnect System” comes in two size: small (51mm base) and large (63mm base). The are actually compatible, eg you can a large plate with a small base. I have a few of the Kirks now, and will stay with them, because I think they are a bit more versatile, and also cheaper. Not sure how stability compares. The Kirks are designed differently, in that they look like a normal Arca-Swiss, but chunkier – so that a Kirk base will accept a normal Arca-Swiss QR as well. Probably worthy to get a mention under “alternatives”. Available from B&H.
I use mine on normal ball-heads, pano head+rail, astro head+tracker, lateral arm+slider (for macro), and car window mount (for wildlife). FYI.
kirkphoto.com/tripo…html?id=36
I purchased two QuikLink sets to enable me to switch different geared heads back and forth between my geared tripod and my low tripod and am happy with the results. My primary interest is bird and wildlife photography. I have been considering attaching QuickLink bases to another tripod and monopod on which I carry gimbal heads to enable me to switch them for ball heads or a geared ones, when hiking. Because I want to be able carry my camera, super telephoto, and gimbal head attached to either over my shoulder to allow me to quickly deploy it, should I encounter a creature I wish to shoot, it is important to know whether a QuickLink pairing will support the weight of the gimbal, lens, and camera in a position perpendicular to the direction of the monopod or tripod. Could it handle around fifteen pounds, exclusive of the link set and tripod or monopod, for prolonged periods carried that way? I have found no information concerning the strength of the Quicklink pairing, and am reluctant to risk valuable equipment to find out. Any information you could provide would be greatly appreciated.
Spencer: You imply that the Arca-Swiss Quick Connect is similar to the Leofoto QS-70 knock-off… so what is 70mm in diameter, the disk or the entire receiver base assembly?
Spencer: Is that a RRS Series 2 Versa (TVC-24) shown in the photos? I am trying to get a sense of the size of the entire unit.
Yes, that’s the one.
Thanks!
So you landed in Cube C1 regions, Spencer? Cool. Well, then the Arca-Non-Swiss coupling system doesn’t make too much of a difference for the bill :))) (I keep on writing “Non-Swiss” as the company produces in France, outside of Switzerland, but still likes to deceive customers with “Swissness”) However, quality is good. I also enjoy this system, 4 plates and 2 receivers are working well together – except one certain person doesn’t take care to turn the ring fully in open position. Unfortuantely the design allowed me to try to fix it in the wrong position and it was not easy to unlock it again. So, be careful and not as silly as I was :)
I fully agree on your opinion about the SmallRig coupling, stability will be weaker as the Arca design simply brings more force into the connection and is centered.
With Leofoto I made a surprisingly good experience. Their “interpretation” of Arca’s d4 geared head (they named it g4, so it’s easier to confuse it with the “original”) is lighter, more versatile and has a bit bigger range of angles. Also, it’s a lot cheaper (and not sold in EU afaik). So, Leofoto copied the concept and improved it. And they did so very well. I could compare their G2 with the Arca version core leveler which i bought before my friend showed me his Leofoto. For less than half the price equally smooth operation.
You should update the Alternatives section with the newly announced Move system by Manfrotto: petapixel.com/2021/…d-shooter/
Spencer, Thank you for a good and fair review. The Quick Links are actually $183.00 for the kit, including 1 receiver and one head plate. A separate head plate is $83.00 and a separate receiver is $116.00.
This is designed to keep the heads base centered on the tripod with its design. A standard QR in most cases is a longitudinal plate with a channel and may place the head off center. This can cause movements, especially panoramic shooting to be less precise, causing issues at times with stitching.
Also an expensive head should be protected, especially when traveling, given the airlines propensity for tossing things. So removal to the back pack or camera case, can be very helpful in keeping the head safe and in perfect working order.
Thanks, Rod! I updated the article with the right prices. And thanks again for the help when I was buying this gear, the Cube has been working great so far with the 11×14.
The QuickLinks system is awesome. Like you, I don’t want to hike with a heavy head mounted. My full-sized tripod is heavy enough strapped to the side of my pack. I didn’t want to deal with a screw-knob, so threading a traditional quick release clamp to the tripod and an appropriate plate to the underside of the head was not appealing. Kirk’s system is too heavy and tall. Seastars are too tall. ASQ is the lowest profile and lightest of the systems that I know of, but fairly spendy. But once I got a set, and appreciated the elegance, simplicity, and build quality, I forgot what I paid for them. :)
Sounds like for your purposes, it’s a great fit! The price on Arca Swiss or similar quality gear is always high, but this stuff does last for ages.
I bought a couple of iFootage Seastars. As with most iFootage products, they are excellent quality. However, as with all of these, you need usually need 2 or 3 of them to make it worthwhile.
Nice, I hadn’t seen those, but they seem to work in a very similar way.
Hi Spencer, thanks for this! It looks like a nice product.
The only other solution I know of takes some work. I have drilled and tapped my tripod top plates so I could fasten a RRS TA-LBC ROUND LEVER RELEASE CLAMP to the plate. Then on the bottom of each head, one attaches a large dovetail plate such as the RRS TH-DVTL-55 in the usual way. It works very well – I can quickly exchange any head onto any tripod. But one must be handy for the plate modification and RRS parts are not always in stock.
The DIY approaches usually have some nice benefits in price if you’re able to make them work! Sounds like you found a good solution.
