It was a popular day for photography announcements! Alongside Fuji’s X-T5 and Canon’s EOS R6 Mark II, Nikon officially announced a lens that’s been on their roadmap for a while: the Nikon Z 600mm f/4 TC VR S. As many photographers expected, it’s an f/4 lens and has a built-in 1.4x teleconverter (to make an 840mm f/5.6). It’s also expensive – a whopping $15,500, making it the priciest Nikon Z lens yet.
Even with the built-in teleconverter, the lens weighs 550 grams / 1.2 pounds less than its predecessor, the Nikon AF-S 600mm f/4E FL VR for DSLRs. Specifically, the new Z lens is 3260 grams, or 7.2 pounds. That’s hardly featherweight, but it’s on the lighter side for a lens like this; it should be possible to handhold the Z 600mm f/4 for short periods of time. (Nikon says the lens’s center of gravity is at the tripod ring, which also helps.)
Here are the full specs for the Nikon Z 600mm f/4 TC VR S:
Mount Type: Nikon Z Mount
Focal Length: 600mm (840mm with built-in 1.4x teleconverter)
Maximum Aperture: f/4 (f/5.6 with built-in 1.4x teleconverter)
Minimum Aperture: f/32 (f/45 with built-in 1.4x teleconverter)
Aperture Blades: 9, rounded
Filter Size: 46mm drop-in
Lens Elements: 26 (19 ignoring the teleconverter)
Lens Groups: 20 (16 ignoring the teleconverter)
Special Elements: 3 ED glass, 1 Super ED glass, 2 fluorite, and 2 short-wavelength reflective SR elements (of those, 1 ED and 1 SR element are in the teleconverter)
Fluorine Coated Front Element: Yes
Electronic Diaphragm: Yes
Vibration Reduction: Yes
Internal Focusing: Yes
Rings: Three (focus, function, and control)
Function Buttons: Yes (Fn1 and Fn2)
Focus Recall Buttons: Yes
Focus Motor: Silky Swift Voice Coil Motor
Minimum Focus Distance: 4.3 meters (14.1 feet)
Maximum Magnification: 0.14x (1:7.1); 0.2× (1:5) with built-in 1.4x teleconverter
Mount Material: Metal
Weather/Dust Sealing: Yes
Dimensions (Length × Diameter): 437 x 165 mm / 17.3 × 6.5 inches
Weight: 3260 g / 7.19 lbs
MSRP: $15,500
That’s a whopper of a specifications list – eight special lens elements (out of 26), tons of buttons and rings, and, of course, the built-in 1.4x teleconverter.
It’s the last point that makes this lens so interesting for professional photographers. Like the Nikon Z 400mm f/2.8 TC VR S – which shares a lot of similarities with this lens – all it takes is one switch to enable or disable the 1.4x teleconverter. It doesn’t quite make this as flexible as a zoom lens, but it still acts like two lenses in one. The ability to jump quickly between 600mm f/4 and 840mm f/5.6 will be useful in fast-moving situations.

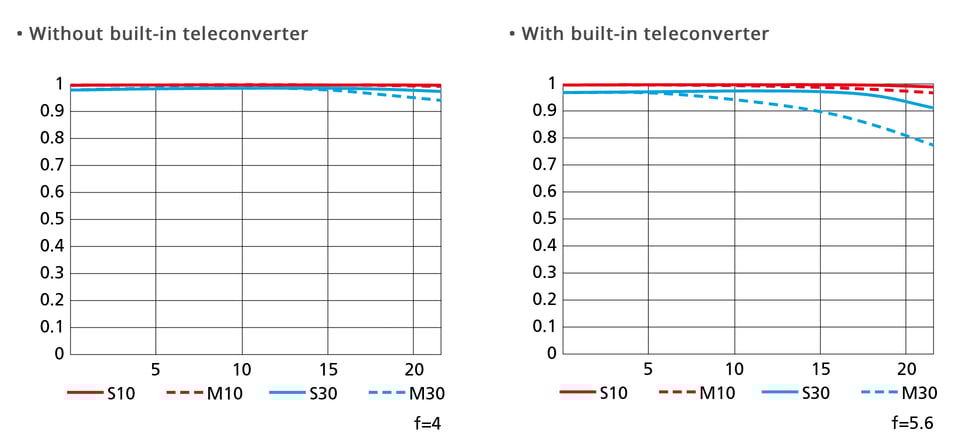

No surprise, the MTF charts look almost perfect for this lens. You can see the lens’s standard performance and the performance with the 1.4x teleconverter below:
Nikon says the lens will be available in late November, but if the other Nikon Z supertelephotos are anything to judge by, it will be many months until most photographers get their copy – even those who pre-order the lens.
Nikon releases the NIKKOR Z 600mm f/4 TC VR S, a fast, super-telephoto prime lens with a built-in 1.4x teleconverter for the Nikon Z mount system
November 2, 2022
Delivering superior resolution and agility for reliable capture of decisive moments
TOKYO – Nikon Corporation (Nikon) is pleased to announce the release of the NIKKOR Z 600mm f/4 TC VR S, a fast, super-telephoto prime lens that is compatible with full-frame/FX-format mirrorless cameras for which the Nikon Z mount system has been adopted.
The NIKKOR Z 600mm f/4 TC VR S, the super-telephoto prime lens which belongs to the S-Line*1 of NIKKOR Z lenses, pursues the ultimate in optical performance. It features a built-in teleconverter that extends the focal length by 1.4x, enabling coverage of two focal lengths — 600 mm and 840 mm. With a weight of approximately 3,260 g, it is roughly 550 g lighter than the AF-S NIKKOR 600mm f/4E FL ED VR, even with the addition of a built-in teleconverter. With a total length of approximately 437 mm, the lens is small enough to be stored in a bag that meets carry-on standards for international flights. Various aberrations are effectively compensated with the adoption of three ED glass*2, a super ED glass, two fluorite lens, and two SR lens*2 elements for the lens optics. Superior sharpness and detail are possible even at the periphery of the frame from the maximum aperture, and outstanding image quality is realized even when the built-in teleconverter is used. A fast maximum aperture of f/4 makes the lens ideal for photographing rapidly moving subjects, such as at motorcycle racing events, as well as for three-dimensional rendering with natural bokeh.
In addition, the lens employs Meso Amorphous Coat that boasts the highest anti-reflection performance in NIKKOR history. The combination of Meso Amorphous Coat and Nano Crystal Coat synergistically works to greatly reduce ghost and flare. This allows users to concentrate on shooting without restrictions on composition, even in situations where strong light sources are likely to be included in the frame, such as outdoors or under stadium lights. Further, the Silky Swift VCM (SSVCM)*3 has been adopted for the lens AF drive to simultaneously achieve fast and highly accurate AF control, as well as outstandingly quiet AF operation. The lens also supports VR performance equivalent to a 5.0-stop*4 increase in shutter speed, effectively reducing blur with super-telephoto shooting. With its superb strength, durability, and operability, the NIKKOR Z 600mm f/4 TC VR S supports professional photographers’ imaging expression in photographic genres such as sports, news, and wildlife.
Nikon will continue to pursue a new dimension in optical performance while meeting users’ needs, contributing to the development of imaging culture, with the hope of expanding possibilities for imaging expression.
1The S-Line is a grade of NIKKOR Z lenses that demonstrate outstanding optical performance, adhering to a high standard of design principles and quality control.
2Three ED glass and two SR lens elements are used when the built-in teleconverter is enabled, while two ED glass and a SR lens elements are used when the built-in teleconverter is disabled.
3An AF drive actuator that combines a Voice Coil Motor (VCM) and a guide mechanism developed by Nikon. The VCM is a motor in which a coil reciprocates in the strong magnetic field created by a powerful magnet.
4Based on CIPA Standard. This value is achieved when attached to a camera with full-frame/FX-format sensor, with the camera’s VR function set to “NORMAL”
Features a built-in teleconverter that extends the focal length by 1.4x, allowing the lens to cover two focal lengths — 600 mm and 840 mm. The teleconverter switch located within easy reach of the right hand enables smooth changing of the focal length without altering the shooting posture.
The focal length can be extended to 1,200 mm with the Z TELECONVERTER TC-2.0x, or 1,680 mm when the built-in teleconverter is used with it*1.
By using the built-in teleconverter and 2.3x crop for video recording with the Nikon Z 9, it is possible to shoot at a focal length equivalent to 1,932 mm*2.
The weight of approximately 3,260 g despite the addition of a built-in teleconverter makes the NIKKOR Z 600mm f/4 TC VR S roughly 550 g lighter than the AF-S NIKKOR 600mm f/4E FL ED VR.
The total length of approximately 437 mm means the lens fits in a bag that can be carried on board international flights, so you can transport it with confidence.
Color bleeding and flare are suppressed not only at infinity, but also with shooting at close distances, realizing superior sharpness and detail to the edges of the frame from the maximum aperture.
Adoption of Meso Amorphous Coat with the highest anti-reflection performance in NIKKOR history, for significant reduction of ghost and flare.
Adoption of the Silky Swift VCM (SSVCM) for the AF drive enables fast, highly accurate, and quiet AF control.
VR performance equivalent to a 5.0-stop increase in shutter speed; an effect of 5.5 stops*3 is realized when the lens is used with the Z 9 with Synchro VR activation.
Superior dust- and drip-resistant performance*4 is ensured by sealing adopted in various areas including movable parts of the lens barrel as well as a rubber gasket around the lens mount, while excellent anti-fouling performance is achieved with a fluorine coat on the surface of the front-most lens element.
Operability similar to that of the NIKKOR Z 400mm f/2.8 TC VR S frequently used by professionals enables smooth switching between lenses during super-telephoto shooting that requires photographers to decide on a lens in an instant.
A design considering video recording including a focus-breathing compensation function which effectively reduces shifting of the angle of view when focusing, and stable exposure.
1Depending upon the subject, scene brightness, and focus position, AF may not perform as expected, regardless of the camera used, resulting in inaccurate focus, slow focusing, or flashing of the focus indicator for electronic rangefinding.
2When the Z 9’s [Frame size/frame rate] is set to [3840×2160; 120p], [3840×2160; 100p], [1920×1080; 120p], or [1920×1080; 100p] and [Choose image area] is set to [DX (24×16)], the lens angle of view is equivalent to that of a lens with a focal length approximately 2.3x that available when the image area is set to FX-format.
3Based on CIPA standard. This value is achieved when attached to a camera with full-frame/FX-format sensor, with the camera’s VR function set to “NORMAL”, and the built-in teleconverter disabled.
4Thorough dust- and drip-resistance is not guaranteed in all situations or under all conditions.
