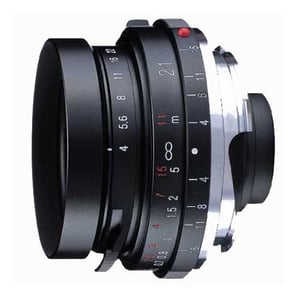

Voigtlander 21mm f/4 Color Skopar Pancake

Voigtlander 21mm f/4 Color Skopar Pancake

Lens Summary

Brand: Voigtlander

Also Known As: Voigtlander 21mm f/4

Lens Type: Prime Lens

Format: Full Frame / FX

Focus: Manual Focus

Lens Mount: Leica M

Release Date: 2009-01-01

MSRP Price: $419

Made in: Germany

Production Status: In Production

Lens Description: The Voigtlander Color-Skopar 21mm f/4.0 Pancake lens with the VM lens mount, is designed especially for use with the Bessa R4M/R4A cameras, and will work on any camera that uses the Leica M mount. With the Bessa R4M/R4A cameras that have a built-in bright frame for 21mm, the necessity to use an external viewfinder is eliminated. This ultra-compact wide-angle lens features exceptional close focusing capability, as close as 1.5\' (0.5 m). The focusing lever allows you you to go from minimum distance to infinity in less than a 90 degrees rotation. The Apertures is selected via the click-stop diaphragm. With an exellent depth of field scale, the 10 blade, circular aperture will produce smooth and natural renditions of defocused images, with nearly circular shapes of light point sources.


Voigtlander 21mm f/4 Color Skopar Pancake Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length21mm
Mount TypeLeica M
FormatFull Frame / FX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor DSLR (APS-C Sensor)
Compatible with TeleconvertersNo
Image StabilizationNo
Aperture Information
Aperture RingYes
Maximim Aperturef/4
Minimum Aperturef/22
Maximum Angle of View (Full frame or larger format)91°
Optical Information
Lens Elements8
Lens Groups5
Diaphragm Blades10
Focus Information
FocusManual Focus
Built-in Focus MotorNo
Minimum Focus Distance0.50m
Distance InformationYes
Filter Information
Filter Size39mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions55 x 25mm
Weight136g
Other Information
Available in ColorsBlack
