Tokina AT-X 12-24mm f/4 Pro DX II

Lens Summary

Brand: Tokina

Also Known As: Tokina 12-24mm f/4

Lens Type: Zoom Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Canon EF, Nikon F

Release Date: 2004-01-01

MSRP Price: $449

Made in: Japan

Infrared Rating: Poor

Production Status: In Production

Lens Description: The Nikon mount AT-X 124 PRO DX II has a built-in AF motor drive. The motor inside the lens was loaded onto the Nikon mount specification anew. The AF operates smoothly and quietly due to a DC motor that uses a new AF control gear assembly. With the built-in motor, the lens can be used in AF mode with the Nikon D60 and D40 and other silent wave bodies. The Canon version of the lens already has a built-in AF motor and will benefit from the improved multi-coating. The optical system of original AT-X 124 PRO DX won awards for its sharpness world-wide. This design was maintained in the AT-X 124 PRO DX II and improved with the introduction of new multi-coating_ system. The new multi-coating helps reduce reflections that can cause flare and ghosting even more than in the AT-X 124 PRO DX. The AT-X 124 PRO DX II features the one-touch focus clutch mechanism. _ To use the one-touch focus clutch mechanism, move the focus ring forward, towards the front of the lens, for AF or back for MF. This allows for a fast and easy manual over-ride in difficult lighting situations. Digital single-lens reflex DX lens_ dedicated to digital SLR cameras with APS-C sized sensors.


Tokina AT-X 12-24mm f/4 Pro DX II Specifications

Lens Specifications
Lens TypeZoom Lens
Focal Length12-24mm
Mount TypeCanon EF, Nikon F
FormatAPS-C / DX
Compatible Format(s)FX in DX Crop Mode
Compatible with TeleconvertersNo
Zoom Ratio2x
Maximum Reproduction Ratio1:8
Image StabilizationNo
Aperture Information
Aperture RingNo
Maximum Aperturef/4
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)99°
Minimum Angle of View (APS-C or smaller format)61°
Optical Information
Lens Elements13
Lens Groups11
Diaphragm Blades9
Nano CoatingNo
Anti-Reflective CoatingNo
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Silent Wave / UltraSonic MotorNo
Internal FocusingYes
Minimum Focus Distance0.30m
Distance InformationYes
Filter Information
Filter Size77mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialPlastic
Tripod CollarNo
Dimensions8.38 x 8.89cm
Weight570g
Other Information
Available in ColorsBlack

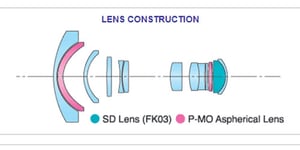

Lens Construction

Tokina AT-X Pro 12-24mm f/4 DX II diagram

MTF Chart

Tokina AT-X Pro 12-24mm f/4 DX II chart
