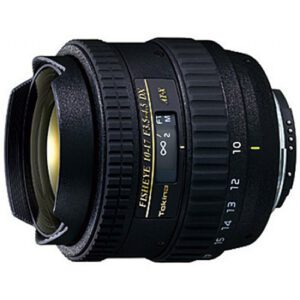

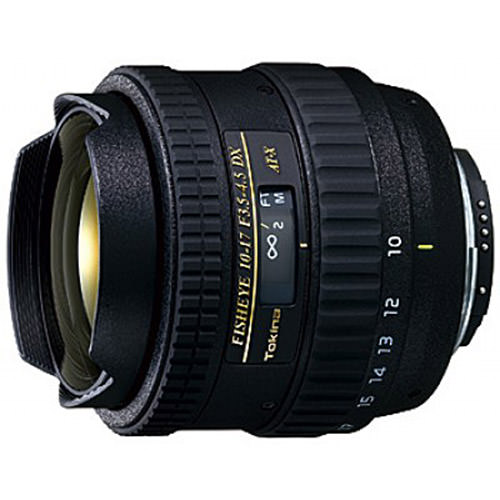

Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye

Lens Summary

Brand: Tokina

Also Known As: Tokina 10-17mm f/3.5-4.5

Lens Type: Zoom Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Canon EF, Nikon F

Release Date: 2011-06-12

MSRP Price: $669

Made in: Japan

Infrared Rating: Good

Production Status: In Production

Lens Description: The Tokina 10-17mm f/3.5-4.5 AT-X 107 AF DX Fisheye Lens is a full-frame (non-circular) fisheye lens, providing a 180° diagonal field of view. The broad angle of view gives an inherent curved, fisheye effect and can be used to capture expansive spaces from a relative close range.


Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye Specifications

Lens Specifications
Lens TypeZoom Lens
Focal Length10-17mm
Mount TypeCanon EF, Nikon F
FormatAPS-C / DX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor DSLR (APS-C Sensor)
Compatible with TeleconvertersNo
Zoom Ratio1.7x
Maximum Reproduction Ratio1:2.56
Image StabilizationNo
Aperture Information
Aperture RingNo
Maximum Aperturef/3.5-4.5
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)180°-100°
Optical Information
Lens Elements10
Lens Groups6
Diaphragm Blades6
Extra-Low Dispersion Glass ElementsSD element
Nano CoatingNo
Anti-Reflective CoatingNo
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Silent Wave / UltraSonic MotorNo
Minimum Focus Distance0.14m
Distance InformationYes
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Tripod CollarNo
Dimensions6.99 x 7.09cm
Weight349g
Other Information
Available in ColorsBlack

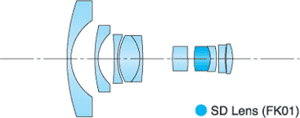

Lens Construction

Tokina AT-X 10-17mm f/3.5-4.5 DX Fish-eye Diagram

MTF Chart

Tokina AT-X 10-17mm f/3.5-4.5 DX Fish-eye Chart ff=10mm Tokina AT-X 10-17mm f/3.5-4.5 DX Fish-eye Chart ff=17mm
