Lens Summary
Brand: Sony
Also Known As: Sony FE 24-70mm f/4 ZA OSS
Lens Type: Zoom Lens
Format: Full Frame / FX
Focus: Autofocus
Lens Mount: Sony E
Release Date: 2013-10-16
MSRP Price: $1199
Made in: Thailand
Production Status: In Production
Lens Description: The new Carl Zeiss Vario-Tessar T* 24-70mm F4 lens combines a versatile 24-70mm focal length with a useful F4 maximum aperture at all focal lengths, making it an ideal lens for portraits, landscapes and every day shooting. The new lens also features Optical SteadyShot® for keeping shots crisp and clear at all focal lengths, even at slower shutter speeds.The SEL2470Z is designed with five aspherical elements with one ED glass element, assuring images are highly detailed and accurate. Unique to Carl Zeiss, it also features T* coating on optical surface which cuts glare and internal reflections to boost contrast.
Sony Vario-Tessar T* FE 24-70mm f/4 ZA OSS Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 24-70mm |
| Mount Type | Sony E |
| Format | Full Frame / FX |
| Compatible Format(s) | 35mm full-frame |
| Compatible with Teleconverters | No |
| Zoom Ratio | 2.91x |
| Maximum Reproduction Ratio | 0.2x |
| Optical SteadyShot / AntiShake (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/2.8 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 61° |
| Minimum Angle of View (APS-C or smaller format) | 23° |
| Maximum Angle of View (Full frame or larger format) | 84° |
| Minimum Angle of View (Full frame or larger format) | 34° |
| Optical Information | |
| Lens Elements | 12 |
| Lens Groups | 10 |
| Diaphragm Blades | 7 |
| Extra-Low Dispersion Glass Elements | 1 |
| Aspherical Elements | 5 |
| Anti-Reflective / Multi-Layered / T* Coating | Yes |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.40m |
| Distance Information | Yes |
| Filter Information | |
| Filter Size | 67mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Dimensions | 73 x 94.5mm |
| Weight | 430g |
| Other Information | |
| Available in Colors | Black |

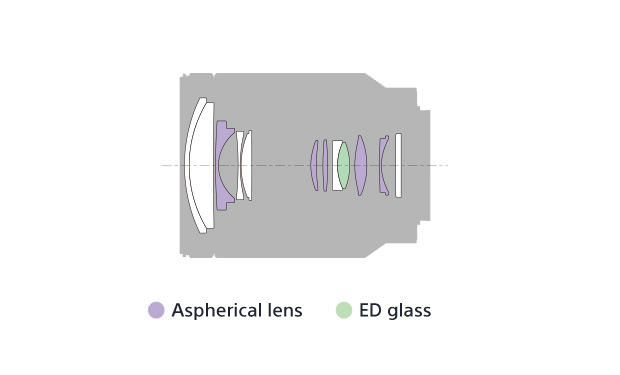

Lens Construction

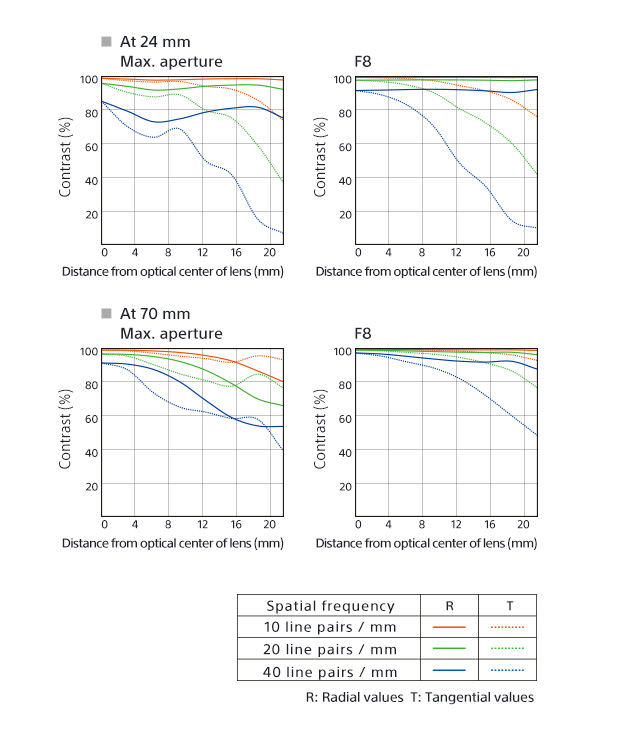

MTF Chart
