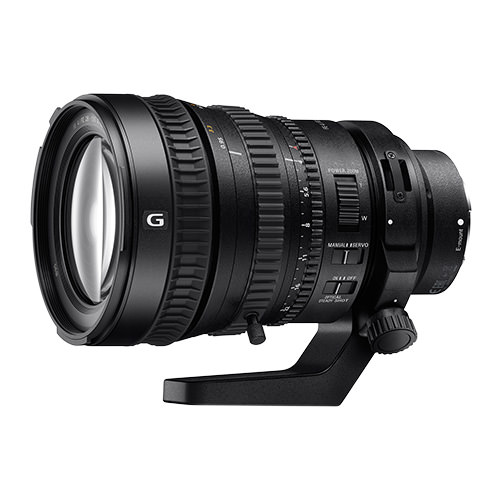

Lens Summary
Brand: Sony
Also Known As: Sony FE PZ 28-135mm f/4
Lens Type: Zoom Lens
Format: Full Frame / FX
Focus: Autofocus
Lens Mount: Sony E
Release Date: 2014-09-12
MSRP Price: $2499
Made in: Japan
Production Status: In Production
Lens Description: Designed for serious film makers, the lens is an ideal match for Sony’s a7S full frame camera, capturing immense amounts of detail while shooting Full HD and 4K video. The new power zoom lens features Sony’s new ‘Smooth Motion Optics’ design, which addresses three issues of prime concern to movie-makers: change in angle of view (‘breathing’) while focusing, focus shifts during zoom and movement of the optical axis during zoom. Additionally, the FE PZ 28-135mm F4 G OSS has three separate control rings for focus, zoom and aperture for a satisfyingly responsive, professional feel.
Sony FE PZ 28-135mm f/4 G OSS Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 28-135mm |
| Mount Type | Sony E |
| Format | Full Frame / FX |
| Compatible Format(s) | Full-Frame / APS-C |
| Compatible with Teleconverters | No |
| Maximum Reproduction Ratio | 0.15x |
| Optical SteadyShot / AntiShake (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | Yes |
| Maximim Aperture | f/2.8 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 54° |
| Minimum Angle of View (APS-C or smaller format) | 12° |
| Maximum Angle of View (Full frame or larger format) | 75° |
| Minimum Angle of View (Full frame or larger format) | 18° |
| Optical Information | |
| Lens Elements | 18 |
| Lens Groups | 12 |
| Diaphragm Blades | 9 (rounded) |
| Extra-Low Dispersion Glass Elements | 3 |
| Aspherical Elements | 5 |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Direct Drive Super Sonic wave Motor (DDSSM) | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.4(W) - 0.95(T) (AF/MF) 0.95 (Full MF) |
| Filter Information | |
| Filter Size | 95mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Tripod Collar | Yes |
| Dimensions | 105 x 162.5 |
| Weight | 1215g |
| Other Information | |
| Available in Colors | Black |

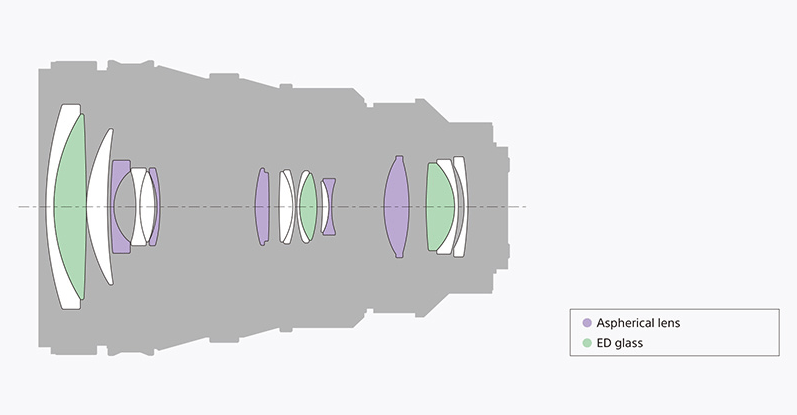

Lens Construction

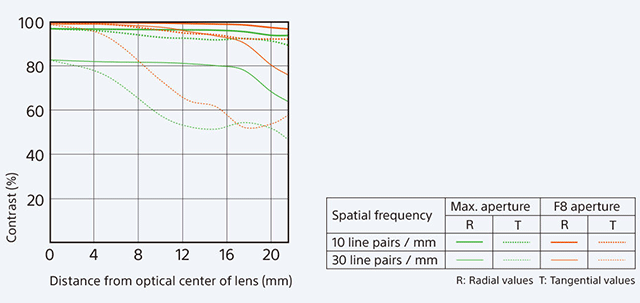

MTF Chart
28mm:
135mm:
