Lens Summary
Brand: Sony
Also Known As: Sony FE 70-200mm f/2.8 OSS
Lens Type: Zoom Lens
Format: Full Frame / FX
Focus: Autofocus
Lens Mount: Sony E
Release Date: 2016-02-03
MSRP Price: $2599
Made in: Thailand
Production Status: In Production
Lens Description: Sony's new flagship telephoto zoom lens delivers extraordinary sharpness and clarity throughout the entirety of its zoom range thanks to its three advanced lens elements including XA, Super ED and ED glass components, as well as its Nano AR coating.The FE 70-200mm F2.8 GM OSS lens features a floating focusing system – implemented in an α zoom lens for the first time – that contributes to an impressive minimum focusing distance of merely 0.96m and ensures AF performance is optimized during both still and video shooting. The lens includes a SSM (Super Sonic Motor) plus dual linear motors that work together to move large lens elements quickly - a task that requires a high level of drive control and ensures focus accuracy. The new model also has built in Optical SteadyShot image stabilization for capturing sharp, blur-free subjects at all focal lengths and a rotating tripod mount that allows the camera to be quickly removed from a connected tripod as needed.The new 70-200mm telephoto zoom lens is dust and moisture resistant with an additional fluorine coating added to the front lens. It also has a focus hold button as well as a focal range limiter.

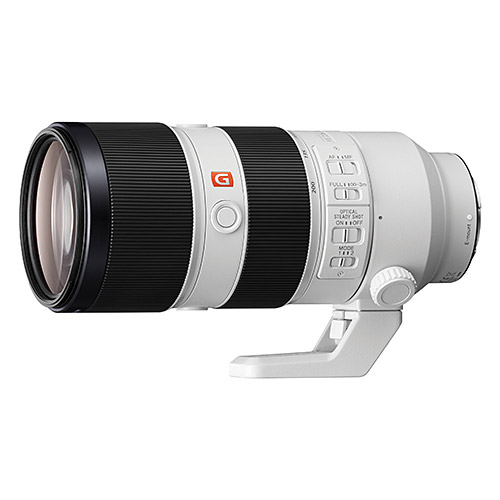

Sony FE 70-200mm f/2.8 GM OSS Specifications
| Lens Specifications | |
|---|---|
| * Supplied accessories may differ depending on country or area | |
| Lens Type | Zoom Lens |
| Focal Length | 70-200mm |
| Mount Type | Sony E |
| Format | Full Frame / FX |
| Compatible Format(s) | Full Frame / APS-C |
| Compatible with Teleconverters | Yes |
| Maximum Reproduction Ratio | 0.25x |
| Optical SteadyShot / AntiShake (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/2.8 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 23° |
| Minimum Angle of View (APS-C or smaller format) | 8° |
| Maximum Angle of View (Full frame or larger format) | 34° |
| Minimum Angle of View (Full frame or larger format) | 12° 30' |
| Optical Information | |
| Lens Elements | 23 |
| Lens Groups | 18 |
| Diaphragm Blades | 11 |
| Extra-Low Dispersion Glass Elements | 6 |
| Aspherical Elements | 3 |
| Nano AR Coating | Yes |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Direct Drive Super Sonic wave Motor (DDSSM) | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.96 m / 3.15 ft |
| Filter Information | |
| Filter Size | 77mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Tripod Collar | Yes |
| Dimensions | 88.0 x 200mm |
| Weight | 1480 g / 52.21 oz |
| Other Information | |
| Available in Colors | White |
| Supplied Accessories | Hood (ALC-SH145), Lens front cap (ALC-F77S), Lens rear cap (ALC-R1EM), Case, Tripod mount |

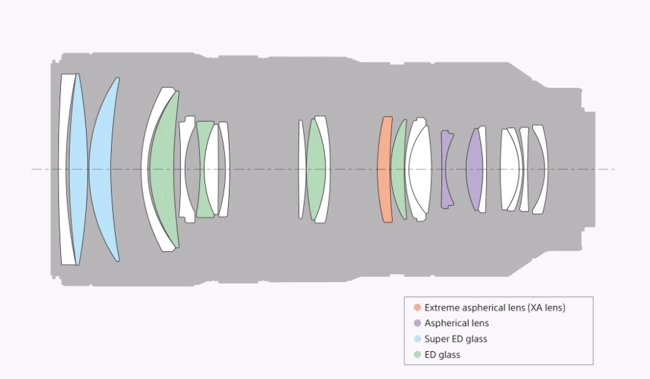

Lens Construction

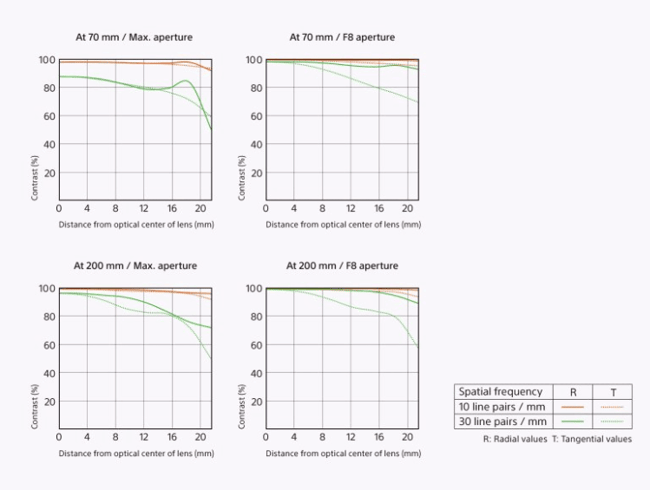

MTF Chart
