Lens Summary
Brand: Sony
Also Known As: Sony FE 12-24mm f/4
Lens Type: Zoom Lens
Format: Full Frame / FX
Focus: Autofocus
Lens Mount: Sony E
Release Date: 2017-05-17
MSRP Price: $1699
Made in: China
Production Status: In Production
Manufacturer Link: Product Page

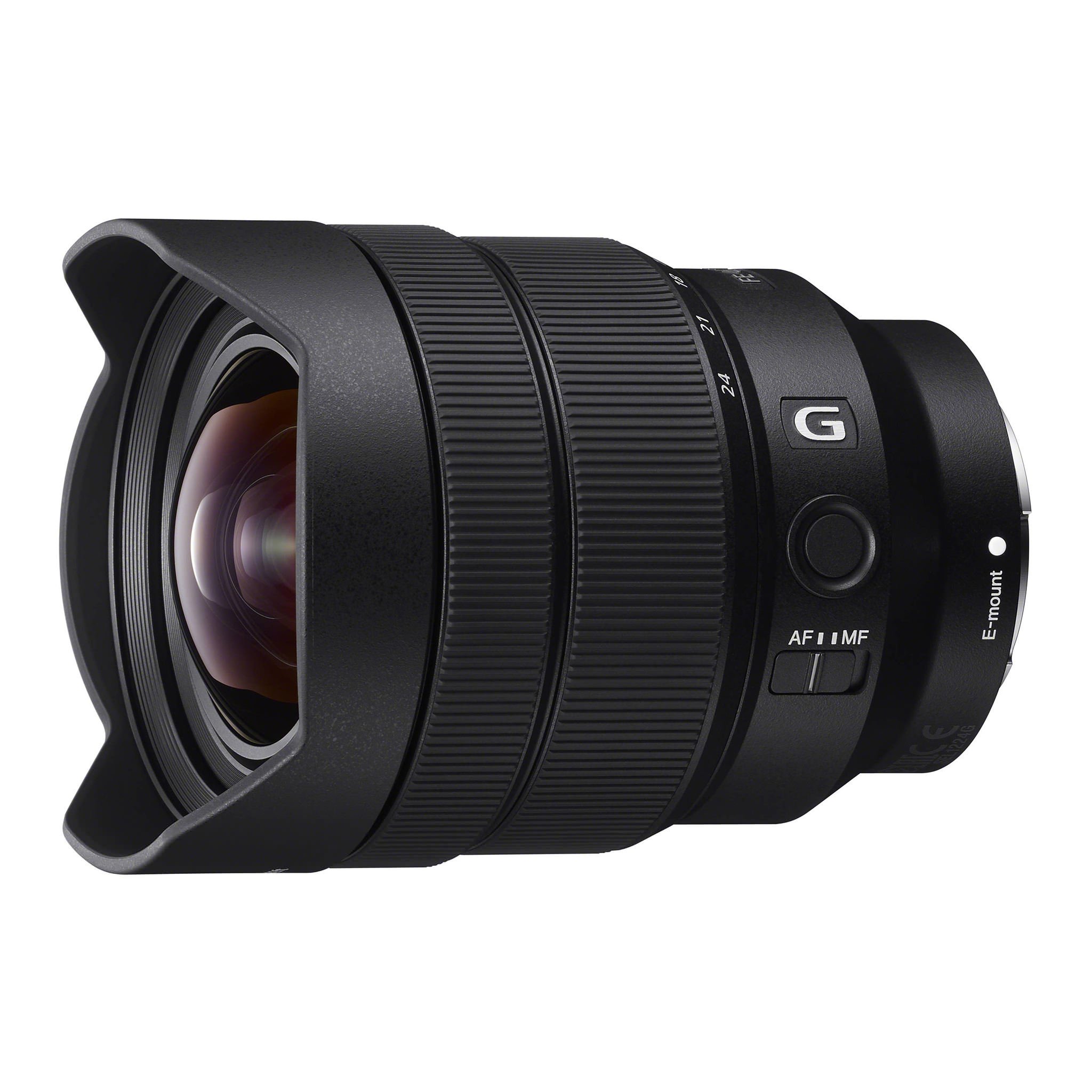

Lens Description: Ultra-wide and versatile, the FE 12-24mm f/4 G Lens from Sony is a flexible zoom lens for full-frame Sony E-mount mirrorless cameras, characterized by its constant f/4 maximum aperture. Benefiting the wide field of view is a sophisticated optical design that incorporates aspherical and low dispersion glass elements to control both spherical and chromatic aberrations for improved sharpness and clarity. A Nano AR Coating has also been applied to individual elements to reduce surface reflections, flare, and ghosting for greater contrast and color fidelity when working in bright, backlit situations.
Sony FE 12-24mm f/4 G Specifications
| Lens Specifications | |
|---|---|
| * Supplied accessories may differ depending on country or area | |
| Lens Type | Zoom Lens |
| Focal Length | 12-24mm |
| Mount Type | Sony E |
| Format | Full Frame / FX |
| Compatible Format(s) | Full Frame / APS-C |
| Compatible with Teleconverters | No |
| Maximum Reproduction Ratio | 0.14x |
| Optical SteadyShot / AntiShake (Image Stabilization) | No |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/4 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 99° |
| Minimum Angle of View (APS-C or smaller format) | 61° |
| Maximum Angle of View (Full frame or larger format) | 122° |
| Minimum Angle of View (Full frame or larger format) | 84° |
| Optical Information | |
| Lens Elements | 17 |
| Lens Groups | 13 |
| Diaphragm Blades | 7 (Rounded) |
| Extra-Low Dispersion Glass Elements | 3 |
| Special Glass Elements | 1 Super ED |
| Aspherical Elements | 4 |
| Nano AR Coating | Yes |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Direct Drive Super Sonic wave Motor (DDSSM) | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.92 ft (0.28 m) |
| Filter Information | |
| Filter Size | N/A |
| Accepts Filter Type | N/A |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Dimensions | 3-1/2" x 4-5/8" (87 x 117.4 mm) |
| Weight | 20 oz (565 g) |
| Other Information | |
| Available in Colors | Black |
| Supplied Accessories | Lens front cap, ALC-R1EM rear cap, case |

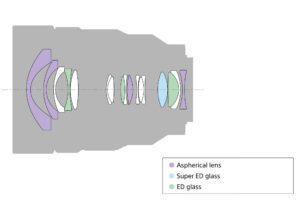

Lens Construction

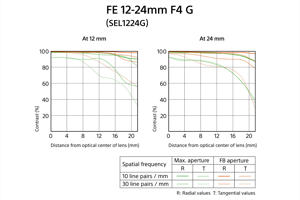

MTF Chart
