Lens Summary
Brand: Sony
Also Known As: Sony 18-200mm f/3.5-6.3
Lens Type: Zoom Lens
Format: APS-C / DX
Focus: Autofocus
Lens Mount: Sony E
Release Date: 2012-09-12
MSRP Price: $1198
Made in: Japan
Production Status: In Production

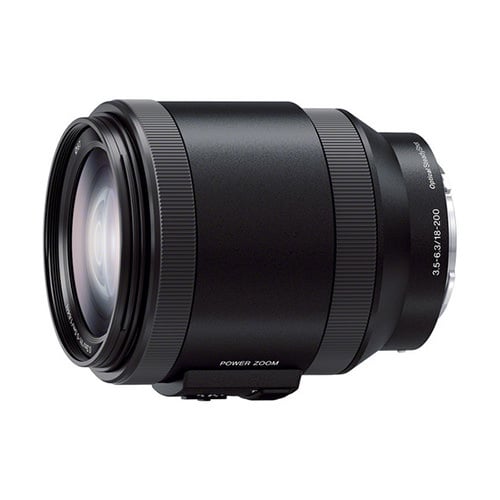

Lens Description: The 18-200mm f/3.5-6.3 PZ OSS Alpha E-mount Lens from Sony is a powerful, yet compact zoom lens for the NEX mirrorless camera line from Sony. Its zoom range is equivalent to 27-300mm in the 35mm format and therefore offers everything from true wide-angle to super-telephoto capabilities. This versatility allows you to shoot groups, interiors and expansive landscapes and also zoom in for portraiture and to bring distant subjects close. A newly developed internal linear stepping motor provides quiet and smooth focusing which is ideal when shooting video. And in addition to three variable zoom speeds, the lens supports constant speed zooming for slow, smooth zoom, which is also desirable when shooting video. Zoom can be controlled from camcorders that feature built-in zoom levers and by the standard control on the lens barrel.
Sony E PZ 18-200mm f/3.5-6.3 OSS Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 18-200mm |
| Mount Type | Sony E |
| Format | APS-C / DX |
| Compatible Format(s) | Sony (E Mount for NEX) |
| Compatible with Teleconverters | No |
| Zoom Ratio | 11.11x |
| Maximum Reproduction Ratio | 0.35x |
| Optical SteadyShot / AntiShake (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/3.5-6.3 |
| Minimum Aperture | f/22-40 |
| Maximum Angle of View (APS-C or smaller format) | 76° |
| Optical Information | |
| Lens Elements | 17 |
| Lens Groups | 12 |
| Diaphragm Blades | 7 (Rounded) |
| Extra-Low Dispersion Glass Elements | 1 |
| Aspherical Elements | 5 |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Stepper Motor (STM) | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.30m |
| Filter Information | |
| Filter Size | 67mm |
| Accepts Filter Type | Screw-On |
| Physical Characteristics | |
| Weather / Dust Sealing | No |
| Mount Material | Metal |
| Dimensions | 93.2 x 99mm |
| Weight | 649g |
| Other Information | |
| Available in Colors | Black |

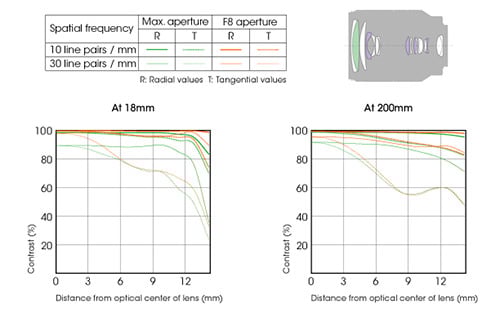

Lens Construction and MTF Chart
