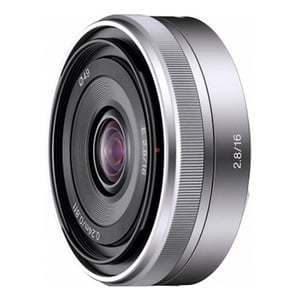

Sony E 16mm f/2.8 Pancake

Sony E 16mm f/2.8 Pancake

Lens Summary

Brand: Sony

Also Known As: Sony E 16mm f/2.8

Lens Type: Prime Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Sony E

Release Date: 2010-06-11

MSRP Price: $248

Made in: Japan

Production Status: In Production

Lens Description: The wide 16mm coverage (equivalent to a 24mm lens on a full frame camera) makes for comfortable shooting in situations ranging from cramped indoor settings to sweeping landscapes, and the large f/2.8 maximum aperture is ideal for handheld shooting in low light.


Sony E 16mm f/2.8 Pancake Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length16mm
Mount TypeSony E
FormatAPS-C / DX
Compatible Format(s)APS-C Sensor
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:13.6
Optical SteadyShot / AntiShake (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/2.8
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)83°
Optical Information
Lens Elements5
Lens Groups5
Diaphragm Blades7
Aspherical Elements1
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Internal FocusingYes
Minimum Focus Distance0.24m
Filter Information
Filter Size49mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions2.26 x 6.20cm
Weight70g
Other Information
Available in ColorsBlack or Silver

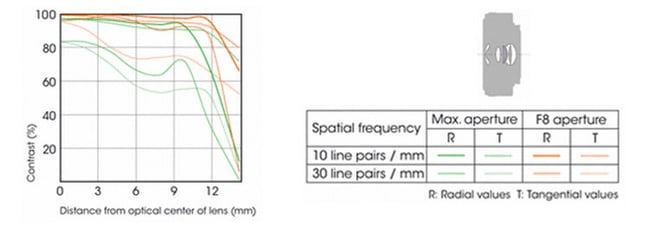

Lens Construction and MTF Chart

Sony E 16mm f/2.8 Pancake Lens Construction and MTF Chart

About Nasim Mansurov

Nasim Mansurov is the author and founder of Photography Life, based out of Denver, Colorado. He is recognized as one of the leading educators in the photography industry, conducting workshops, producing educational videos and frequently writing content for Photography Life. You can follow him on Instagram and Facebook. Read more about Nasim here.

guest

1 Comment
Newest
Oldest Most Voted
Inline Feedbacks
View all comments
Achilleas Labrou

Very soft lens with strong vignetting at f/2.8.
Very light, small and convenient lens.
Best sharpness between f/8 and f/11.
The similar sized Sony pancake lens at 20mm f/2.8 is much more sharper with less barrel distortion and vignetting.
