Sigma 70-200mm f/2.8 EX DG OS HSM

Sigma APO 70-200mm f/2.8 EX DG OS HSM

Lens Summary

Brand: Sigma

Also Known As: Sigma 70-200mm f/2.8

Lens Type: Zoom Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF, Nikon F, Sigma SA

Release Date: 2010-02-20

MSRP Price: $1249

Made in: Japan

Infrared Rating: Poor

Production Status: In Production

Lens Description: Sigma\'s APO 70-200mm f/2.8 EX DG OS HSM is the second generation of this large aperture telephoto zoom lens now incorporating Sigma’s Optical Stablization function, OS, our own anti-shake system which makes viewing a stabilized image in the viewfinder possible for Sony and Pentax users if chosen. Two FLD glass elements, which have the performance equal to fluorite glass have also been added along with three SLD glass elements, all which provide excellent correction of color aberration. In spite of the additions of all of these features, Sigma has managed to make the lens more compact than its predecessor, measuring only 7.8” in length. For any serious photographer where the 70-200mm focal range is often the most important second lens to own after the initial standards lens or mid range zooms. The fast aperture is extremely useful and important in low light environments or when shooting fast moving situations where a higher shutter speed demands maximum lights thru the lens. HSM ensures quiet and high speed AF as well as full-time manual focus capability. Super Multi-Layer lens coating reduces flare ghosting and assures high image quality throughout the entire zoom range. It has a minimum focusing distance of 55.1 inches throughout the entire zoom range and a maximum magnification ratio of 1:8 The rounded 9 blade diaphragm creates an attractive blur to the out of focus images. This lens is equipped with a petal-type hood. Its exceptional versatility as an all-around lens is perfect for journalists and wedding photographers. This latest version of the Sigma 70-200mm is well regarded for its outstanding image quality, light weight and ease of operation.

Sigma 70-200mm f/2.8 EX DG OS HSM Specifications

Lens Specifications
Lens Type Zoom Lens
Focal Length 70-200mm
Mount Type Canon EF, Nikon F, Sigma SA
Format Full Frame / FX
Compatible Format(s) Nikon FX/35mm, Film Nikon DX, 35mm Film / Full-Frame Digital Sensor Canon (APS-C)
Compatible with Teleconverters Yes
Zoom Ratio 2.85x
Maximum Reproduction Ratio 1:8
Optical Stabilization (Image Stabilization) Yes
Aperture Information
Aperture Ring No
Maximim Aperture f/2.8
Minimum Aperture f/22
Maximum Angle of View (Full Frame format) 34.3° - 12.3°
Optical Information
Lens Elements 22
Lens Groups 17
Diaphragm Blades 9
Extra-Low Dispersion Glass Elements 2 FLD elements 3 SLD elements
Nano Coating No
Super Multi-Layer Coating No
Focus Information
Focus Autofocus
Built-in Focus Motor Yes
Hyper Sonic Motor (HSM) Yes
Internal Focusing Yes
Minimum Focus Distance 1.40m
Distance Information Yes
Filter Information
Filter Size 77mm
Accepts Filter Type Screw-on
Physical Characteristics
Weather / Dust Sealing Yes
Mount Material Metal
Tripod Collar Yes
Dimensions 86 x 197 mm
Weight 1.43kg
Other Information
Available in Colors Black

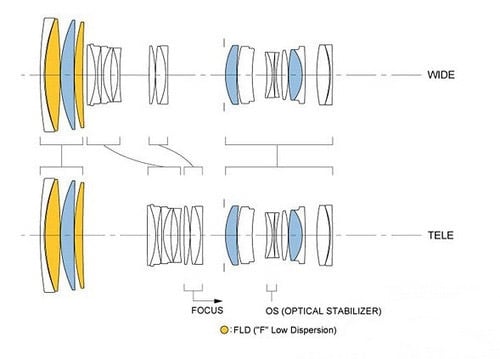

Lens Construction

Sigma APO 70-200mm f/2.8 EX DG OS HSM Lens Construction

MTF Chart

Sigma APO 70-200mm f/2.8 EX DG OS HSM Chart
