Lens Summary
Brand: Schneider
Also Known As: Schneider 80mm f/5.6 HM
Lens Type: Prime Lens
Format: Large Format
Focus: Manual Focus
Lens Mount: Large Format
Release Date: N/A
MSRP Price: $1374
Made in: Germany
Production Status: In Production

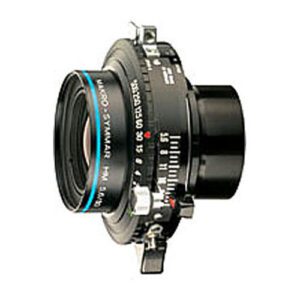

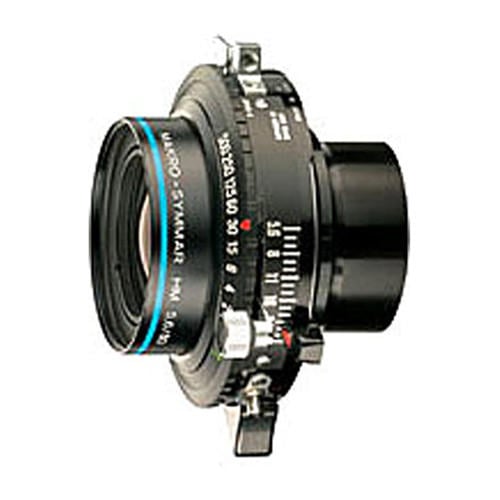

Lens Description: The Schneider 80mm f/5.6 Makro-Symmar HM Lens is a large format lens specifically designed for macro use, primarily for the 6x9 format. It can also be used upon smaller cameras, and even upon 4x5 cameras at reproduction ratios of 1:1 to 4:1. Within its recommended 1:4 to 4:1 reproduction ratio range, the Makro-Symmar HM produces images with superior resolution, contrast, and color correction. The difference versus a common-use large format lens is stunning. It is an apochromatic design, and incorporates costly ULD (Ultra-Low Dispersion) glass elements for the highest possible quality. The Makro-Symmar HM is meant to be used at larger apertures to limit the degradation of image quality caused by diffraction.
Schneider 80mm f/5.6 Makro-Symmar HM Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Prime Lens |
| Focal Length | 80mm |
| Mount Type | Large Format |
| Format | Large Format |
| Compatible Format(s) | Large Format |
| Compatible with Teleconverters | No |
| Image Stabilization | No |
| Aperture Information | |
| Aperture Ring | Yes |
| Maximim Aperture | f/5.6 |
| Minimum Aperture | f/32 |
| Optical Information | |
| Lens Elements | 8 |
| Lens Groups | 4 |
| Focus Information | |
| Focus | Manual Focus |
| Built-in Focus Motor | No |
| Filter Information | |
| Filter Size | 40.5mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | No |
| Mount Material | Metal |
| Weight | 200g |
| Other Information | |
| Available in Colors | Black |
There is a version without Copal shutter, instead has a manual iris ring…
For enlargers & factories CCD camera quality control or something.
The lens has coating, very strong metallic purple.
can be Used in 35mm with a bunch of ring adapters and helicoid m42 mounts.
Set to infinite, is sharper than most fixed lens 6x6cm cameras… Using the same film brand/model.
M32,5×0,5 – M42x1 rafcamera
