Lens Summary
Brand: Schneider
Also Known As: Schneider 480mm f/8.4 L
Lens Type: Prime Lens
Format: Large Format
Focus: Manual Focus
Lens Mount: Large Format
Release Date: N/A
MSRP Price: $4220
Made in: Germany
Production Status: In Production

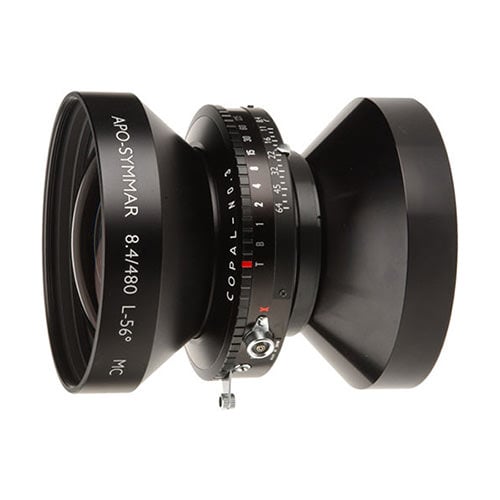

Lens Description: The Schneider 480mm f/8.4 Apo-Symmar L Lens is an all-purpose large format lens which gives the highest image reproduction quality possible in a broad range of applications. This lens is designed for use with 8x10 cameras as a telephoto lens, but can also be used upon the 11x14 ultra large format as a standard lens. This lens is enormous, with a 110mm rear barrel, and as such is designed primarily for use with larger view cameras as opposed to field cameras.
Schneider 480mm f/8.4 Apo-Symmar L Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Prime Lens |
| Focal Length | 480mm |
| Mount Type | Large Format |
| Format | Large Format |
| Compatible Format(s) | Large Format |
| Compatible with Teleconverters | No |
| Image Stabilization | No |
| Aperture Information | |
| Aperture Ring | Yes |
| Maximim Aperture | f/8.4 |
| Minimum Aperture | f/64 |
| Maximum Angle of View (APS-C or smaller format) | 56° |
| Optical Information | |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Focus Information | |
| Focus | Manual Focus |
| Built-in Focus Motor | No |
| Filter Information | |
| Filter Size | 105mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | No |
| Mount Material | Metal |
| Weight | 1.9kg |
| Other Information | |
| Available in Colors | Black |
