Lens Summary
Brand: Samsung
Also Known As: Samsung NX 16-50mm f/2-2.8 OIS
Lens Type: Zoom Lens
Format: APS-C / DX
Focus: Autofocus
Lens Mount: Samsung NX
Release Date: 2014-01-02
MSRP Price: $1299
Made in: Japan
Production Status: In Production
Lens Description: The 16-50mm f/2-2.8 S ED OIS Lens from Samsung features the NX mount and is the first model in their Premium "S" Series. It offers a 35mm-equivalent focal length range of 24.6-77mm, covering wide-angle to portrait-length perspectives. Its fast f/2.0 - 2.8 maximum aperture enables effective low-light shooting and shallow depth of field, and the 9-blade circular aperture diaphragm creates a pleasing blur in the out-of-focus regions of your images. The lens can be stopped down to f/22. The 16-50mm consists of 18 elements in 12 groups, including 3 aspherical, 2 ED (extra-low dispersion) and 2 XHR (eXtreme High Refractive) elements for exceptional clarity, detail and sharpness. Additionally, optical image stabilization counteracts motion blur for clear shots. The Ultra-Precise Stepping Motor (UPSM) improves upon the conventional Stepping Motor (SM), offering three times the precision in its ability to focus on subjects. As an added bonus, the lens is dust and splash-proof for extra durability.

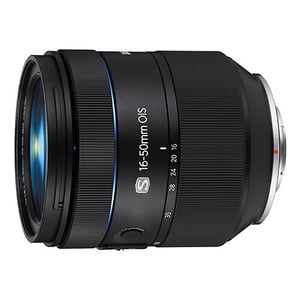

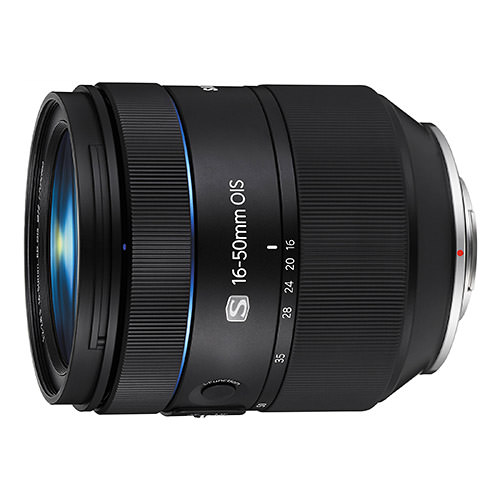

Samsung NX 16-50mm f/2-2.8 S ED OIS Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 16-50mm |
| Mount Type | Samsung NX |
| Format | APS-C / DX |
| Compatible Format(s) | APS-C/DX |
| Compatible with Teleconverters | No |
| Zoom Ratio | 3.1x |
| Maximum Reproduction Ratio | 0.19x |
| Image Stabilization | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/2-f/2.8 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 82.6° |
| Minimum Angle of View (APS-C or smaller format) | 31.4° |
| Optical Information | |
| Lens Elements | 18 |
| Lens Groups | 12 |
| Diaphragm Blades | 9 |
| Extra-Low Dispersion Glass Elements | 2 |
| Special Glass Elements | 2 XHR Elements |
| Aspherical Elements | 3 |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Stepper Motor (STM) | Yes |
| Minimum Focus Distance | 0.30m |
| Filter Information | |
| Filter Size | 72mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Dimensions | 81 x 97mm |
| Weight | 622g |
| Other Information | |
| Available in Colors | Black |
