Lens Summary
Brand: Samsung
Also Known As: Samsung 12-24mm f/4-5.6
Lens Type: Zoom Lens
Format: APS-C / DX
Focus: Autofocus
Lens Mount: Samsung NX
Release Date: 2012-09-17
MSRP Price: $559
Made in: South Korea
Production Status: In Production

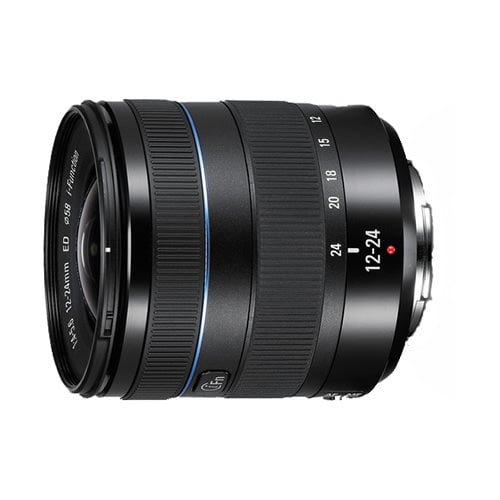

Lens Description: The 12-24mm f/4-5.6 ED Wide-Angle Zoom Lens from Samsung is an ultra wide-angle zoom lens for the Samsung NX line of cameras. Its 35mm format equivalent focal length is 18.5-37mm and its angle of view runs from 99º to 60.7º which puts it entirely in the wide-angle category. Two aspherical elements and one Extra-low Dispersion element reduce aberrations and provide sharp, color-accurate images.
Samsung NX 12-24mm f/4-5.6 ED Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 12-24mm |
| Mount Type | Samsung NX |
| Format | APS-C / DX |
| Compatible Format(s) | DSLR (APS-C Sensor) |
| Compatible with Teleconverters | No |
| Zoom Ratio | 2x |
| Maximum Reproduction Ratio | 0.14x |
| Image Stabilization | No |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/4-5.6 |
| Minimum Aperture | f/22-22 |
| Maximum Angle of View (APS-C or smaller format) | 99°-60.7° |
| Optical Information | |
| Lens Elements | 10 |
| Lens Groups | 8 |
| Diaphragm Blades | 7 (Rounded) |
| Extra-Low Dispersion Glass Elements | 1 |
| Aspherical Elements | 2 |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Stepper Motor (STM) | Yes |
| Minimum Focus Distance | 0.24m |
| Filter Information | |
| Filter Size | 58mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | No |
| Mount Material | Metal |
| Dimensions | 63.5 x 65.5mm |
| Weight | 208g |
| Other Information | |
| Available in Colors | Black |
