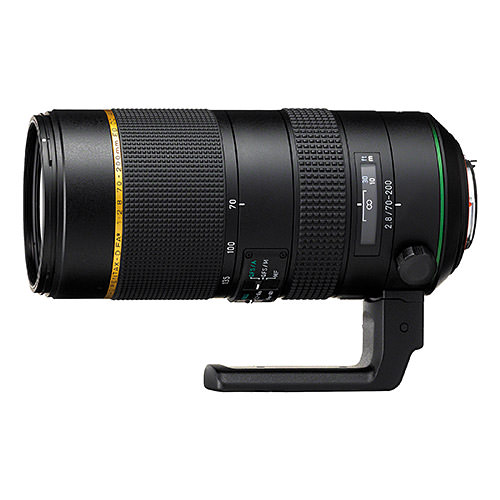

Pentax HD PENTAX-D FA* 70-200mm f/2.8 ED DC AW

Pentax HD PENTAX D FA 70-200mm f/2.8ED DC AW

Lens Summary

Brand: Pentax

Also Known As: Pentax 70-200mm f/2.8

Lens Type: Zoom Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Pentax K

Release Date: 2015-02-04

MSRP Price: $2296.95

Made in: Japan

Production Status: In Production

Lens Description: Pairing a versatile zoom range with a fast, constant f/2.8 maximum aperture, the HD PENTAX D FA* 70-200mm f/2.8 ED DC AW Lens is a telephoto zoom designed for Pentax K-mount DSLRs. Offering a 105-300mm-equivalent focal length range with APS-C cameras, this lens is particularly well-suited to sports, landscape, and wildlife uses, especially when working in trying light conditions. Extra-low dispersion glass elements have been incorporated within the optical design to minimize chromatic aberrations and distortions, as well as produce a high degree of sharpness from edge-to-edge. HD and Aero Bright coatings have also been applied to lens elements to reduce reflections and flare and a Super Protect coating also helps to shield the front and rear elements from dust, water, and oils. Further enabling its use in difficult conditions, this 70-200mm f/2.8 also features a weather-resistant construction with 13 separate seals to block moisture and dust from entering the lens.


Pentax HD PENTAX-D FA* 70-200mm f/2.8 ED DC AW Specifications

Lens Specifications
Lens TypeZoom Lens
Focal Length70-200mm
Mount TypePentax K
FormatFull Frame / FX
Compatible Format(s)Full Frame / APS-C
Compatible with TeleconvertersYes
Maximum Reproduction Ratio0.13x
Shake Reduction (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/2.8
Minimum Aperturef/22
Maximum Angle of View (Full frame or larger format)34.5°
Minimum Angle of View (Full frame or larger format)12.5°
Optical Information
Lens Elements19
Lens Groups16
Diaphragm Blades9 (Rounded)
Extra-Low Dispersion Glass Elements2
Special Glass Elements2 Super ED Elements, 4 Extraordinary-low Dispersion Elements
HD CoatingYes
Fluorine CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Supersonic Direct-drive Motor (SDM)Yes
Internal FocusingYes
Minimum Focus Distance1.2m
Filter Information
Filter Size77mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingYes
Mount MaterialMetal
Tripod CollarYes
Dimensions91.5 x 203mm
Weight1755g
Other Information
Available in ColorsBlack

Lens Construction

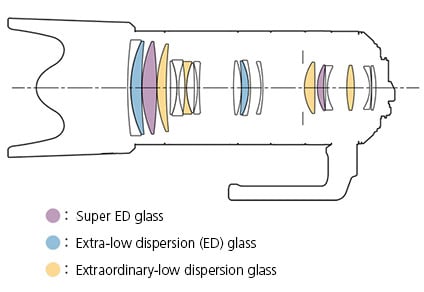

Pentax HD PENTAX D FA 70-200mm f/2.8ED DC AW Lens Construction

MTF Chart

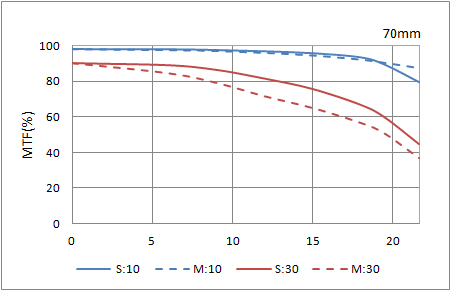

Pentax HD PENTAX D FA 70-200mm f/2.8ED DC AW MTF Wide

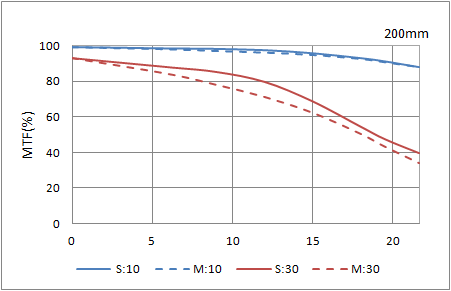

Pentax HD PENTAX D FA 70-200mm f/2.8ED DC AW MTF Tele
