Lens Summary
Brand: Panasonic
Also Known As: Panasonic 45-175mm f/4.0-5.6
Lens Type: Zoom Lens
Format: Micro Four Thirds
Focus: Autofocus
Lens Mount: Micro Four Thirds
Release Date: 2011-08-26
MSRP Price: $362.97
Made in: Japan
Infrared Rating: Good
Production Status: In Production

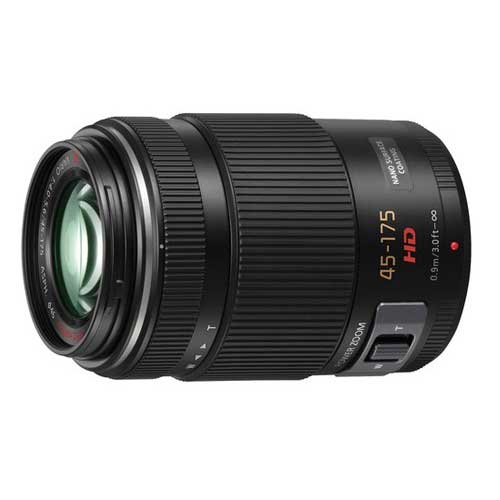

Lens Description: Panasonic's Lumix G X Vario PZ 45-175mm f/4.0-5.6 Zoom OIS Lens (Black) is a compact 3.8x telephoto zoom lens for Micro 4/3 cameras. With a 90-350mm (equivalent in 35mm format) range, this lens is only 2.42 x 3.54
Panasonic Lumix G X Vario PZ 45-175mm f/4-5.6 ASPH OIS Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 45-175mm |
| Mount Type | Micro Four Thirds |
| Format | Micro Four Thirds |
| Compatible Format(s) | Micro Four Thirds |
| Compatible with Teleconverters | No |
| Zoom Ratio | 3.88x |
| MegaOIS / PowerOIS (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximum Aperture | f/4.0-5.6 |
| Minimum Aperture | f/22-22 |
| Optical Information | |
| Lens Elements | 14 |
| Lens Groups | 10 |
| Diaphragm Blades | 7 |
| Extra-Low Dispersion Glass Elements | 2 |
| Aspherical Elements | 2 |
| Nano Surface Coating | No |
| Multi-Coating | No |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Silent Wave / UltraSonic Motor | No |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.90m |
| Filter Information | |
| Filter Size | 46mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | No |
| Mount Material | Metal |
| Tripod Collar | No |
| Dimensions | 61.6 x 90mm |
| Weight | 210g |
| Other Information | |
| Available in Colors | Black |
Lens Construction

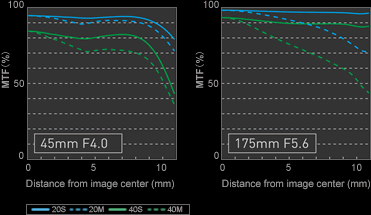

MTF Chart
MTF Chart
