Lens Summary
Brand: Panasonic
Also Known As: Panasonic 7-14mm f/4
Lens Type: Zoom Lens
Format: Micro Four Thirds
Focus: Autofocus
Lens Mount: Micro Four Thirds
Release Date: 2009-03-03
MSRP Price: $959
Infrared Rating: Good
Production Status: In Production
Lens Description: The Panasonic Lumix G Vario 7-14mm f/4.0 ASPH. Lens for G1 & GH1 Digital SLR Cameras is an ultra-wide angle zoom lens which has two aspherical lenses and four ED multi-coated elements to minimize ghosting and flare. It has an amazing 114° angle of view and large-diameter glass molded lens elements that help display brightness over the entire zoom range.
Panasonic Lumix G Vario 7-14mm f/4 ASPH Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 7-14mm |
| Mount Type | Micro Four Thirds |
| Format | Micro Four Thirds |
| Compatible Format(s) | Micro Four Thirds |
| Compatible with Teleconverters | No |
| Zoom Ratio | 2x |
| Maximum Reproduction Ratio | 1:12.5 |
| MegaOIS / PowerOIS (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/4 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 114°-75° |
| Optical Information | |
| Lens Elements | 16 |
| Lens Groups | 12 |
| Diaphragm Blades | 7 |
| Extra-Low Dispersion Glass Elements | 4 |
| Aspherical Elements | 2 |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.25m |
| Physical Characteristics | |
| Weather / Dust Sealing | No |
| Mount Material | Metal |
| Dimensions | 70 x 83mm |
| Weight | 300g |
| Other Information | |
| Available in Colors | Black |

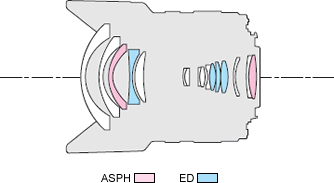

Lens Construction

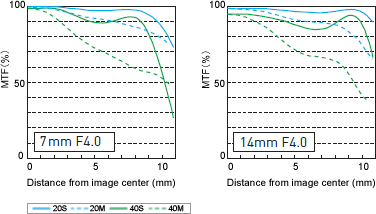

MTF Chart
MTF Chart
