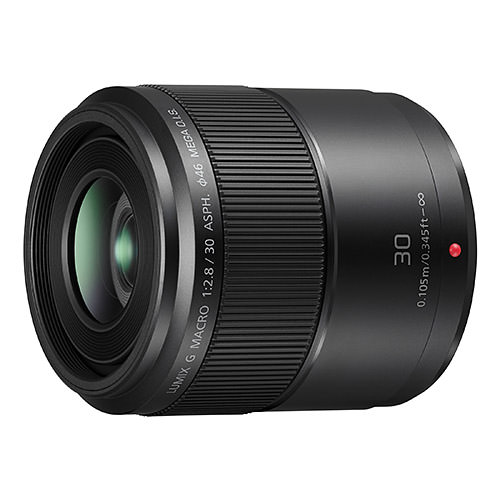

Panasonic Lumix G Macro 30mm f/2.8 ASPH Mega OIS

Panasonic Lumix G Macro 30mm f2.8 ASPH Mega OIS

Lens Summary

Brand: Panasonic

Also Known As: Panasonic 30mm f/2.8 Macro

Lens Type: Prime Lens

Format: Micro Four Thirds

Focus: Autofocus

Lens Mount: Micro Four Thirds

Release Date: 2015-02-23

MSRP Price: $399

Made in: China

Production Status: In Production

Lens Description: Designed for close-up shooting, the LUMIX G MACRO 30mm f/2.8 ASPH. MEGA O.I.S. from Panasonic is a 60mm-equivalent prime lens designed for Micro Four Thirds mirrorless digital cameras. Its macro capabilities enable a minimum focusing distance of 4.1" along with a 1:1 magnification ratio for life-size imaging of nearby subjects. One aspherical element helps to control chromatic aberrations and distortions and a multi-layer coating reduces ghosting and lens flare for increased contrast and color fidelity. In addition to the optical performance, the lens also features a MEGA Optical Image Stabilizer (O.I.S.), which compensates for the effects of camera shake for sharper hand-held shooting. A stepping AF motor and internal focusing design offer fast, smooth, and near-silent focusing performance and the rounded 7-blade diaphragm contributes to a pleasing out-of-focus quality when working with selective focus and shallow depth of field techniques.


Panasonic Lumix G Macro 30mm f/2.8 ASPH Mega OIS Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length30mm
Mount TypeMicro Four Thirds
FormatMicro Four Thirds
Compatible Format(s)Micro Four Thirds
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:1
MegaOIS / PowerOIS (Image Stabilization)Yes
Aperture Information
Aperture RingNo
Maximim Aperturef/2.8
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)40°
Optical Information
Lens Elements9
Lens Groups9
Diaphragm Blades7 (Rounded)
Aspherical Elements1
Multi-CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Minimum Focus Distance0.10m
Filter Information
Filter Size46mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions58.8 x 63.5mm
Weight180g
Other Information
Available in ColorsBlack

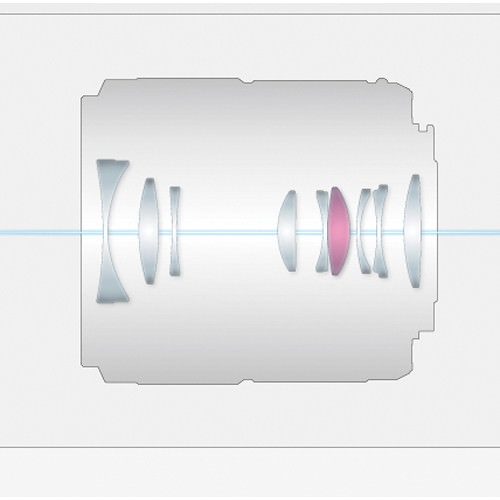

Lens Construction

Panasonic Lumix G Macro 30mm f/2.8 ASPH Mega OIS Lens Construction

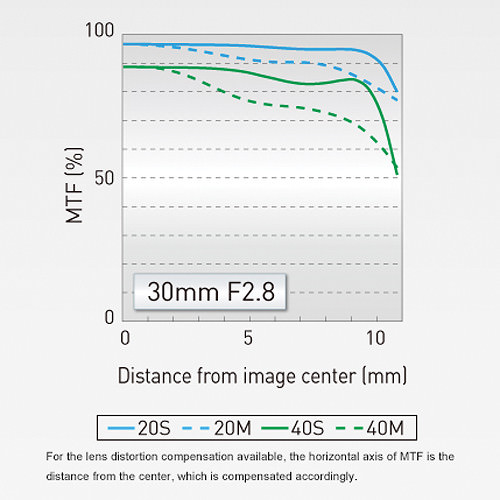

MTF Chart

Panasonic Lumix G Macro 30mm f/2.8 ASPH Mega OIS MTF Chart
