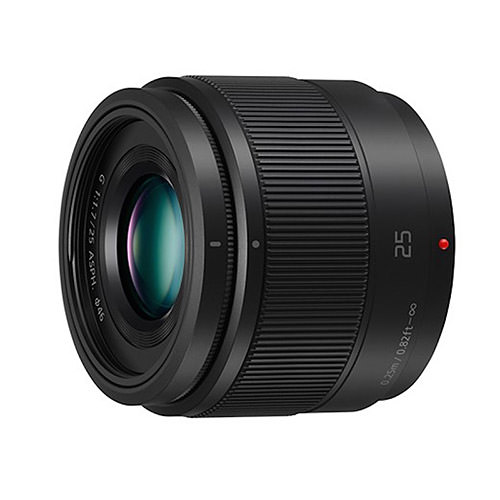

Panasonic Lumix G 25mm f/1.7 ASPH

Panasonic Lumix G 25mm f/1.7 ASPH

Lens Summary

Brand: Panasonic

Also Known As: Panasonic 25mm f/1.7

Lens Type: Prime Lens

Format: Micro Four Thirds

Focus: Autofocus

Lens Mount: Micro Four Thirds

Release Date: 2015-09-02

MSRP Price: $249

Made in: China

Production Status: In Production

Lens Description: Achieving f/1.7 high-speed aperture, the LUMIX G 25mm F1.7 ASPH. keeps its size compact and weight light. The large aperture allows a beautiful soft focus for photo and video to be even more impressive and encourages users to capture the subject without using a flash even in dimly-lit conditions. The new lens system is comprised of 8 elements in 7 groups featuring two aspherical lenses and an Ultra-High Refractive Index (UHR) Lens. It incorporates a superior inner focus system which enables excellent resolution and contrast from the closest focusing distance to infinity. The inclusion of a stepping motor makes the focusing action smooth and silent for use in both still and video recording. Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. A highly reliable metal mount assures durability for active use, and uses multi-coated lens elements that minimize ghosts and flare to further enhance its shooting performance.


Panasonic Lumix G 25mm f/1.7 ASPH Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length25mm
Mount TypeMicro Four Thirds
FormatMicro Four Thirds
Compatible Format(s)Full Frame / APS-C
Compatible with TeleconvertersNo
Maximum Reproduction Ratio0.14x
MegaOIS / PowerOIS (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/1.7
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)47°
Optical Information
Lens Elements8
Lens Groups7
Diaphragm Blades7
Special Glass Elements1 UHR Element
Aspherical Elements2
Multi-CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Silent Wave / UltraSonic MotorYes
Internal FocusingYes
Minimum Focus Distance0.25m
Filter Information
Filter Size46mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions60.8 x 52mm
Weight125g
Other Information
Available in ColorsBlack

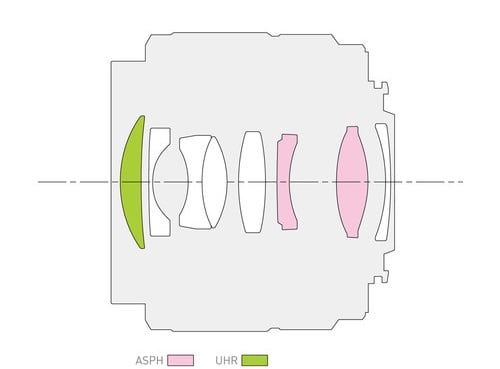

Lens Construction

Panasonic Lumix G 25mm f/1.7 ASPH Lens Construction

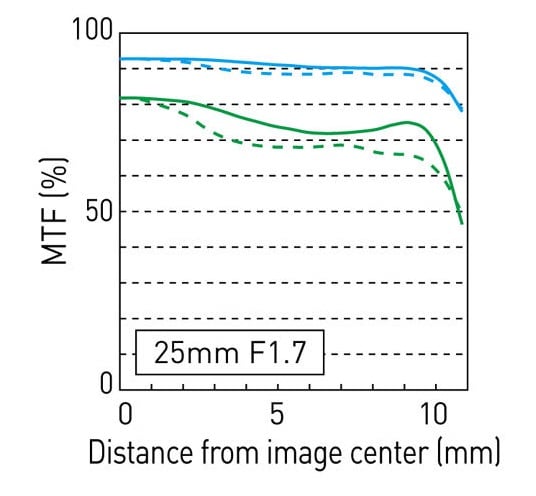

MTF Chart

Panasonic Lumix G 25mm f/1.7 ASPH MTF Chart
