Panasonic Lumix G 14mm f/2.5 ASPH

Panasonic Lumix G 14mm f/2.5 ASPH

Lens Summary

Brand: Panasonic

Also Known As: Panasonic 14mm f/2.5

Lens Type: Prime Lens

Format: Micro Four Thirds

Focus: Autofocus

Lens Mount: Micro Four Thirds

Release Date: 2010-09-21

MSRP Price: $324.95

Made in: Japan

Infrared Rating: Good

Production Status: In Production

Lens Description: The interchangeable single focal length lens Lumix G 14mm f/2.5 ASPH features a 14mm (35 mm camera equivalent: 28 mm) wide angle and F2.5 brightness with sharp, high contrast image rendering. Taking advantage of the wide angle of view and deep depth of field, the compact LUMIX G 14 mm / F2.5 ASPH offers excellent performance in shooting not only landscapes but also snapshot or indoor shooting. Comprising of six lenses in five groups including three aspherical lenses, the lens system achieves both high compactness with short overall length of 20.5mm and high optical performance. It also excels in shooting subjects with components of straight line including architectures thanks to the minimized distortion. The integration of stepping motor and inner focus drive system realizes the use of silent, high speed contrast AF. Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. Highly reliable metal mount assures durability for active use and uses multi-coated lens elements that minimize ghosts and flare to further enhance its shooting performance.


Panasonic Lumix G 14mm f/2.5 ASPH Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length14mm
Mount TypeMicro Four Thirds
FormatMicro Four Thirds
Compatible Format(s)Micro Four Thirds
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:10
MegaOIS / PowerOIS (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/2.5
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)75°
Optical Information
Lens Elements6
Lens Groups5
Diaphragm Blades7
Aspherical Elements3
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Internal FocusingYes
Minimum Focus Distance0.18m
Filter Information
Filter Size46mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions5.56 x 2.06cm
Weight55g
Other Information
Available in ColorsBlack

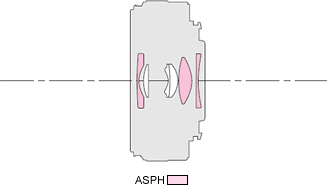

Lens Construction

Panasonic Lumix G 14mm f/2.5 ASPH Diagram

MTF Chart

Panasonic Lumix G 14mm f/2.5 ASPH MTF Chart
