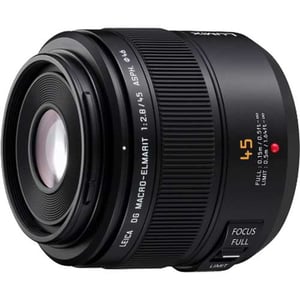

Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH OIS

Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH OIS

Lens Summary

Brand: Panasonic

Also Known As: Panasonic 45mm f/2.8 OIS

Lens Type: Prime Lens

Format: Micro Four Thirds

Focus: Autofocus

Lens Mount: Micro Four Thirds

Release Date: 2009-09-02

MSRP Price: $719

Made in:

Infrared Rating: Good

Production Status: In Production

Lens Description: The world's first Leica Micro Four Thirds lens, the Leica DG Macro-Elmarit 45mm/F2.8 ASPH/MEGA O.I.S., features exceptional image quality in a compact size. The Leica DG Macro-Elmarit 45mm/F2.8 ASPH/MEGA O.I.S. (equivalent to 90mm on a 35mm film camera), features outstanding image quality that meets the renowned Leica standard. The new Leica lens uses both an aspherical lens and an ED lens comprised of fourteen lenses arranged in ten groups. This lens takes advantage of the Micro Four Thirds specifications to achieve a dramatic size decrease, while also minimizing distortion and glare. Panasonic's Mega Optical Image Stabilizer (O.I.S.) suppresses the blurring that is commonly caused by hand-shake, making it easy to shoot sharply-focused macro shots even in dimly-lit places without the need for a tripod. The Leica DG Macro-Elmarit 45mm/F2.8 ASPH/MEGA O.I.S. lens incorporates an inner focus motor system that makes action smooth and silent when capturing still and video content. By flipping a switch on the lens barrel, the minimum focus distance can instantly be changed to 150mm or 500mm (approximately 5.9 inches or 19.7 inches respectively). This lens excels when taking portraits, mid-range snapshots and landscapes, in addition to macro shots.


Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH OIS Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length45mm
Mount TypeMicro Four Thirds
FormatMicro Four Thirds
Compatible Format(s)Micro Four Thirds
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:1
MegaOIS / PowerOIS (Image Stabilization)Yes
Aperture Information
Aperture RingNo
Maximum Aperturef/2.8
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)27°
Optical Information
Lens Elements14
Lens Groups10
Diaphragm Blades7
Extra-Low Dispersion Glass Elements1
Aspherical Elements1
Nano Surface CoatingNo
Multi-CoatingNo
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Silent Wave / UltraSonic MotorNo
Internal FocusingYes
Minimum Focus Distance0.15m
Filter Information
Filter Size46mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Tripod CollarNo
Dimensions63 x 62mm
Weight225g
Other Information
Available in ColorsBlack

Lens Construction

MTF Chart

Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH OIS MTF Chart
