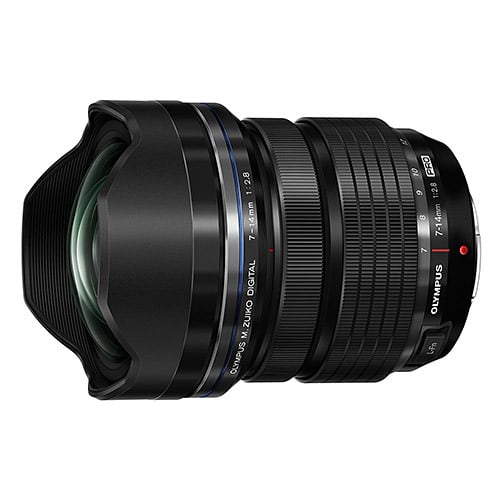

Lens Summary
Brand: Olympus
Also Known As: Olympus 7-14mm f/2.8
Lens Type: Zoom Lens
Format: Micro Four Thirds
Focus: Autofocus
Lens Mount: Micro Four Thirds
Release Date: 2015-05-12
MSRP Price: $1299.99
Made in: Japan
Production Status: In Production
Lens Description: The M.ZUIKO DIGITAL ED 7-14mm f/2.8 PRO is the ideal lens for wide-angle shooting needs in any condition. This premium lens includes weather sealing in 11 locations, enabling use in rain and snow, or even on the beach, where other lenses may not be able to withstand ocean spray or dust penetration. At 534 grams, or just under 19 ounces, the M.ZUIKO DIGITAL ED 7-14mm f/2.8 PRO is about 45 percent lighter than similar competitor products, eliminating heavy equipment that may slow the user down. The lens also includes premium close-up shooting capabilities, thanks to the minimum working distance of just 7.5cm, offering extremely sharp capture capability, even at the very edges of an image. Three Super ED lenses, one ED lens and two EDA lenses help to minimize peripheral chromatic aberration, while the ZERO (Zuiko Extra-Low Reflective Optical) Coating aids in minimizing ghosting. The lens also boasts an L-Fn button with 27 assignable functions and a Manual Focus Clutch with built-in Hyper Focal Scale. The M.ZUIKO DIGITAL ED 7-14mm f/2.8 PRO lens comes with a fixed lens hood and pinch-style lens cap LC-79 for added protection.
Olympus M.Zuiko Digital ED 7-14mm f/2.8 Pro Specifications
| Lens Specifications | |
|---|---|
| * Supplied accessories may differ depending on country or area | |
| Lens Type | Zoom Lens |
| Focal Length | 7-14mm |
| Mount Type | Micro Four Thirds |
| Format | Micro Four Thirds |
| Compatible Format(s) | Micro Four Thirds |
| Compatible with Teleconverters | No |
| Maximum Reproduction Ratio | 0.11x |
| Image Stabilization | No |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/2.8 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 114° |
| Minimum Angle of View (APS-C or smaller format) | 75° |
| Optical Information | |
| Lens Elements | 14 |
| Lens Groups | 11 |
| Diaphragm Blades | 7 (rounded) |
| Extra-Low Dispersion Glass Elements | 2 Aspherical ED lenses, 1 DSA lens, 3 Super ED lenses, 1 ED lens, 2 HR lenses |
| Aspherical Elements | 1 |
| Anti-Reflective Coating | Yes |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Minimum Focus Distance | 0.2m |
| Filter Information | |
| Filter Size | 01/01/1900 |
| Accepts Filter Type | 01/01/1900 |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Dimensions | 78.9 x 105.8mm |
| Weight | 534g |
| Other Information | |
| Available in Colors | Black |
| Supplied Accessories | Lens Cap (LC-79), Lens Rear Cap (LR-2), Lens Case (LSC-0914) |
Lens Construction

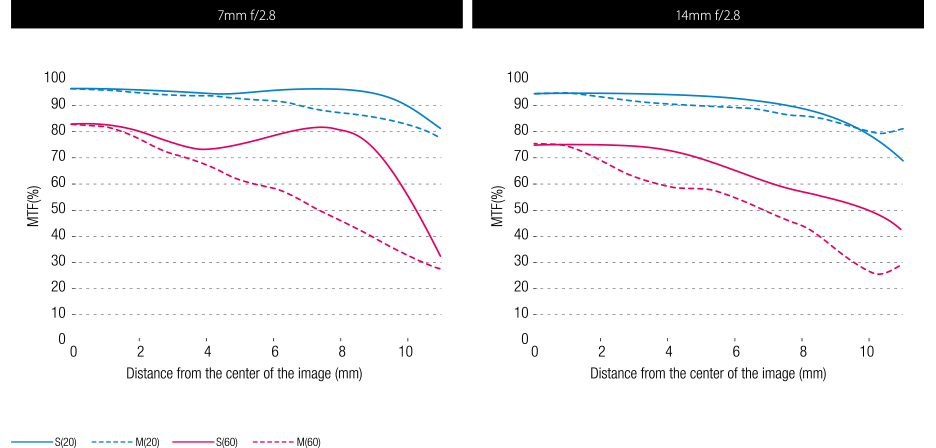

MTF Chart
