Lens Summary
Brand: Olympus
Also Known As: Olympus 40-150mm f/2.8 Pro
Lens Type: Zoom Lens
Format: Micro Four Thirds
Focus: Autofocus
Lens Mount: Micro Four Thirds
Release Date: 2014-09-15
MSRP Price: $1499
Made in: Japan
Production Status: In Production
Lens Description: With a premium metal construction and a variety of specialized lens elements the M.Zuiko Digital ED 40-150mm f/2.8 PRO Lens from Olympus will provide Micro Four Thirds users with a compact, yet durable and sharp telephoto zoom lens. It has a 35mm equivalent focal length of 80-300mm for covering a wide range of telephoto lengths and has a fast constant f/2.8 aperture that matches other professional grade lenses. Additionally, it utilizes a Dual Voice Coil Motor, or VCM, autofocus system that features two separate lens groups that are each controlled by their own linear drive motor. This results in incredibly fast performance that is nearly friction-free and very quiet.
Olympus M.Zuiko Digital ED 40-150mm f/2.8 Pro Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 40-150mm |
| Mount Type | Micro Four Thirds |
| Format | Micro Four Thirds |
| Compatible Format(s) | Micro Four Thirds |
| Compatible with Teleconverters | Yes |
| Maximum Reproduction Ratio | 0.42x |
| Image Stabilization | No |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/2.8 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 30° |
| Minimum Angle of View (APS-C or smaller format) | 8.2° |
| Optical Information | |
| Lens Elements | 16 |
| Lens Groups | 10 |
| Diaphragm Blades | 9 (Rounded) |
| Extra-Low Dispersion Glass Elements | 5 |
| Special Glass Elements | 1 HD Element |
| Aspherical Elements | 1 |
| Nano Coating | Yes |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Silent Wave / UltraSonic Motor | Yes |
| Internal Focusing | Yes |
| Filter Information | |
| Filter Size | 72mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Tripod Collar | Yes |
| Dimensions | 79.4 x 160mm |
| Weight | 880g |
| Other Information | |
| Available in Colors | Black |

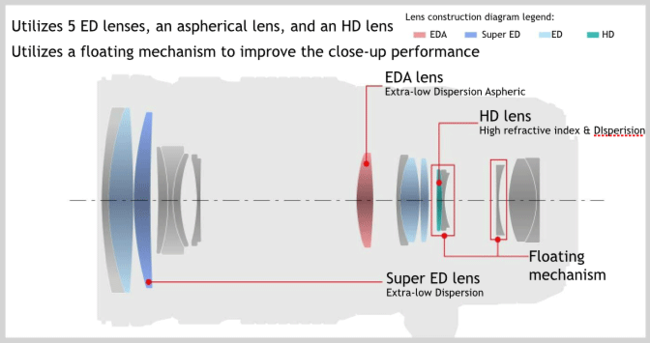

Lens Construction

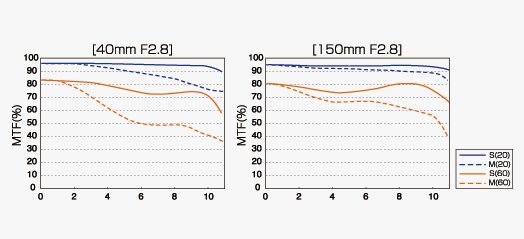

MTF Chart
