Lens Summary
Brand: Nikon
Also Known As: Nikon 600mm f/4D IF-ED II
Lens Type: Prime Lens
Format: Full Frame / FX
Focus: Autofocus
Lens Mount: Nikon F
Release Date: 2006-01-01
MSRP Price: N/A
Made in: Japan
Production Status: Discontinued
Lens Description: Powerful super-telephoto for distant fast-moving subjects and wildlife.
Nikon AF-S NIKKOR 600mm f/4D IF-ED II Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Prime Lens |
| Focal Length | 600mm |
| Mount Type | Nikon F |
| Format | Full Frame / FX |
| Compatible Format(s) | 35mm SLR |
| Compatible with Teleconverters | Yes |
| Maximum Reproduction Ratio | 1:8.6 |
| Vibration Reduction (Image Stabilization) | No |
| Aperture Information | |
| Aperture Ring | Yes |
| Maximim Aperture | f/4 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (Full frame or larger format) | 4° |
| Optical Information | |
| Lens Elements | 10 |
| Lens Groups | 7 |
| Diaphragm Blades | 9 |
| Extra-Low Dispersion Glass Elements | 3 |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Silent Wave Motor (SWM) | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 5.6m |
| Filter Information | |
| Filter Size | 52mm |
| Accepts Filter Type | Slip-in |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Tripod Collar | Yes |
| Dimensions | 166×430.5mm |
| Weight | 4750g |
| Other Information | |
| Available in Colors | Black or White |

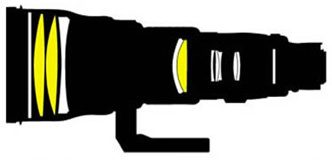

Lens Construction
MTF Chart
The official user manual from Nikon states 10.5 lbs which translates to 4750g.
Hello Nassim, I am a big fan of your site ! I had a question on the Nikkon AF-S Nikkor 600mm f4 IF-ED II: I noticed on other sites/reviews that they mention a MFD of 6m and a weight of 5900g i.o. 5.6m and 4750g in your file. Would you be so kind to double check and let me know who is right ? Thanks ! Bernard
The lens mentioned above is the improved version – see „II“ – which has been modified compared to the first AF-S version of the 600mm f4. All the above date are right for this version. (MFD 6m and 5900g weight are also correct, but only for the first version). The II version has also two tripod mounting feet, which you can replace.
