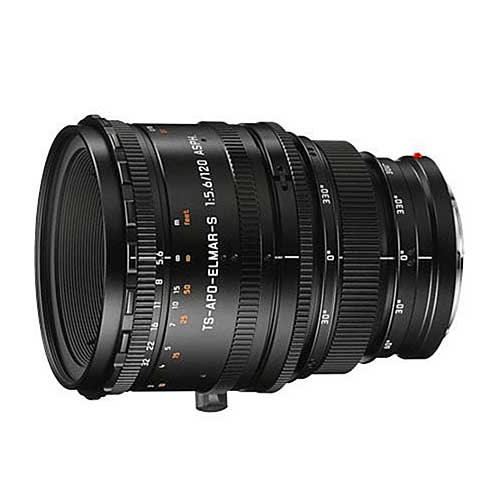

Leica TS-APO-Elmar-S 120mm f/5.6 ASPH

Leica TS APO 120mm f/5.6 Elmar-S ASPH

Lens Summary

Brand: Leica

Also Known As: Leica Elmar-S 120mm f/5.6

Lens Type: Prime Lens

Format: Full Frame / FX

Focus: Manual Focus

Lens Mount: Leica S

Release Date: N/A

MSRP Price: $7350

Made in: Germany

Production Status: In Production

Lens Description: The Leica TS-APO-Elmar-S 120 mm f/5.6 ASPH. allows control of perspectives and the location of the plane of focus. Perspectives remain unchanged when altering the viewing angle. This allows the correction of converging verticals in architectural photos, for example. Tilting the lens permits precise placement of the plane of focus so that a flat object viewed from the side is completely sharp at maximum aperture. Conversely, tilting the plane of focus in the opposite direction to the elongation of the subject may be used to significantly reduce depth of focus


Leica TS-APO-Elmar-S 120mm f/5.6 ASPH Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length120mm
Mount TypeLeica S
FormatFull Frame / FX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor DSLR
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:5.3
MegaOIS / PowerOIS (Image Stabilization)No
Aperture Information
Aperture RingYes
Maximim Aperturef/5.6
Minimum Aperturef/32
Maximum Angle of View (Full frame or larger format)23.6°
Optical Information
Lens Elements6
Lens Groups4
Aspherical Elements1
Focus Information
FocusManual Focus
Built-in Focus MotorNo
Minimum Focus Distance0.95m
Filter Information
Filter Size95mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions108 x 144mm
Weight1110g
Other Information
Available in ColorsBlack

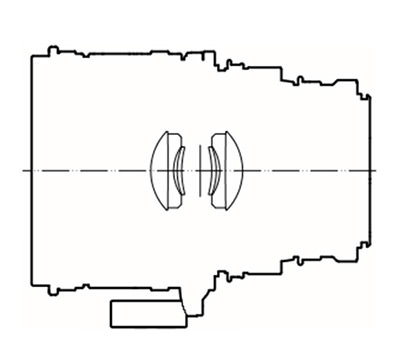

Lens Construction

Leica TS-APO-Elmar-S 1200mm f/5.6 ASPH Diagram

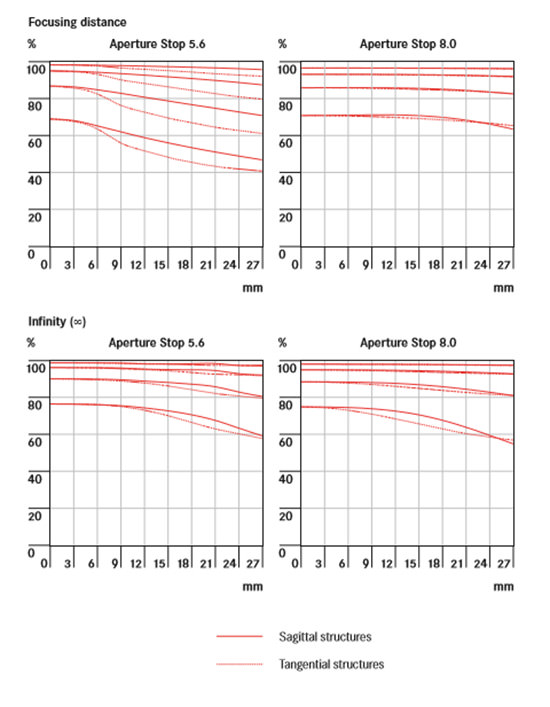

MTF Chart

Leica TS-APO-Elmar-S 120mm f/5.6 ASPH MTF
