Leica Macro-Elmar-M 90mm f/4

Leica Macro-Elmar-M 90mm f/4

Lens Summary

Brand: Leica

Also Known As: Leica Elmar 90mm f/4 Macro

Lens Type: Prime Lens

Format: Full Frame / FX

Focus: Manual Focus

Lens Mount: Leica M

Release Date: 2006-09-14

MSRP Price: $3995

Made in: Germany

Production Status: In Production

Lens Description: With the Leica Macro-Adapter-M this lens permits macro shots to a magnification of 1:3. Without the adapter, it serves as a compact 90 mm telephoto lens. In combination with the Tri-Elmar, this lightweight telephoto lens provides an excellent, universally usable compact system for traveling. When retracted, it is no larger than a 50 mm lens.


Leica Macro-Elmar-M 90mm f/4 Specifications

Lens Specifications
Lens Type Prime Lens
Focal Length 90mm
Mount Type Leica M
Format Full Frame / FX
Compatible Format(s) 35mm Film / Full-Frame Digital Sensor DSLR (APS-C Sensor)
Compatible with Teleconverters No
Maximum Reproduction Ratio 1:3
MegaOIS / PowerOIS (Image Stabilization) No
Aperture Information
Aperture Ring Yes
Maximim Aperture f/4
Minimum Aperture f/22
Maximum Angle of View (Full Frame format) 27°
Optical Information
Lens Elements 4
Lens Groups 4
Diaphragm Blades 10
Nano Surface Coating No
Multi-Coating No
Focus Information
Focus Manual Focus
Built-in Focus Motor No
Silent Wave / UltraSonic Motor No
Minimum Focus Distance 0.77m
Distance Information Yes
Filter Information
Filter Size 39mm
Accepts Filter Type Screw-on
Physical Characteristics
Weather / Dust Sealing Yes
Mount Material Metal
Tripod Collar No
Dimensions 52 x 41mm
Weight 240g
Other Information
Available in Colors Black

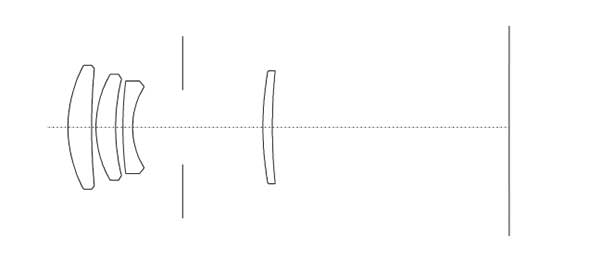

Lens Construction

Leica Macro-Elmar-M 90mm f/4 DIagram

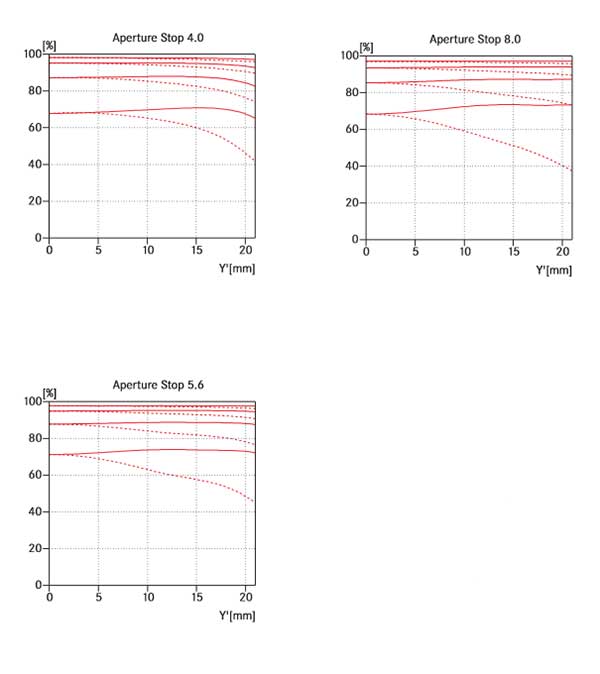

MTF Chart

Leica Macro-Elmar-M 90mm f/4 MTF chart
