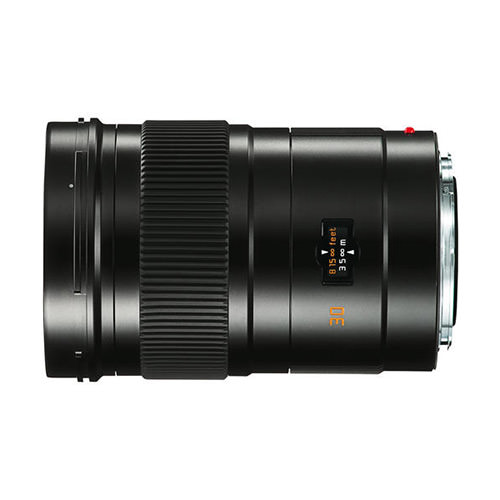

Leica Elmarit-S 30mm f/2.8 ASPH

Lens Summary

Brand: Leica

Also Known As: Leica Elmarit-S 30mm f/2.8 ASPH

Lens Type: Prime Lens

Format: Leica S

Focus: Autofocus

Lens Mount: Leica S

Release Date: N/A

MSRP Price: $7495

Made in: Germany

Production Status: In Production

Lens Description: The angle of view of the Leica Elmarit-S 30 mm f/2.8 ASPH. corresponds to that of a 24 mm lens in 35 mm format and opens up new creative horizons in image composition – in particular for indoor architectural and landscape photography. Unsurpassed excellence in colour and contrast rendition, the highest resolution and almost complete freedom from distortion guarantee perfect images at all apertures and throughout the entire focusing range. This lens is also available with a central shutter.


Leica Elmarit-S 30mm f/2.8 ASPH Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length30mm
Mount TypeLeica S
FormatLeica S
Compatible Format(s)Leica S bayonet
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:11
MegaOIS / PowerOIS (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/2.8
Minimum Aperturef/22
Maximum Angle of View (Full frame or larger format)84°
Optical Information
Lens Elements13
Lens Groups9
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Minimum Focus Distance0.5m
Physical Characteristics
Weather / Dust SealingYes
Mount MaterialMetal
Dimensions88 x 12mm
Weight1.06kg
Other Information
Available in ColorsBlack

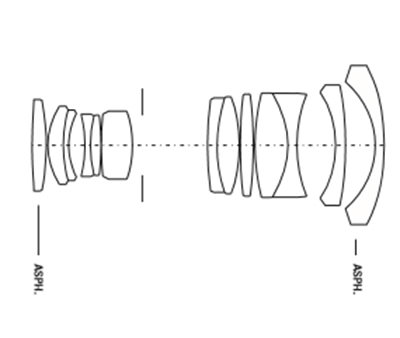

Lens Construction

Leica Elmarit-S 30mm f/2.8 ASPH Diagram

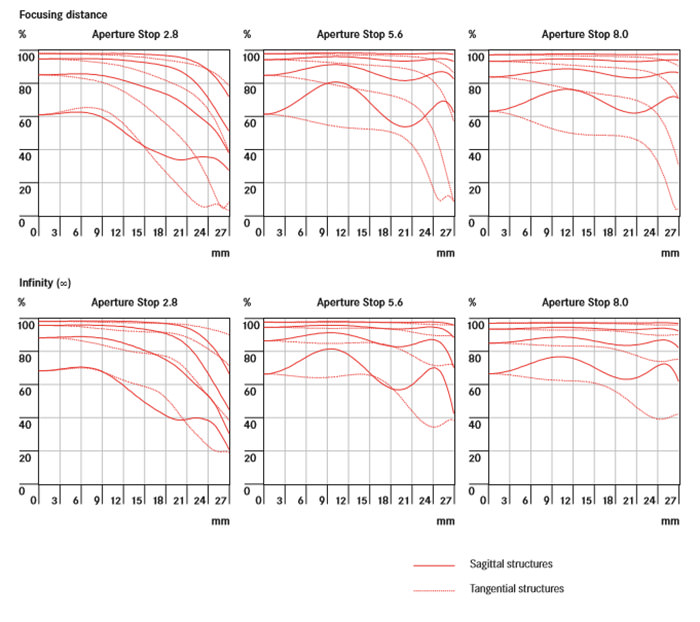

MTF Chart

Leica Elmarit-S 30mm f/2.8 ASPH MTF Chart
