Fuji XF 8-16mm f/2.8 R LM WR

Fujifilm XF 8-16mm f:2.8 R LM WR

Lens Summary

Brand: Fujifilm

Also Known As: Fujifilm XF 8-16mm f/2.8 R LM WR

Lens Type: Zoom Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Fujifilm X

Release Date: 2018-07-20

MSRP Price: $1999.95

Made in: Japan

Production Status: In Production

Manufacturer Link: Product Page

Lens Description: Capture the world with this ultra-wide-angle XF 8-16mm f/2.8 R LM WR Lens from Fujifilm. With four aspherical and six ED lens elements, including three super ED elements that specifically target lateral chromatic aberration, this lens offers exceptional control over fringing. A Nano-GI coating on the front two lens elements helps reduce ghosting and flare. Also in the lens is a field curvature correction element that can adjust position depending on the zoom. This element helps retain sharpness and reduces optical distortion that is normally found in ultra-wide angle lenses. Autofocus is powered by an internal linear motor that provides quick, quiet, and accurate focus. The lens is also weather sealed at 11 points and can withstand temperatures as cold as 14°F for use in adverse conditions.

Photography Life Review Summary: Without a doubt, Fuji has done a fine job with the XF 8-16mm f/2.8 R LM WR lens. It is an optically solid lens with very consistent sharpness across the whole focal length range – something many other zoom lenses struggle with in comparison. Read the full Fuji XF 8-16mm f/2.8 R LM WR Review by Photography Life.

Fuji XF 8-16mm f/2.8 R LM WR Specifications

Lens Specifications
* Supplied accessories may differ depending on country or area
Lens TypeZoom Lens
Focal Length8-16mm
Mount TypeFujifilm X
FormatAPS-C / DX
Compatible Format(s)APS-C
Compatible with TeleconvertersNo
Zoom Ratio2x
Maximum Reproduction Ratio0.1x
Image StabilizationNo
Aperture Information
Aperture RingYes
Maximim Aperturef/2.8
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)121°
Minimum Angle of View (APS-C or smaller format)83.2°
Optical Information
Lens Elements20
Lens Groups13
Diaphragm Blades9 (Rounded)
Extra-Low Dispersion Glass Elements3
Special Glass Elements3 Super ED
Aspherical Elements4
Nano CoatingYes
Fluorine CoatingYes
Focus Information
Built-in Focus MotorYes
Stepper Motor (STM)Yes
Internal FocusingYes
Minimum Focus Distance9.84" / 25 cm
Distance InformationYes
Filter Information
Filter SizeN/A
Accepts Filter TypeN/A
Physical Characteristics
Weather / Dust SealingYes
Mount MaterialMetal
Dimensions3.46 (Diameter) x 4.78" (L) / 8.8 x 12.15 cm
Weight1.77 lb / 805 g
Other Information
Available in ColorsBlack
Supplied AccessoriesFLCP-8-16 Front Lens Cap, Rear Lens Cap for Fujifilm X-Mount Lenses, Wrapping Cloth

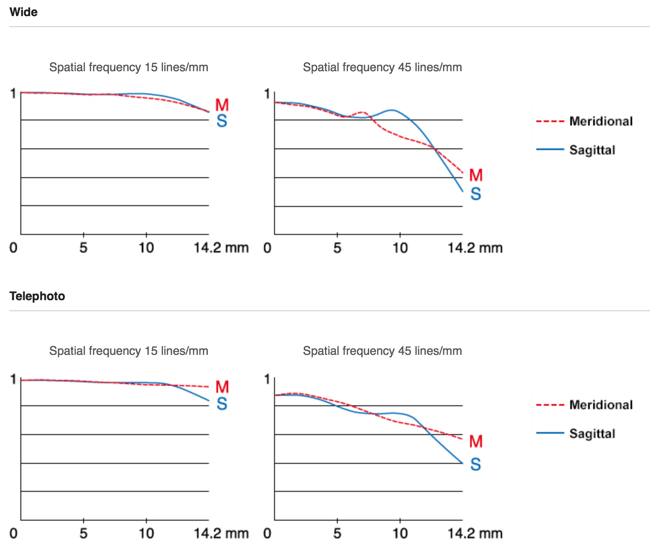

MTF Chart

Fujifilm XF 8-16mm f:2.8 R LM WR MTF Chart

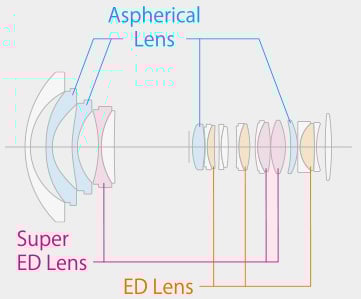

Lens Construction

Fujifilm XF 8-16mm f:2.8 R LM WR Lens Construction Diagram

Sample Images

Fuji X-T30 Image Samples #27 Fuji X-T30 Image Samples #21

Fuji X-T30 Image Samples #8 Fuji X-T30 Image Samples #37

Fuji X-T30 Image Samples #38 Fuji X-T30 Image Samples #32
