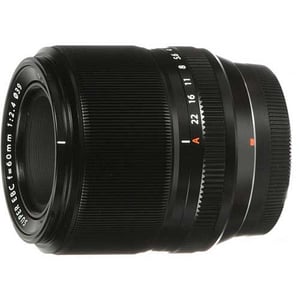

Fujifilm XF 60mm f/2.4 R Macro

Fujifilm XF 60mm f/2.4 R Macro

Lens Summary

Brand: Fujifilm

Also Known As: Fuji 60mm f/2.4

Lens Type: Prime Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Fujifilm X

Release Date: 2012-01-09

MSRP Price: $649

Made in: Japan

Production Status: In Production

Lens Description: Designed specifically for the Fujifilm X-series of interchangeable lens cameras with APS-C sensors, this Fujifilm 60mm f/2.4 XF Macro Lens is a short telephoto lens equivalent to 90mm in 35mm format. The fast, bright f/2.4 maximum aperture makes shooting in low light possible, and provides pleasing bokeh (the out-of-focus portion of a photo) with its 9-blade aperture design--ideal for dramatic portraits.

Fujifilm XF 60mm f/2.4 R Macro Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length60mm
Mount TypeFujifilm X
FormatAPS-C / DX
Compatible Format(s)APS-C Sensor
Compatible with TeleconvertersNo
Maximum Reproduction Ratio0.5x
Image StabilizationNo
Aperture Information
Aperture RingYes
Maximim Aperturef/2.4
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)26.6°
Optical Information
Lens Elements10
Lens Groups8
Diaphragm Blades9
Extra-Low Dispersion Glass Elements1
Aspherical Elements1
Focus Information
Built-in Focus MotorYes
Minimum Focus Distance0.26m
Filter Information
Filter Size39mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions64.1 x 70.9mm
Other Information
Available in ColorsBlack

Lens Construction

Fujifilm XF 60mm f/2.4 R Macro diagram

MTF Chart

Fujifilm XF 60mm f2.4 R Macro chart 1 Fujifilm XF 60mm f2.4 R Macro chart 2


1 Comment
Oldest Most Voted
Inline Feedbacks
View all comments
Cato Hansen

This is a sharp and contrasty lens, with very little distortion. It is also small and lightweight. It has a 1:2 max ratio, and some would say it’s not “real” macro. I have to say that unless you MUST have 1:1 or 2:1, it’s fine. It doubles as a mighty fine portrait lens, with the same field-of-view as a 90 mm f/4 on a FX camera. I bought it second hand with my X-T2, and thought I could just sell it if it didnt suite me and my photography. Well, it stayed, mainly because it is a charm to work with and gives good results.

Downsides: No dust/weather resistance. No OIS/VR/OS. Focus is not very fast, and manual focus in the Fuji world can be a bit slow (electric/motordriven, not true manual). When using the lens hood, it is difficult to remove the lens cap. One caveat in the Fuji world is how many lenses do NOT use the same filter thread size, and of course this lens is an oddball too. I now have four Fuji lenses, none can use the same filters.
