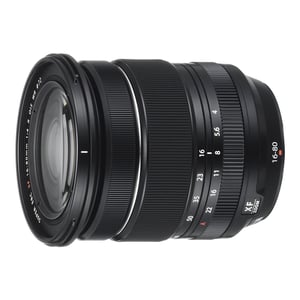

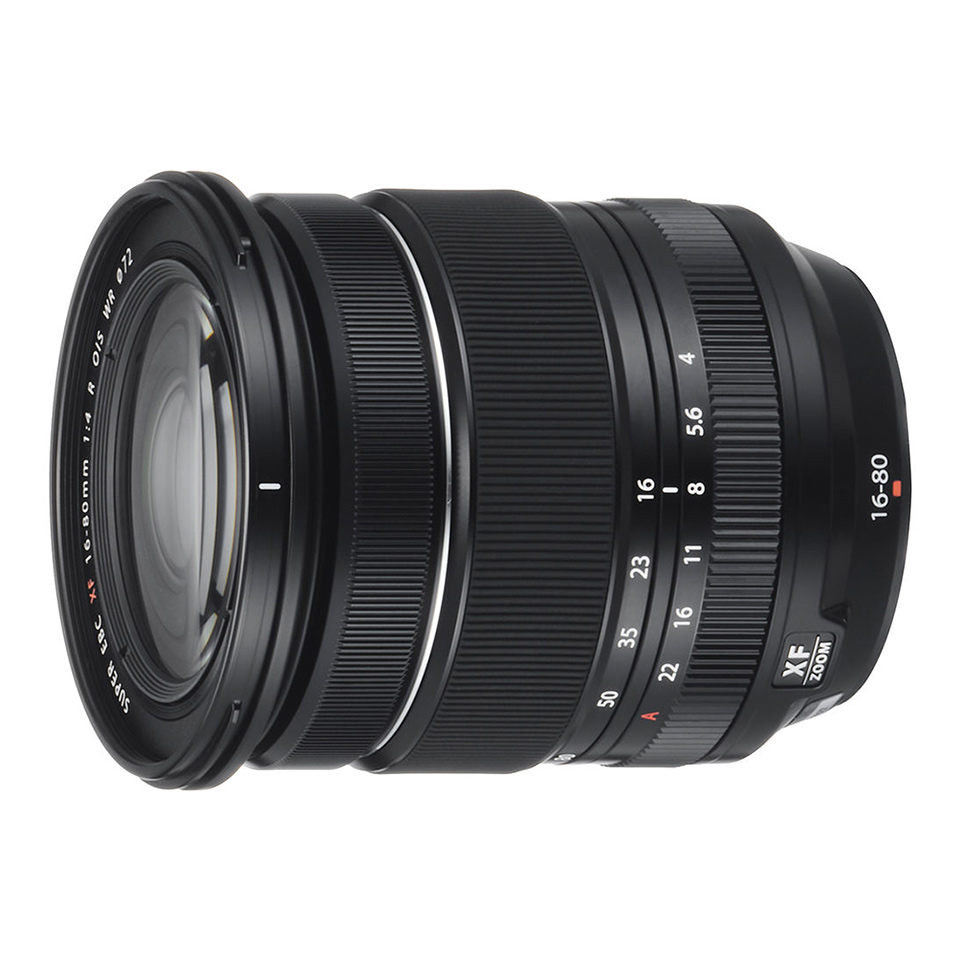

Fujifilm XF 16-80mm f/4 R OIS WR

Fujifilm XF 16-80mm f/4 R OIS WR

Lens Summary

Brand: Fujifilm

Also Known As: Fuji XF 16-80mm f/4 R OIS WR

Lens Type: Zoom Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Fujifilm X

Release Date: 2019-09-25

MSRP Price: $799

Made in: China

Production Status: In Production

Manufacturer Link: Product Page

Lens Description: Well-suited for a wide variety of shooting situations, the FUJIFILM XF 16-80mm f/4 R OIS WR is a versatile 24-120mm-equivalent zoom, spanning wide-angle to medium-telephoto, and featuring a constant f/4 maximum aperture. Complementing this flexible design is an advanced optical layout, which includes a trio of aspherical elements and one ED aspherical element that help to minimize a variety of aberrations in order to produce high sharpness and clarity. A Super EBC coating also improves contrast and color neutrality by reducing flare and ghosting when working in strong lighting conditions. Also benefitting use in a variety of situations is a quick and quiet autofocus system along with a six stop-effective image stabilization system that minimizes the appearance of camera shake. Additionally, the lens is fully weather-sealed for working in inclement conditions.

Fujifilm XF 16-80mm f/4 R OIS WR Specifications

Lens Specifications
* Supplied accessories may differ depending on country or area
Lens TypeZoom Lens
Focal Length16-80mm
Mount TypeFujifilm X
FormatAPS-C / DX
Compatible Format(s)APS-C
Compatible with TeleconvertersNo
Maximum Reproduction Ratio0.25x
Image StabilizationYes
Aperture Information
Aperture RingYes
Maximim Aperturef/4
Minimum Aperturef/22
Maximum Angle of View (APS-C or smaller format)83.2°
Minimum Angle of View (APS-C or smaller format)20.1°
Optical Information
Lens Elements16
Lens Groups12
Diaphragm Blades9 (Rounded)
Special Glass Elements1 ED Aspherical Element
Aspherical Elements3
Anti-Reflective CoatingYes
Focus Information
Built-in Focus MotorYes
Stepper Motor (STM)Yes
Internal FocusingYes
Minimum Focus Distance0.35m
Electronic DiaphragmYes
Filter Information
Filter Size72mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingYes
Mount MaterialMetal
Dimensions78.3 x 88.9mm
Other Information
Available in ColorsBlack
Supplied AccessoriesFront lens cap FLCP-72II, Rear lens cap RLCP-001, Lens hood, Wrapping cloth

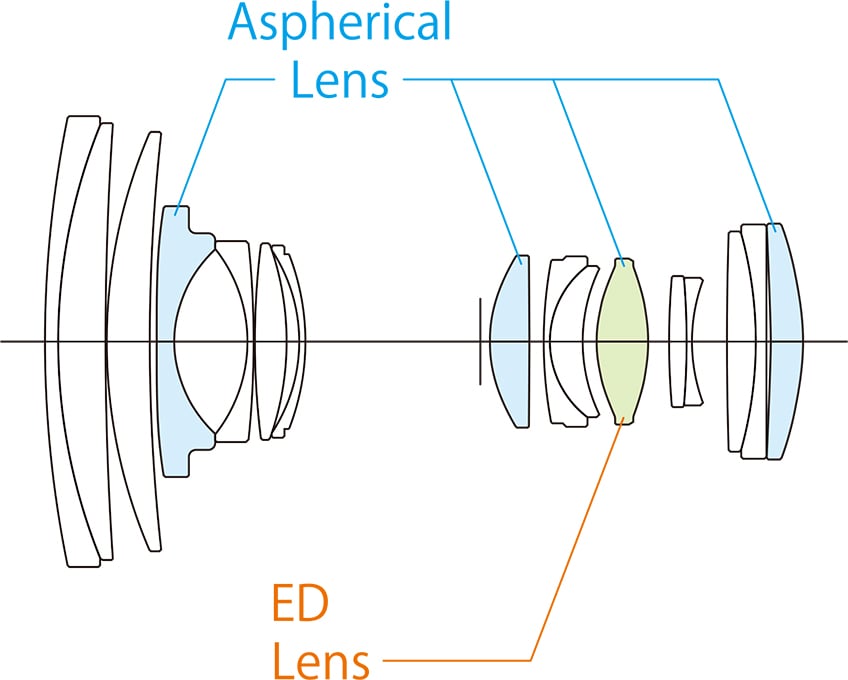

Lens Construction

Fujifilm XF 16-80mm f4 R OIS WR Lens Construction

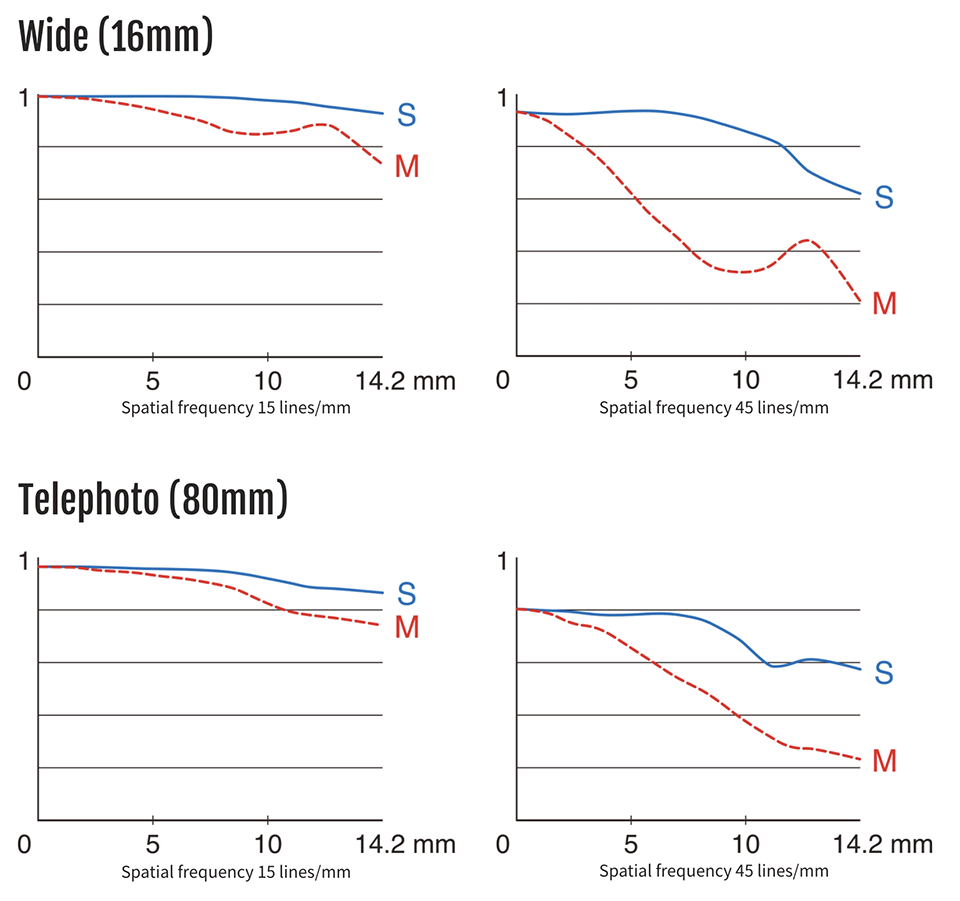

MTF Chart

Fujifilm XF 16-80mm f4 R OIS WR MTF Chart
