Lens Summary
Brand: Fujifilm
Also Known As: Fuji 16-55mm f/2.8
Lens Type: Zoom Lens
Format: APS-C / DX
Focus: Autofocus
Lens Mount: Fujifilm X
Release Date: 2015-01-06
MSRP Price: $1199
Made in: Japan
Production Status: In Production
Lens Description: The weather-resistant zoom lens XF16-55mm F2.8 R LM WR is a flagship "XF standard zoom lens" with a focal length equivalent to 24mm* to 84mm*, and a constant F2.8 aperture throughout the range. The advanced optical design controls various forms of aberration to achieve edge-to-edge sharpness across the entire zoom range.
Photography Life Review Summary: Judging by how sharp the lens turned out when I measured its performance and compared to other X mount lenses, it appears that Fuji’s engineers put their best efforts to make this lens appealing to enthusiasts and professionals, who are not willing to compromise on the build quality or the optical performance of this gem. As a result, they created a new “reference” lens, something that essentially makes most other Fuji lenses look pretty average in comparison. It truly is hard to find flaws in such an amazing lens. Read the full Fujifilm XF 16-55mm f/2.8 R LM WR Review by Photography Life.

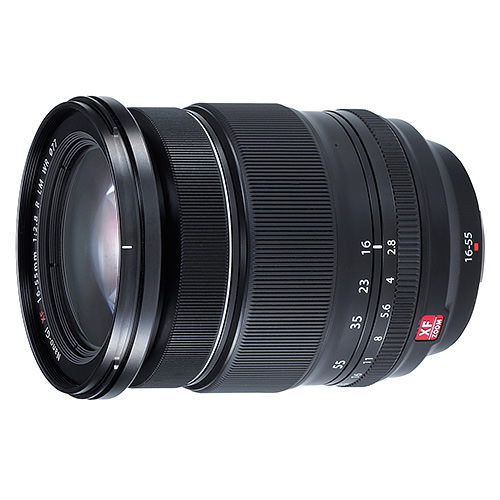

Fujifilm XF 16-55mm f/2.8 R LM WR Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 16-55mm |
| Mount Type | Fujifilm X |
| Format | APS-C / DX |
| Compatible Format(s) | APS-C Sensor |
| Compatible with Teleconverters | No |
| Maximum Reproduction Ratio | 0.16x (Telephoto) |
| Image Stabilization | No |
| Aperture Information | |
| Aperture Ring | Yes |
| Maximim Aperture | f/2.8 |
| Minimum Aperture | f/22 |
| Maximum Angle of View (APS-C or smaller format) | 83.2° |
| Minimum Angle of View (APS-C or smaller format) | 29° |
| Optical Information | |
| Lens Elements | 17 |
| Lens Groups | 12 |
| Diaphragm Blades | 9 (rounded) |
| Extra-Low Dispersion Glass Elements | 3 |
| Aspherical Elements | 3 |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Silent Wave / UltraSonic Motor | Yes |
| Minimum Focus Distance | 0.6m - ∞ |
| Filter Information | |
| Filter Size | 77mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Dimensions | 83.3mm x 106.0mm (Wide) / 129.5mm (Telephoto) |
| Weight | 655g |
| Other Information | |
| Available in Colors | Black |
Lens Construction
MTF Charts

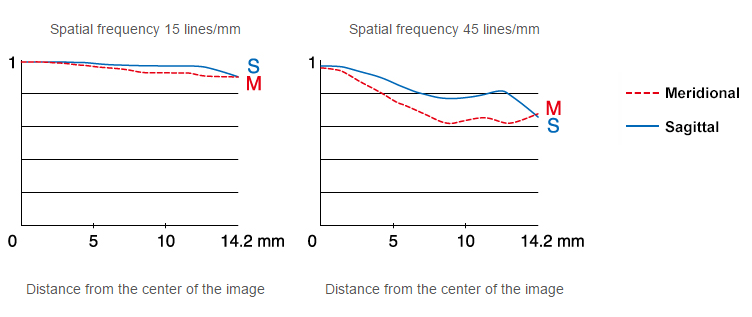

Wide:

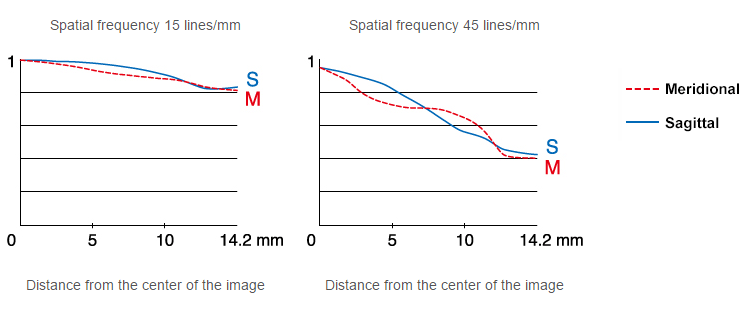

Telephoto:
Image Samples
