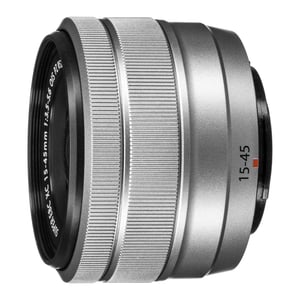

Fujifilm XC 15-45mm f/3.5-5.6 OIS PZ

Fujifilm XC 15-45mm f3.5-5.6 OIS PZ

Lens Summary

Brand: Fujifilm

Also Known As: Fuji 15-45mm f/3.5-5.6 OIS

Lens Type: Zoom Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Fujifilm X

Release Date: 2018-01-31

MSRP Price: $299.00

Made in: Philippines

Production Status: In Production

Lens Description: Designed as a compact zoom model for everyday shooting, the XC 15-45mm f/3.5-5.6 OIS PZ Lens from Fujifilm is made for their X-mount line of cameras with APS-C size sensors. It offers a 23-69mm equivalent focal length, spanning from relatively wide to slightly telephoto, inside a lightweight package that weighs only 4.8 oz and is easy to carry. Thanks to its electric-powered zoom function, the model is capable of smooth and precise zooming throughout the entire range; simply select the desired speed by rotating the zoom ring, then use your camera for the rest.


Fujifilm XC 15-45mm f/3.5-5.6 OIS PZ Specifications

Lens Specifications
* Supplied accessories may differ depending on country or area
Lens TypeZoom Lens
Focal Length15-45mm
Mount TypeFujifilm X
FormatAPS-C / DX
Compatible Format(s)APS-C
Compatible with TeleconvertersNo
Zoom Ratio3x
Maximum Reproduction Ratio0.24x
Image StabilizationYes
Aperture Information
Aperture RingNo
Maximim Aperturef/3.5
Minimum Aperturef/5.6
Maximum Angle of View (APS-C or smaller format)86.9°
Minimum Angle of View (APS-C or smaller format)35°
Optical Information
Lens Elements10
Lens Groups9
Diaphragm Blades7 (Rounded)
Extra-Low Dispersion Glass Elements2
Aspherical Elements3
Nano CoatingNo
Anti-Reflective CoatingNo
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Silent Wave / UltraSonic MotorNo
Stepper Motor (STM)Yes
Internal FocusingYes
Minimum Focus Distance5.12" / 13 cm
Distance InformationYes
Filter Information
Filter Size52mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Tripod CollarNo
Dimensions2.46 x 1.74" / 62.6 x 44.2 mm
Weight4.76 oz / 135 g
Other Information
Available in ColorsBlack, Silver
Supplied AccessoriesFLCP-52II Front Lens Cap, Rear Lens Cap

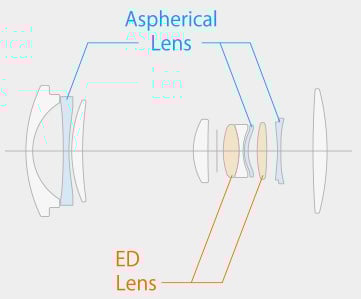

Lens Construction

Fujifilm XC 15-45mm f3.5-5.6 OIS PZ Lens Construction Diagram

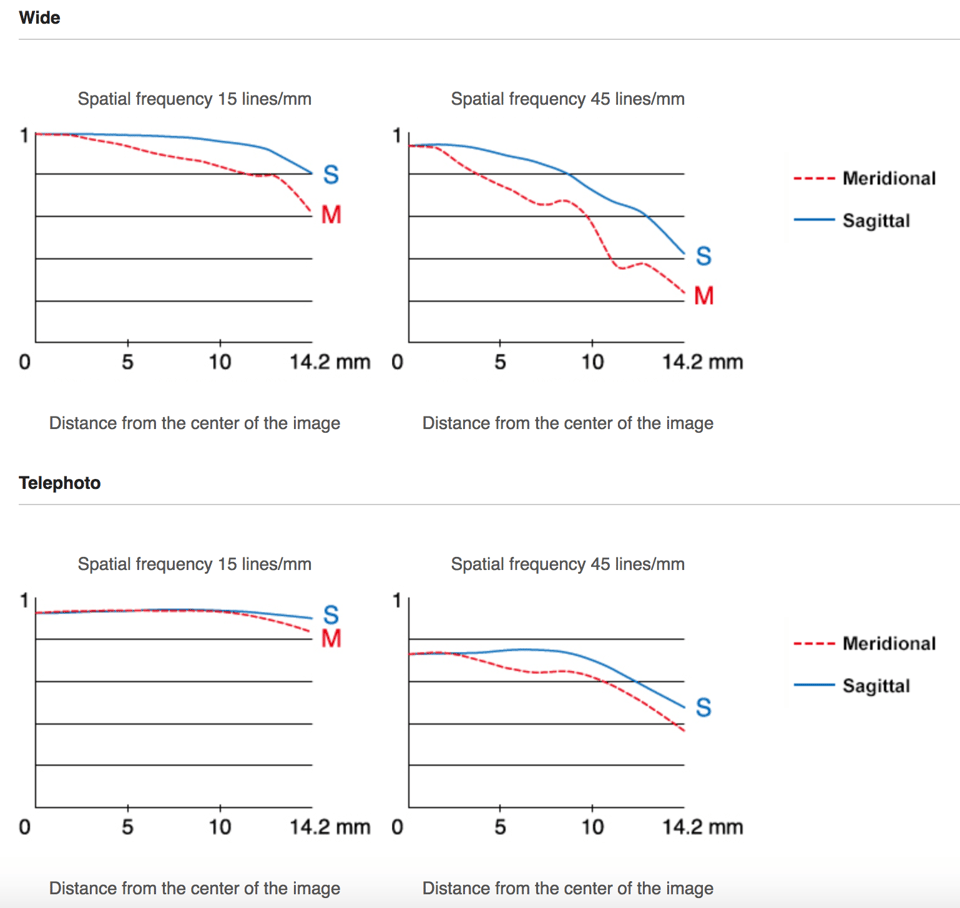

MTF Chart

Fujifilm XC 15-45mm f3.5-5.6 OIS PZ MTF Chart
