Fujifilm GF 120mm f/4 Macro R LM OIS WR

Fujifilm GF 120mm f/4 Macro R LM OIS WR

Lens Summary

Brand: Fujifilm

Also Known As: Fuji GF 120mm f/4 Macro

Lens Type: Prime Lens

Format: Medium Format

Focus: Autofocus

Lens Mount: Fujifilm G

Release Date: 2017-01-19

MSRP Price: $2699

Made in: Japan

Production Status: In Production

Manufacturer Link: Product Page

Lens Description: The GF120mmF4 R LM OIS WR Macro is a mid-telephoto macro lens specifically designed for the new G Mount and 43.8 x 32.9mm sensor. The lens delivers superior image quality thanks to the lens construction of 14 elements in 9 groups (including 3 ED lenses). The GF lens range, which can cope with resolutions up to 100MP, combines the latest technologies with extensive knowledge accumulated from making XF lenses, to deliver the best possible image quality and realize the full potential of the new GFX 50S medium format mirrorless camera. The intuitive controls include a C position on the aperture ring which allows you to adjust the aperture value with the command dial on the camera body. The A (Auto) and C positions are now lockable and the lens is weather and dust resistant, plus it can work in temperatures as low as -10°C for worry-free shooting outdoors.


Fujifilm GF 120mm f/4 Macro R LM OIS WR Specifications

Lens Specifications
* Supplied accessories may differ depending on country or area
Lens TypePrime Lens
Focal Length120mm
Mount TypeFujifilm G
FormatMedium Format
Compatible Format(s)Medium Format
Compatible with TeleconvertersNo
Maximum Reproduction Ratio0.5x
Image StabilizationYes
Aperture Information
Aperture RingYes
Maximim Aperturef/4
Minimum Aperturef/32
Maximum Angle of View (Full frame or larger format)25.7°
Optical Information
Lens Elements14
Lens Groups9
Diaphragm Blades9 (Rounded)
Extra-Low Dispersion Glass Elements3
Fluorine CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Linear MotorYes
Internal FocusingYes
Minimum Focus Distance45cm - ∞
Electronic DiaphragmYes
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingYes
Mount MaterialMetal
Dimensions89.2mm×152.5mm
Weight980g
Other Information
Available in ColorsBlack
Supplied AccessoriesLens Cap FLCP-72II, Lens rear cap RLCP-002, Lens hood, Lens case

Lens Construction

Fujifilm GF 120mm f/4 Macro R LM OIS WR Lens Construction

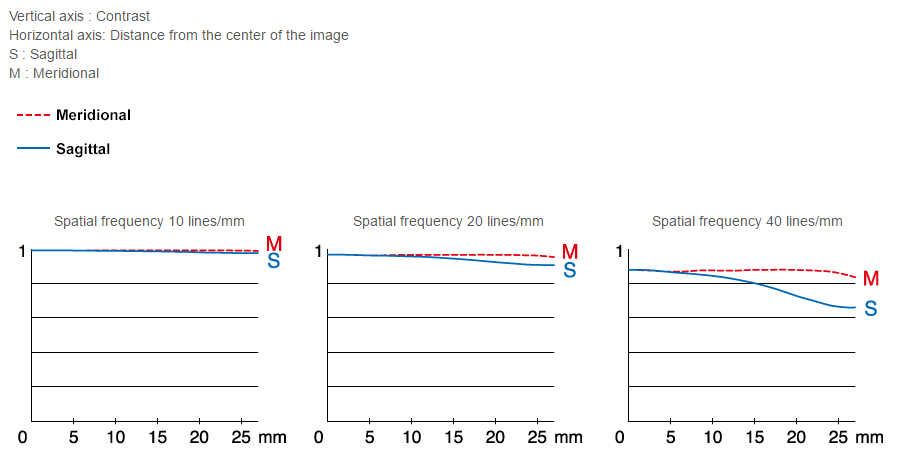

MTF Chart

Fujifilm GF 120mm f/4 Macro R LM OIS WR MTF Chart
