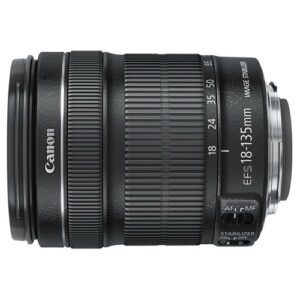

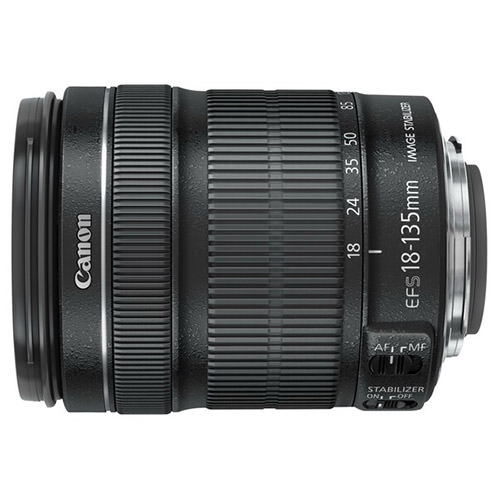

Canon EF-S 18-135mm f/3.5-5.6 IS STM

Lens Summary

Brand: Canon

Also Known As: Canon 18-135mm f/3.5-5.6 IS

Lens Type: Zoom Lens

Format: APS-C / DX

Focus: Autofocus

Lens Mount: Canon EF-S

Release Date: 2012-06-01

MSRP Price: $449

Made in: Japan

Infrared Rating: Good

Production Status: In Production

Lens Description: Designed to exceed expectations and ideal for video and still images alike, the new EF-S 18-135mm f/3.5-5.6 IS STM marks a new standard for EF-S lenses. It features a refined Image Stabilization system that delivers up to four equivalent stops of shake correction throughout the zoom range; and offers a maximum magnification of 0.28x at the telephoto end, while remaining even more compact in size. This EF-S lens supports the Canon EOS Rebel T4i DSLR\'s Movie Servo AF feature for smooth and quiet continuous AF during movie shooting by utilizing a new six-group zoom system and the adoption of a stepping motor and focus mechanism. High-speed autofocus is achieved thanks to an Inner focusing system, high-speed CPU, and optimized AF algorithm. Appearing for the first time in a Canon lens is Dynamic IS (Movie Shooting Mode only) that uses a wide image stabilization correction range to help ensure steady video while shooting when walking.Whether shooting movies or stills, image quality is phenomenal, with one UD and one PMo aspheric lens providing high resolution and high contrast images with reduced chromatic aberration throughout the zoom range. A 7 blade, circular aperture ensures beautiful, soft backgrounds and optimized lens coatings ensure excellent color with minimized ghosting and flare. A zoom ring lock even prevents the lens from accidently extending


Canon EF-S 18-135mm f/3.5-5.6 IS STM Specifications

Lens Specifications
Lens TypeZoom Lens
Focal Length18-135mm
Mount TypeCanon EF-S
FormatAPS-C / DX
Compatible Format(s)APS-C
Compatible with TeleconvertersNo
Zoom Ratio7.5x
Image Stabilizer (Image Stabilization)Yes
Aperture Information
Aperture RingNo
Maximim Aperturef/3.5-5.6
Minimum Aperturef/22-36
Maximum Angle of View (APS-C or smaller format)74°
Minimum Angle of View (APS-C or smaller format)11°
Optical Information
Lens Elements16
Lens Groups12
Diaphragm Blades7
Super Spectra CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Stepper Motor (STM)Yes
Internal FocusingYes
Minimum Focus Distance0.39m
Distance InformationYes
Filter Information
Filter Size67mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions76.6x96mm
Weight480g
Other Information
Available in ColorsBlack

Lens Construction

Canon EF-S 18-135mm f/3.5-5.6 IS STM Lens Construction

MTF Chart

Canon EF-S 18-135mm f/3.5-5.6 IS STM TELE Canon EF-S 18-135mm f/3.5-5.6 IS STM WIDE
