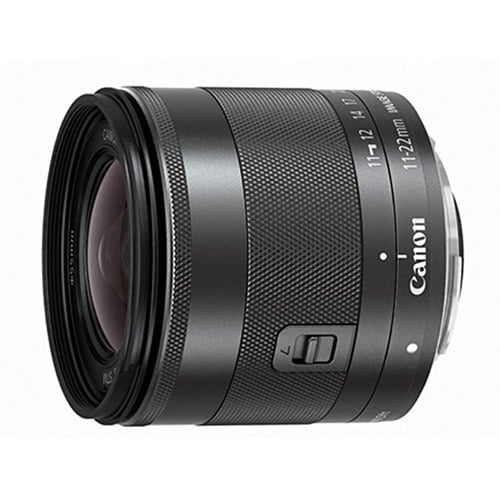

Lens Summary
Brand: Canon
Also Known As: Canon EF-M 11-22mm f/4-5.6 IS
Lens Type: Zoom Lens
Format: APS-C / DX
Focus: Autofocus
Lens Mount: Canon EF-M
Release Date: 2013-06-06
MSRP Price: $399
Made in: Japan
Production Status: In Production
Lens Description: Designed for Canon’s Compact System Camera, the EOS M, this is Canon’s first ultra wide-angle EF lens to feature an Optical Image Stabilizer. Offering a versatile wide-angle zoom range, first-class optical performance, and a new retractable design, the EF-M 11-22mm f/4-5.6 IS STM, with its 11-22mm focal range is the perfect addition for EOS M users who wish to capture incredibly wide fields of view such as landscapes and architecture.
Canon EF-M 11-22mm f/4-5.6 IS STM Specifications
| Lens Specifications | |
|---|---|
| Lens Type | Zoom Lens |
| Focal Length | 18-55mm |
| Mount Type | Canon EF-M |
| Format | APS-C / DX |
| Compatible Format(s) | APS-C |
| Compatible with Teleconverters | No |
| Zoom Ratio | 2x |
| Maximum Reproduction Ratio | 0.3x |
| Image Stabilizer (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/4-f/5.6 |
| Minimum Aperture | f/22-f/32 |
| Optical Information | |
| Lens Elements | 12 |
| Lens Groups | 9 |
| Diaphragm Blades | 7 |
| Aspherical Elements | 2 Aspherical Elements |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| Stepper Motor (STM) | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 0.15m |
| Filter Information | |
| Filter Size | 55mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | No |
| Mount Material | Metal |
| Dimensions | 61 x 58mm |
| Weight | 220g |
| Other Information | |
| Available in Colors | Black |

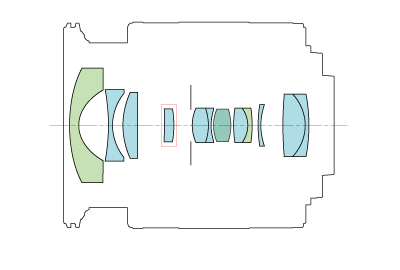

Lens Construction

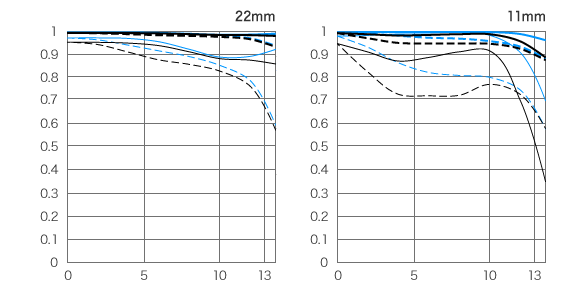

MTF Chart
