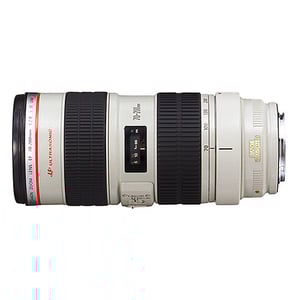

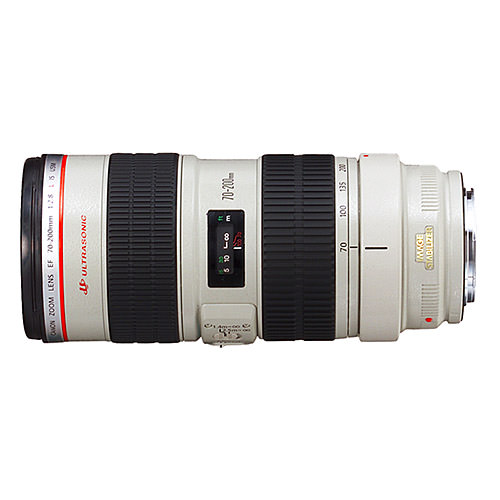

Lens Summary
Brand: Canon
Also Known As: Canon 70-200mm f/2.8L IS
Lens Type: Zoom Lens
Format: Full Frame / FX
Focus: Autofocus
Lens Mount: Canon EF
Release Date: 2001-09-01
MSRP Price: $2099
Made in: Japan
Infrared Rating: Poor
Production Status: Discontinued
Lens Description: One of the finest telephoto zoom lenses in the EF line, comparable to a single focal length lens. It has four UD-glass elements to correct chromatic aberrations. Its constant f/2.8 maximum aperture and superb image quality make it one of the most popular professional SLR lenses in the world. Compatible with Extender EF 1.4x II and 2x II.
Canon EF 70-200mm f/2.8L IS USM Specifications
| Lens Specifications | |
|---|---|
| * Supplied accessories may differ depending on country or area | |
| Lens Type | Zoom Lens |
| Focal Length | 70-200mm |
| Mount Type | Canon EF |
| Format | Full Frame / FX |
| Compatible Format(s) | 35mm Film / Full-Frame Digital Sensor Canon (APS-C) |
| Compatible with Teleconverters | Yes |
| Zoom Ratio | 2.85x |
| Image Stabilizer (Image Stabilization) | Yes |
| Aperture Information | |
| Aperture Ring | No |
| Maximim Aperture | f/2.8 |
| Minimum Aperture | f/32 |
| Maximum Angle of View (Full frame or larger format) | 34.3° |
| Minimum Angle of View (Full frame or larger format) | 12.3° |
| Optical Information | |
| Lens Elements | 23 |
| Lens Groups | 18 |
| Diaphragm Blades | 8 |
| Extra-Low Dispersion Glass Elements | 4 |
| Super Spectra Coating | Yes |
| Focus Information | |
| Focus | Autofocus |
| Built-in Focus Motor | Yes |
| UltraSonic Motor (USM) | Yes |
| Internal Focusing | Yes |
| Minimum Focus Distance | 1.40 m |
| Distance Information | Yes |
| Filter Information | |
| Filter Size | 77mm |
| Accepts Filter Type | Screw-on |
| Physical Characteristics | |
| Weather / Dust Sealing | Yes |
| Mount Material | Metal |
| Tripod Collar | Yes |
| Dimensions | 86 x 197mm |
| Weight | 1570g |
| Other Information | |
| Available in Colors | Grey and Black |
| Supplied Accessories | 01/01/1900 |
MTF Chart
