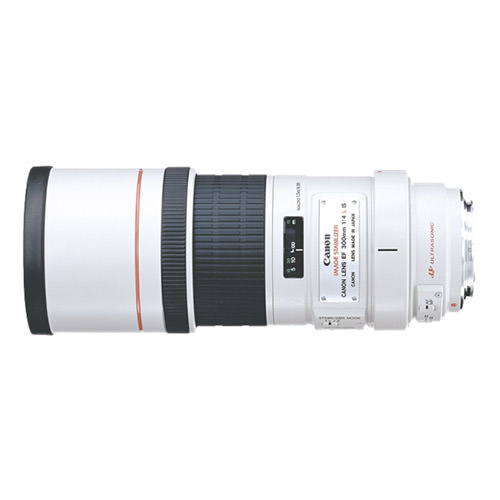

Canon EF 300mm f/4L IS USM

Canon EF 300mm f/4L IS USM

Lens Summary

Brand: Canon

Also Known As: Canon 300mm f/4L IS

Lens Type: Prime Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF

Release Date: 1997-12-01

MSRP Price: $1181

Made in: Japan

Infrared Rating: Good

Production Status: In Production

Lens Description: Compact L-series telephoto lens with an Image Stabilizer which compensates for camera shake with the equivalent effect of a shutter speed two stops faster. Two Image Stabilizer modes are provided: Stabilizer Mode 1 (the same mode featured on the EF 75-300mm f/4-5.6 IS USM) and the new Stabilizer Mode 2 which steadies the image during horizontal or vertical panning. Mode 2 detects the panning direction automatically. The closest focusing distance is 4.9 feet (1.5 m).


Canon EF 300mm f/4L IS USM Specifications

Lens Specifications
* Supplied accessories may differ depending on country or area
Lens TypePrime Lens
Focal Length300mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor Canon (APS-C)
Compatible with TeleconvertersYes
Maximum Reproduction Ratio1:4.1
Image Stabilizer (Image Stabilization)Yes
Aperture Information
Aperture RingNo
Maximim Aperturef/4
Minimum Aperturef/32
Maximum Angle of View (Full frame or larger format)
Optical Information
Lens Elements15
Lens Groups11
Diaphragm Blades8
Super Spectra CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
UltraSonic Motor (USM)Yes
Rear FocusingYes
Minimum Focus Distance1.50m
Distance InformationYes
Filter Information
Filter Size77mm
Accepts Filter TypeDrop-in
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Tripod CollarYes
Dimensions8.89 x 22.10cm
Weight1.19kg
Other Information
Available in ColorsGrey and Black
Supplied Accessories01/01/1900

Lens Construction

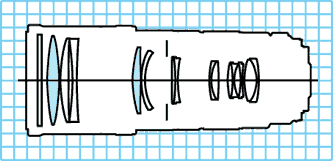

Canon EF 300mm f/4L IS USM Diagram
