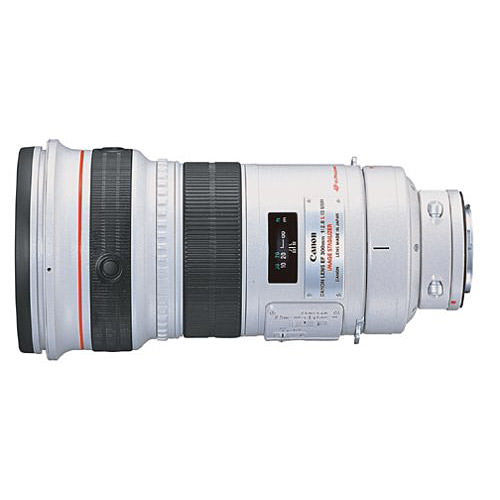

Canon EF 300mm f/2.8L IS USM

Canon EF 300mm f/2.8L IS USM

Lens Summary

Brand: Canon

Also Known As: Canon 300mm f/2.8L IS

Lens Type: Prime Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF

Release Date: 1999-07-01

MSRP Price: $7099

Made in: Japan

Infrared Rating: Good

Production Status: Discontinued

Lens Description: Telephoto lens newly equipped with an Image Stabilizer enabling hand-held shooting for easier movement. The fluorite element and two UD-glass elements effectively correct the chromatic aberrations prone to occur with telephoto lenses. With the EOS-1v and EOS-3, the AF speed becomes the world’s fastest. To reduce the overall weight and enhance portability, the lens barrel and many other exterior parts use a magnesium-alloy. Also, the detachable tripod collar revolves smoothly and locks securely.


Canon EF 300mm f/2.8L IS USM Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length300mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor Canon (APS-C)
Compatible with TeleconvertersYes
Maximum Reproduction Ratio1:7.6
Image Stabilizer (Image Stabilization)Yes
Aperture Information
Aperture RingNo
Maximum Aperturef/2.8
Minimum Aperturef/32
Maximum Angle of View (Full Frame format)8° 15'
Optical Information
Lens Elements17
Lens Groups13
Diaphragm Blades8
Extra-Low Dispersion Glass Elements1 fluorite lens 2 UD lenses
SWC (SubWavelength Structure Coating)No
Super Spectra CoatingNo
Focus Information
FocusAutofocus
Built-in Focus MotorYes
UltraSonic Motor (USM)Yes
Internal FocusingYes
Minimum Focus Distance2.50m
Distance InformationYes
Filter Information
Filter Size52mm
Accepts Filter TypeDrop-in
Physical Characteristics
Weather / Dust SealingYes
Mount MaterialMetal
Tripod CollarYes
Dimensions128mm x 252mm
Weight2550g
Other Information
Available in ColorsGrey and Black

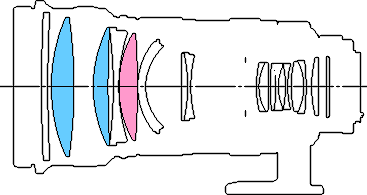

Lens Construction

Canon EF 300mm f/2.8L IS USM diagram

Chart

Canon EF 300mm f/2.8L IS USM Chart
