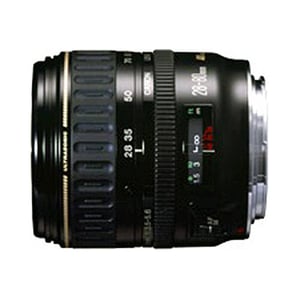

Canon EF 28-80mm f/3.5-5.6 USM

Canon EF 28-80mm f/3.5-5.6 USM

Lens Summary

Brand: Canon

Also Known As: Canon EF 28-80mm f/3.5-5.6 USM

Lens Type: Zoom Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF, Canon EF-S

Release Date: 1991-01-01

MSRP Price: N/A

Made in: Japan

Production Status: Discontinued

Lens Description: The Canon EF 28-80 f/ 3.5-5.6 USM is the first version of a low-end kit lens with a 28-80 mm variable focal length for Canon EOS film and digital SLR cameras.rnrnCanon issued five variants of the lens, each of which had two versions: with and without USM.rnrnThis first variant of the lens is considered to be the most successful. Its optical scheme had never been borrowed by the lenses of this series.rnrnIt features a convenient range of focal lengths, a very good optical quality, a fast ultra-sonic motor and very attractive price on the secondary market. All the above factors make the Canon EF 28-80 f/ 3.5-5.6 USM a real bargain as a kit lens, as well as a substitute for a kit lens.rn

Canon EF 28-80mm f/3.5-5.6 USM Specifications

Lens Specifications
Lens TypeZoom Lens
Focal Length28-80mm
Mount TypeCanon EF, Canon EF-S
FormatFull Frame / FX
Compatible Format(s)35mm SLR
Compatible with TeleconvertersNo
Zoom Ratio2.85x
Image Stabilizer (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/3.5-f/5.6
Minimum Aperturef/32
Optical Information
Lens Elements10
Lens Groups9
Diaphragm Blades5
Focus Information
Built-in Focus MotorYes
Minimum Focus Distance0.5m
Distance InformationYes
Filter Information
Filter Size58mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Other Information
Available in ColorsBlack

Oldest Most Voted
Inline Feedbacks
View all comments
richard phillips

would it work with URSA MINI 4K


Very good quality image on my Canon 6D, excelent lens for travelling!


I have 6d, do you have samples?
Any issues with the lens?
Thank you


Is this the obe ring type?

Dianna Yale

Will it fit on a Canon EOS Rebel T3?

John Leonard

Yes any EOS Camera


Try screwing it into a EOS M3 and see what happens ;-)
As in, NO! it will not fit any EOS camera…
This is a EF mount lens so it will fit on a canon camera with a EF or EF-S mount.


Yes it will with an ef to efm adapter


Hi, will it work on the eos M10? Or do i need a adapter?

Max Hendel

Precisará do adaptador EF-EOS M.


This is a EF mount lens so it will fit on a canon camera with a EF or EF-S mount not on the EF-M mount camera’s.

Eugene Viljoen

Will it work on the Canon 650D


Yes, It works with all EOS cameras.


this lens gives me 40 aperure in the far end
very good lens sharpness and contrast at 6.3 aperture and above unfortunately i have one with broken autofocus but has full time manual focus
i think is better than 28-70 ii


Is this lens compatible with the canon 60d?


Yes. :) I think, it’s working on my 50D, i think it’ll work on 60D.


It will work on your 60D. It works on my 5D Mark II and T3i.
