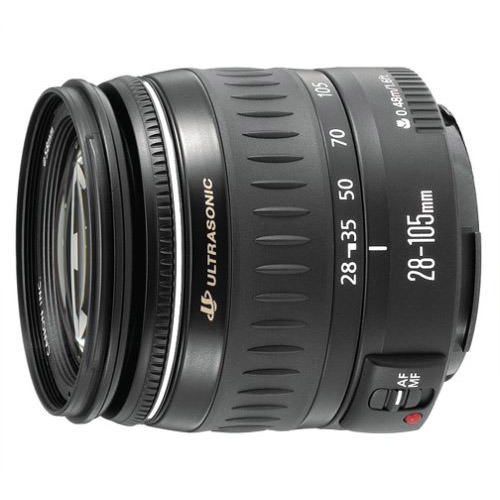

Canon EF 28-105mm f/4-5.6 USM

Lens Summary

Brand: Canon

Also Known As: Canon 28-105mm f/4.0-5.6

Lens Type: Zoom Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF

Release Date: 2002-01-01

MSRP Price: $249.99

Made in: Japan

Infrared Rating: Poor

Production Status: Discontinued

Lens Description: An entirely new lens which joins Canon\'s existing 28-105 f/3.5-4.5 USM in the line-up. It\'s the smallest and lightest zoom in the 28-105 class, and its new optical system includes an Aspherical element. Most noteworthy is its new Micro USM II -- half the size of previous Micro USMs, and its use of internal focusing (no front element rotation during focusing)

Canon EF 28-105mm f/4-5.6 USM Specifications

Lens Specifications
Lens TypeZoom Lens
Focal Length28-105mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor / APS-H / APS-C
Compatible with TeleconvertersNo
Zoom Ratio3.75x
Maximum Reproduction Ratio1:5.2
Image Stabilizer (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/4-5.6
Minimum Aperturef/22-32
Maximum Angle of View (APS-C or smaller format)65°-19°
Optical Information
Lens Elements10
Lens Groups9
Diaphragm Blades6
Focus Information
Built-in Focus MotorYes
UltraSonic Motor (USM)Yes
Internal FocusingYes
Minimum Focus Distance0.48m
Distance InformationYes
Filter Information
Filter Size58mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions 67mm x 68mm
Other Information
Available in ColorsBlack

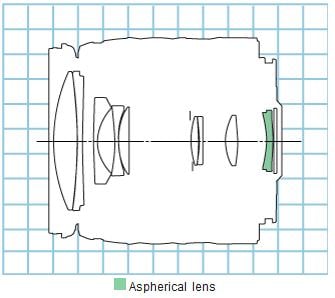

Lens Construction

Canon EF 28-105mm f/4.0-5.6 USM diagram

MTF Chart

Canon EF 28-105mm f/4.0-5.6 USM MTF 28mm Chart Canon EF 28-105mm f/4.0-5.6 USM MTF chart 105mm
