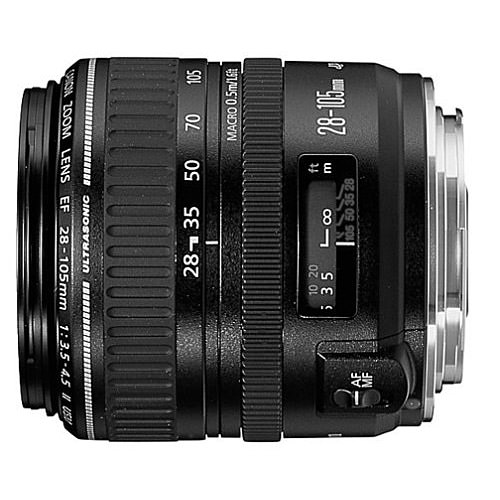

Canon EF 28-105mm f/3.5-4.5 II USM

Canon EF 28-105mm f/3.5-4.5 II USM

Lens Summary

Brand: Canon

Also Known As: Canon 28-105mm f/3.5-4.5 II

Lens Type: Zoom Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF

Release Date: 2000-08-30

MSRP Price: $179

Made in: Japan

Infrared Rating: Good

Production Status: Discontinued

Lens Description: Retains the optical capability of the highly popular EF 28-105mm f/3.5-4.5 USM lens, with a refined exterior design. Includes ring-type USM drive for silent, high-speed autofocusing, plus full-time manual focusing. The compact design is a good match for the EOS A2/A2e or ELAN 7 series with built-in flash. An excellent zoom lens for everyday use.


Canon EF 28-105mm f/3.5-4.5 II USM Specifications

Lens Specifications
Lens TypeZoom Lens
Focal Length28-105mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)Full Frame Lens/FX = 35mm Film / Full-Frame Digital Sensor / APS-H / APS-C
Compatible with TeleconvertersNo
Zoom Ratio3.75x
Maximum Reproduction Ratio1:5.3
Image Stabilizer (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximum Aperturef/3.5-4.5
Minimum Aperturef/22-27
Maximum Angle of View (Full Frame format)75°-23°
Optical Information
Lens Elements15
Lens Groups12
Diaphragm Blades7
SWC (SubWavelength Structure Coating)No
Super Spectra CoatingNo
Focus Information
FocusAutofocus
Built-in Focus MotorYes
UltraSonic Motor (USM)Yes
Internal FocusingYes
Minimum Focus Distance0.50m
Distance InformationYes
Filter Information
Filter Size58mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Tripod CollarNo
Dimensions75x72mm
Weight375g
Other Information
Available in ColorsBlack

Lens Construction

Canon EF 28-105mm f/3.5-4.5 II USM diagram

MTF Chart

Canon EF 28-105mm f/3.5-4.5 II USM 28mm Canon EF 28-105mm f/3.5-4.5 II USM 105mm
