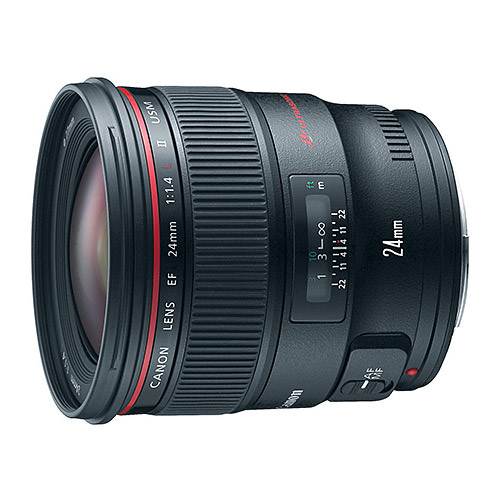

Canon EF 24mm f/1.4L II USM

Canon EF 24mm f/1.4L II USM

Lens Summary

Brand: Canon

Also Known As: Canon EF 24mm f/1.4L II

Lens Type: Prime Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF

Release Date: 2008-12-01

MSRP Price: $1749

Made in: Japan

Infrared Rating: Good

Production Status: In Production

Lens Description: Canon\'s newest fixed length L-series lens, the EF 24mm f/1.4L II USM, incorporates the newest in Canon lens technology for spectacular sharpness and impressive performance at all settings. It features two high-precision, large-diameter aspherical lenses for sharpness across the sensor, even in peripheral areas of full-frame sensors. Lens elements have a newly-designed anti-reflective SWC (Sub Wavelength Coating) that departs from conventional coatings by using an extremely fine structure that minimizes ghosting and flaring across the lens surface, regardless of the angle with which light enters or exits. It also features two UD lens elements to minimize chromatic aberrations, incorporates rear-focusing, ultrasonic, quiet and high-speed AF with full-time manual override. A circular aperture provides beautiful out-of-focus detail and offers legendary dust- and water-resistant L-series construction using only lead-free glass.


Canon EF 24mm f/1.4L II USM Specifications

Lens Specifications
* Supplied accessories may differ depending on country or area
Lens TypePrime Lens
Focal Length24mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)35mm Film
Compatible with TeleconvertersNo
Maximum Reproduction Ratio0.17x
Image Stabilizer (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/1.4
Minimum Aperturef/22
Maximum Angle of View (Full frame or larger format)84°
Optical Information
Lens Elements13
Lens Groups10
Diaphragm Blades8
Extra-Low Dispersion Glass Elements2
Aspherical Elements2
Super Spectra CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
UltraSonic Motor (USM)Yes
Internal FocusingYes
Minimum Focus Distance3.0 in./77mm
Distance InformationYes
Filter Information
Filter Size77mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions3.4 in./86.9mm
Weight22.9 oz./650g
Other Information
Available in ColorsBlack
Supplied AccessoriesLens Case LZ1319

Lens Construction

Canon EF 24mm f/1.4L II USM Lens Construction

MTF Chart

Canon EF 24mm f/1.4L II USM MTF
