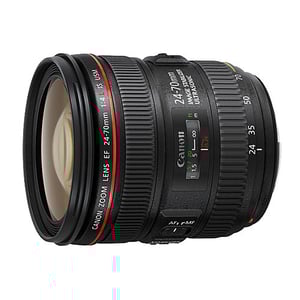

Canon EF 24-70mm f/4L IS USM

Canon EF 24-70mm f/4L IS USM

Lens Summary

Brand: Canon

Also Known As: Canon 24-70mm f/4L IS

Lens Type: Zoom Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF

Release Date: 2012-11-06

MSRP Price: $1499

Made in: Japan

Infrared Rating: Good

Production Status: In Production

Lens Description: The Canon EF 24-70mm f/4L IS USM is the perfect zoom to complement full-frame DSLRs like the EOS 6D. With 2 aspheric and 2 UD elements, the EF 24-70mm f/4L IS USM delivers high- quality images with excellent detail throughout the entire zoom range. A 9-blade circular diaphragm delivers beautiful, soft backgrounds. It offers a minimum focusing distance of 1.25 ft./0.38m across the entire zoom range and has a macro mode at the telephoto end with up to 0.7x magnification (minimum focusing distance becomes 7.87 in./0.2m) and is easily accessible with a one-touch switch. It features a Hybrid IS system with up to 4 stops of stabilization, compensating for both angular and shift types of camera shake, delivering effective stabilization even in macro. Inner focusing and ring-type USM deliver, fast, quiet AF, and full-time manual focus is available for manual focusing even while in AF mode. The durable EF 24-70mm f/4L IS USM is sealed for excellent dust and water resistance plus has fluorine coating on the front and rear elements reducing smears and fingerprints. Compact and lightweight, it’s the perfect L-series lens for photographers on the go.


Canon EF 24-70mm f/4L IS USM Specifications

Lens Specifications
* Supplied accessories may differ depending on country or area
Lens TypeZoom Lens
Focal Length24-70mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)35mm Film
Compatible with TeleconvertersNo
Zoom Ratio2.9x
Maximum Reproduction Ratio0.7x
Image Stabilizer (Image Stabilization)Yes
Aperture Information
Aperture RingNo
Maximim Aperturef/4
Minimum Aperturef/22
Maximum Angle of View (Full frame or larger format)84°
Minimum Angle of View (Full frame or larger format)34°
Optical Information
Lens Elements15
Lens Groups12
Diaphragm Blades9
Extra-Low Dispersion Glass Elements2
Aspherical Elements2
Super Spectra CoatingYes
Focus Information
FocusAutofocus
Built-in Focus MotorYes
UltraSonic Motor (USM)Yes
Internal FocusingYes
Minimum Focus Distance1.25 ft./0.38m
Distance InformationYes
Filter Information
Filter Size77mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Dimensions3.3 x 3.7 in/83.4 x 93mm
Weight21 oz./600g
Other Information
Available in ColorsBlack
Supplied AccessoriesSoft Lens Case LP1219

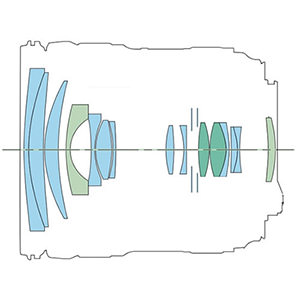

Lens Construction

Canon EF 24-70mm f/4L IS USM Lens Construction

MTF Chart

Canon EF 24-70mm f/4L IS USM Tele MTF

Canon EF 24-70mm f/4L IS USM Wide MTF
