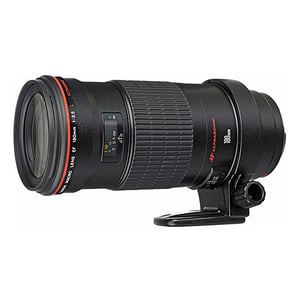

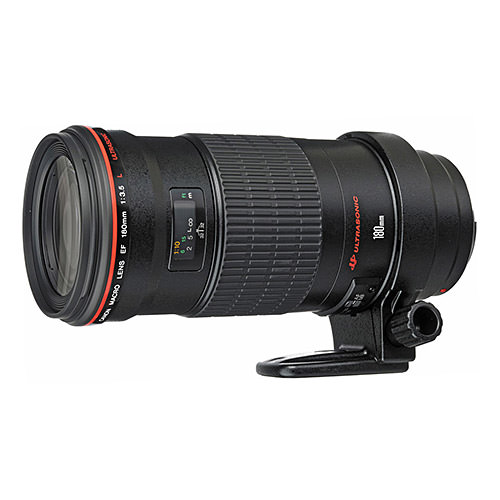

Canon EF 180mm f/3.5L Macro USM

Canon EF 180mm f/3.5L Macro USM

Lens Summary

Brand: Canon

Also Known As: Canon 180mm f/3.5L Macro

Lens Type: Prime Lens

Format: Full Frame / FX

Focus: Autofocus

Lens Mount: Canon EF

Release Date: 1996-01-01

MSRP Price: $1429

Made in: Japan

Infrared Rating: Good

Production Status: In Production

Lens Description: Another telephoto macro lens with a maximum magnification of 1x. Life-size close-ups can be taken from a farther distance without disturbing the subject (insects, etc.). The internal floating system minimizes fluctuations in aberrations caused by changes in the focusing distance. Optical performance is outstanding from 1x to infinity.

Canon EF 180mm f/3.5L Macro USM Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length180mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor / APS-H / APS-C
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:1
Image Stabilizer (Image Stabilization)No
Aperture Information
Aperture RingNo
Maximim Aperturef/3.5
Minimum Aperturef/32
Maximum Angle of View (Full frame or larger format)13°
Optical Information
Lens Elements14
Lens Groups12
Diaphragm Blades8
Focus Information
Built-in Focus MotorYes
UltraSonic Motor (USM)Yes
Internal FocusingYes
Minimum Focus Distance0.48m
Distance InformationYes
Filter Information
Filter Size72mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Tripod CollarYes
Dimensions8.13 x 18.54cm
Other Information
Available in ColorsBlack

Lens Construction

Canon EF 180mm f/3.5L Macro USM diagram

MTF Chart

Canon EF 180mm f/3.5L Macro USM chart
