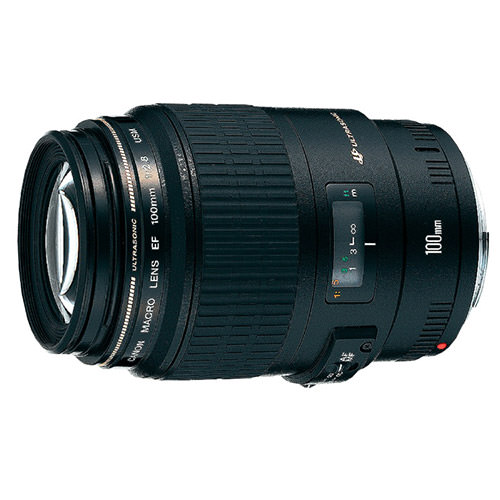

Canon EF 100mm f/2.8 Macro USM

Canon EF 100mm f/2.8 Macro USM

Lens Summary

Brand: Canon
Also Known As: Canon 100mm f/2.8 Macro
Lens Type: Prime Lens
Format: Full Frame / FX
Focus: Autofocus
Lens Mount: Canon EF
Release Date: 01/01/2000
MSRP Price: $515 (Check Current Price)
Made in: Japan
Infrared Rating: Good
Production Status: In Production

Lens Description: Autofocus lens for macro photography up to life-size (1x) magnification. Inner focusing affords a long working distance of 5.9in. (149mm) at 1x. A 3-group floating system results in excellent delineation at all focusing distances. Ring USM for silent and high-speed AF, and full-time manual focusing also provided.


Canon EF 100mm f/2.8 Macro USM Specifications

Lens Specifications
Lens TypePrime Lens
Focal Length100mm
Mount TypeCanon EF
FormatFull Frame / FX
Compatible Format(s)35mm Film / Full-Frame Digital Sensor Canon (APS-C)
Compatible with TeleconvertersNo
Maximum Reproduction Ratio1:1
Vibration Reduction / Image StabilizationNo
Aperture Information
Aperture RingNo
Maximum Aperturef/2.8
Minimum Aperturef/32
Maximum Angle of View (Full Frame format)24°
Minimum Angle of View (Full Frame format)N/A
Optical Information
Lens Elements12
Lens Groups8
Diaphragm Blades8
Nano CoatingNo
Super Integrated / Super Spectra / T* CoatingNo
Focus Information
FocusAutofocus
Built-in Focus MotorYes
Silent Wave / Ultrasonic MotorYes
Internal FocusingYes
Rear FocusingNo
Minimum Focus Distance0.31m
Distance InformationYes
Filter Information
Filter Size58mm
Accepts Filter TypeScrew-on
Physical Characteristics
Weather / Dust SealingNo
Mount MaterialMetal
Tripod CollarNo
Dimensions79 x 119mm
Weight600g
Other Information
Available in ColorsBlack

Lens Construction

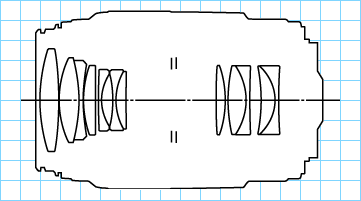

Canon EF 100mm f/2.8 Macro USM lens construction

MTF Chart

Canon EF 100mm f/2.8 Macro USM MTF Chart
