How to Photograph the Mercury Transit

Every so often, the planet Mercury lines up perfectly between the Earth and the Sun. When it does, astronomers and photographers have a relatively rare chance to see and photograph the planet Mercury transiting across the Sun. Today (November 11, 2019) is one of those opportunities. In this article, I will cover some tips and techniques for photographing this year’s Mercury transit.

Although I have never photographed Mercury’s transit before (it was cloudy during the 2016 transit for me), I photographed the Venus transit in June of 2012. It was an incredible sight, especially since there won’t be another Venus transit until the year 2117! Luckily, a Mercury transit isn’t quite as rare. If you miss out this year, you’ll have another opportunity in November of 2032 (though our North American readers won’t have another chance until 2049).

1) When and Where

The Mercury transit takes place on November 11, 2019. The transit begins at about 12:35 PM GMT, and it ends around 8:04 PM GMT. In the Eastern time zone, that’s 8:35 AM to 4:04 PM.

In most of the Western hemisphere, the transit stretches from morning until afternoon. In the Eastern hemisphere, it spans the afternoon. To find the specific times in your time zone, you will need to convert from GMT.

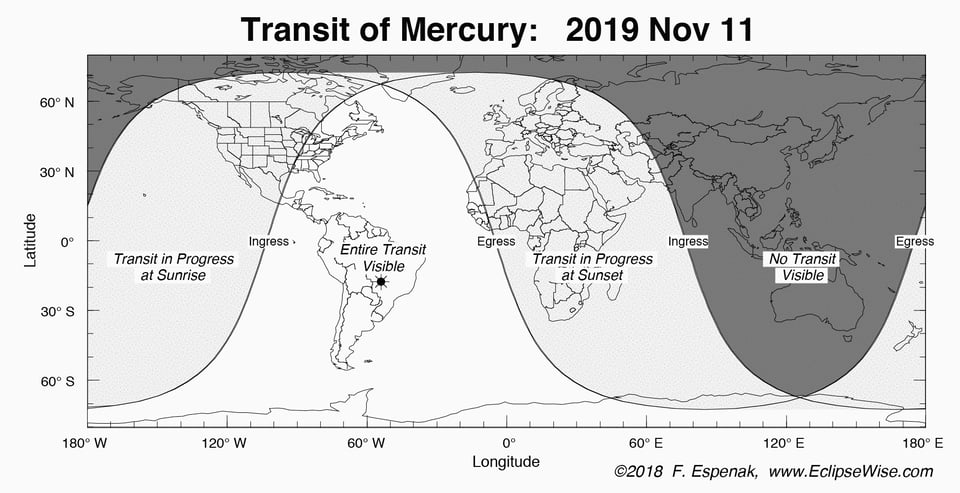

The 2019 Mercury transit will be visible in most of North America and Europe, as well as all of South America and Africa. Unfortunately, if you are in Australia or most of Asia, you won’t be able to see it this year. In some places, the transit is cut short by sunrise or sunset. Still, you should have more than enough time to set up for the best possible shots.

2) Filters

The most important part about your kit is the filter that you choose. You can’t photograph the Sun without a proper filter; otherwise, you may burn your camera’s sensor.

I strongly recommend using a solar foil filter made specifically for use with a telescope for visual observation; these will not damage your eyes or camera if used properly. One example is a black polymer filter that is only $20 on Amazon. If you buy it within the next couple days, it should arrive before Monday. This material is fairly flexible, and it it is easy to cut down to different sizes. Add some tape and cardboard, and you can build a filter that works with any lens.

DO NOT use a filter that you are not certain is made for this purpose.  Some filters that block sufficient visible light to make the sun appear dim do not block UV or infra-red light, and you can permanently damage your eyes or camera using them. This includes standard neutral density filters. Never look through the viewfinder without a specialized solar filter, and be very wary of using your camera in live-view even with a strong neutral density filter.

If it’s too late for you to purchase this type of filter online, you may consider trying to find something at a local store. It all depends upon where you live, but some cities have specialty astronomical shops that sell filters like this. Even number 14 welding glass works, assuming you can find a place that sells it.

3) Camera Equipment

Mercury is smaller than Venus and farther from Earth. While some people were able to see the Venus transit even without a telescope, Mercury is decidedly more difficult to photograph. This will prove especially true if there are pronounced sunspots during the transit, some of which may be the same size or shape as Mercury.

From a photographic standpoint, your goal is to get as many pixels as possible on the Sun. The best way to do this is with a supertelephoto lens. The Sun won’t fill your frame with a focal length less than about 2000mm, so feel free to use the longest lens you have. Anything longer than a 300mm equivalent should be enough to see Mercury, although ideally you would use something even longer. If you have a teleconverter, now’s the time for it. The same goes, of course, for an actual telescope with the ability to attach a camera.

In terms of the camera itself, the best ones for this task have a high pixel density. A modern crop-sensor DSLR will work well; so would a Nikon 1 camera with an F-mount adaptor, for example. The camera isn’t as important as the lens, though, so feel free to use whatever you have.

A tripod is almost a necessity, too. At such long focal lengths, the blur from handholding the camera will rob significant sharpness from your photographs. Also, the transit lasts so long that your arms will get tired very early from the weight of a supertelephoto.

One advanced piece of equipment you may consider is an astro tracking head. These specialized tripod heads follow the motion of the sun across the sky (and other celestial bodies like stars and the moon), making for a painless setup to photograph the transit. You don’t need one and can still photograph the sun using a regular tripod head, but it will make your life easier.

And, at the end of the day, you can still make do if you don’t own any of this equipment. A 55-200mm zoom on a crop-sensor camera, for example, will show enough detail for you to see Mercury, albeit not very well. Or, you can even use a smartphone to take pictures through a telescope if you don’t have a DSLR. The quality won’t be very good, but you still may be able to see the transit.

You also could consider renting a long lens for a couple days. The transit will last for seven hours in some parts of the world, which might give you time to visit a local rental house if you hadn’t prepared beforehand! If you rent a lens, get the longest one you can. The Nikon 200-500mm f/5.6 (review) is a good, relatively inexpensive option. So are the similar Sigma and Tamron lenses.

4) Camera Settings

Luckily, the Sun is very bright. Even with a strong solar filter, you don’t need to worry about using extreme camera settings. I recommend shooting at ISO 100, an aperture from f/5.6 to f/11, and a shutter speed that gives you the proper exposure (probably around 1/1000 second).

If you’re handholding the camera (not recommended), make sure to use the reciprocal rule to find the right shutter speed. You may need to increase your ISO for handheld shots. Don’t worry about this for tripod-based shots, unless the Sun is moving so quickly that it is beginning to blur in your photos even at 1/1000 second. If that is the case, use a quicker shutter speed and a higher ISO. (This is unlikely unless you are using an extreme telephoto and an unusually strong solar filter – and it’s irrelevant if you’re using an astro tracking head to track the sun’s movement.)

Since Mercury is so small compared to the Sun, it may not be possible to distinguish it from a sunspot in a single image. To fix this, you may choose to take several photographs and layer them in Photoshop after the transit. Align the images, then blend them so that Mercury appears several times in succession across the Sun. The photograph below shows what I mean:

Or, you may consider doing a time-lapse video instead. If you want your audience to know which dot is Mercury, this may be your best bet. If you do, though, an astro tracking head is almost a necessity.

5) Safety

It should go without saying, but the Sun can cause extreme eye damage even if you only look at it for a brief moment. This effect is amplified tremendously if you are looking through a supertelephoto lens. You must use a solar filter while taking pictures. I also recommend that you avoid looking through your viewfinder, even if your lens has a solar filter. Use live-view instead.

Even your equipment is susceptible to damage from the Sun. If you forget to use a solar filter – particularly if you shoot in live-view mode – you run a high risk of burning your camera’s sensor. However, if you use a solar filter properly, there is no significant risk to your sensor, even in live-view.

If you’d prefer not to risk your eyes or your equipment, though, you also have the option of viewing the event live online from NASA TV. Although it’s always fun to see something like this in person, NASA’s coverage will have some interviews and other interesting content that’s worth checking out.

The Mercury transit is a fun and beautiful astronomical event, and this is your only opportunity to see it for a while. Although it isn’t necessarily easy to photograph, I recommend that you give it a try. If you are careful to avoid staring at the Sun, your photographs will be well worth the effort.
